Analyzing End-to-End Connectivity
Step 7 Check the Report errors for check box to see a report of zone and device errors.
Step 8 Click Analyze.
The End to End Connectivity Analysis window displays the selected endpoints including the switch to
which each is attached, and the source and target ports used to connect it, as shown in
Figure 66-3.

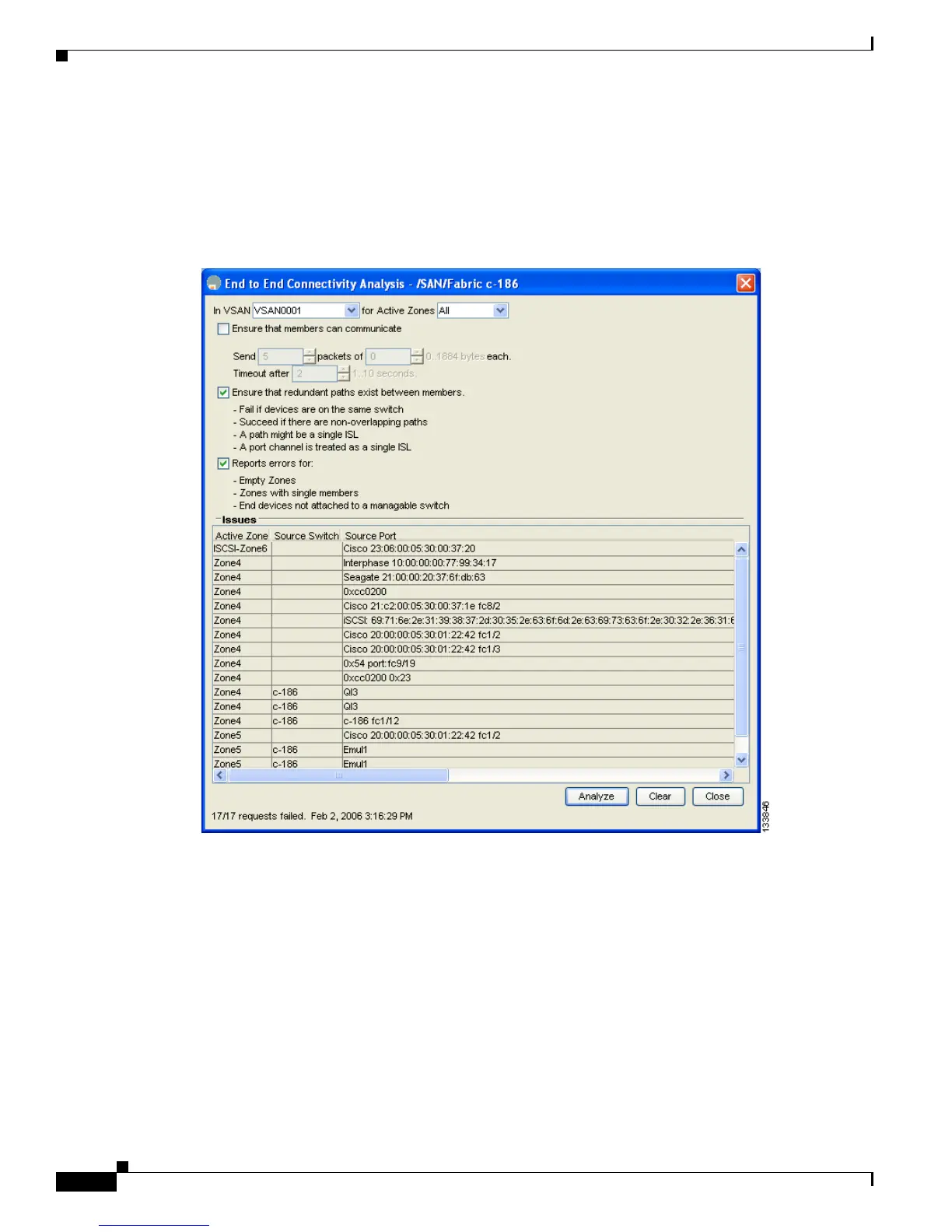

Figure 66-3 Results of an End-to-End Connectivity Analysis
The output shows all the requests that have failed. The possible descriptions are:
• Ignoring empty zone—No requests are issued for this zone.
• Ignoring zone with single member—No requests are issued for this zone.
• Source/Target are unknown—No name server entries exist for the ports or we have not discovered
the port during discovery.
• Both devices are on the same switch.
• No paths exist between the two devices.
• VSAN does not have an active zone set and the default zone is denied.
• Average time micro secs—The latency value was more than the threshold supplied.
Step 9 Click Clear to remove the contents of the window.
