Send documentation comments to mdsfeedback-doc@cisco.com
8-5
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 8 Performance Manager
Performance Manager Architecture

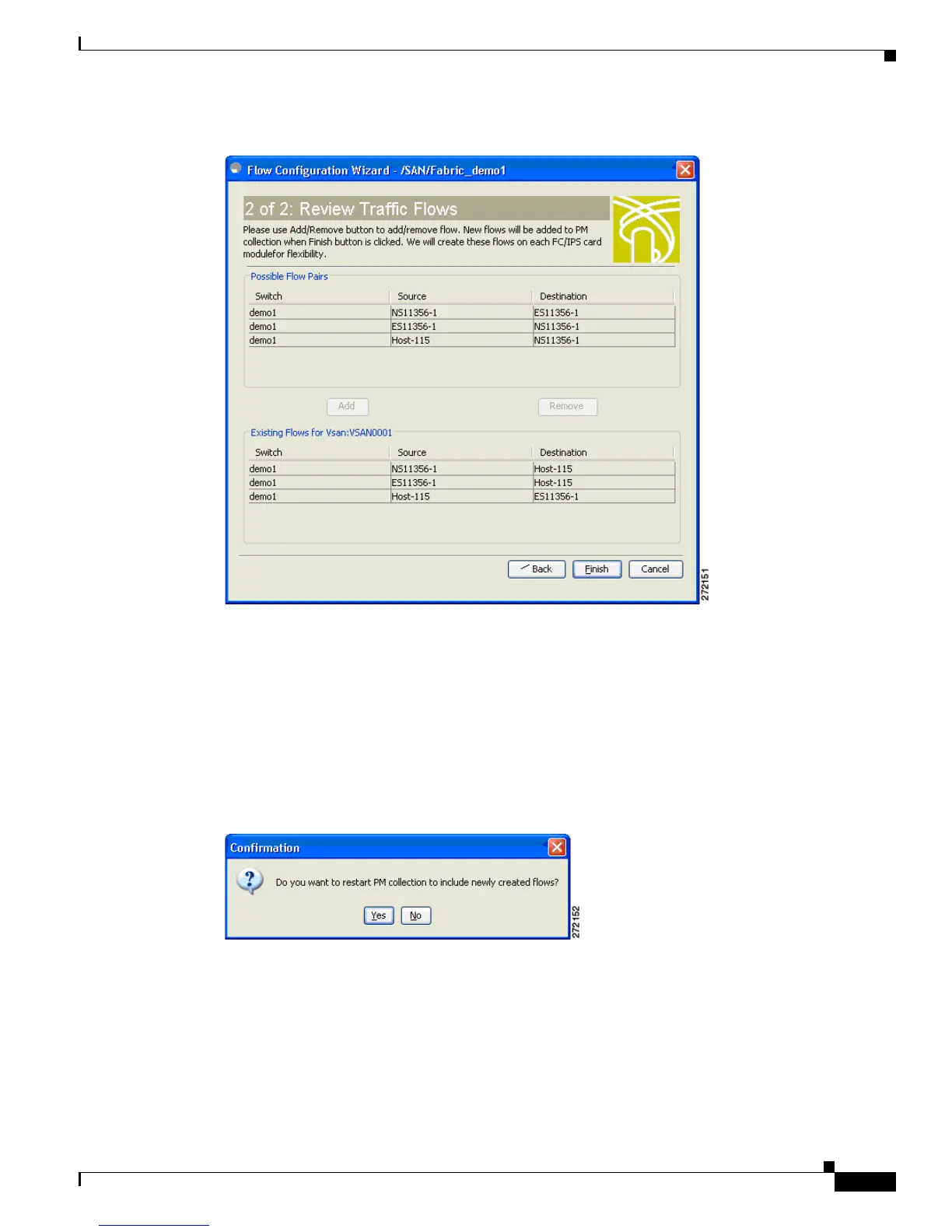

Figure 8-3 Review Traffic Flows Dialog Box
Step 7 Choose items in the Possible Flow Pairs area.
The Review Traffic Flows window displays all VSAN flow pairs in the Exisitng Flows for Vsan area.
Step 8 Click Add to create the selected flow.
Step 9 Choose items in the Existing Flows for Vsan area.
Step 10 Click Remove to remove the selected flow.
Step 11 Click Finish to restart the Performance Manager collection.
You see the Confirmation dialog box as shown in Figure 8-4.
Figure 8-4 Confirmation Dialog Box
To verify the newly created flow, choose Physical Attributes > End Devices > Flow Statistics. The
newly created flows are displayed.
