Send documentation comments to mdsfeedback-doc@cisco.com

14-7

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 14 Configuring FlexAttach Virtual pWWN

Configuring FlexAttach Virtual pWWN

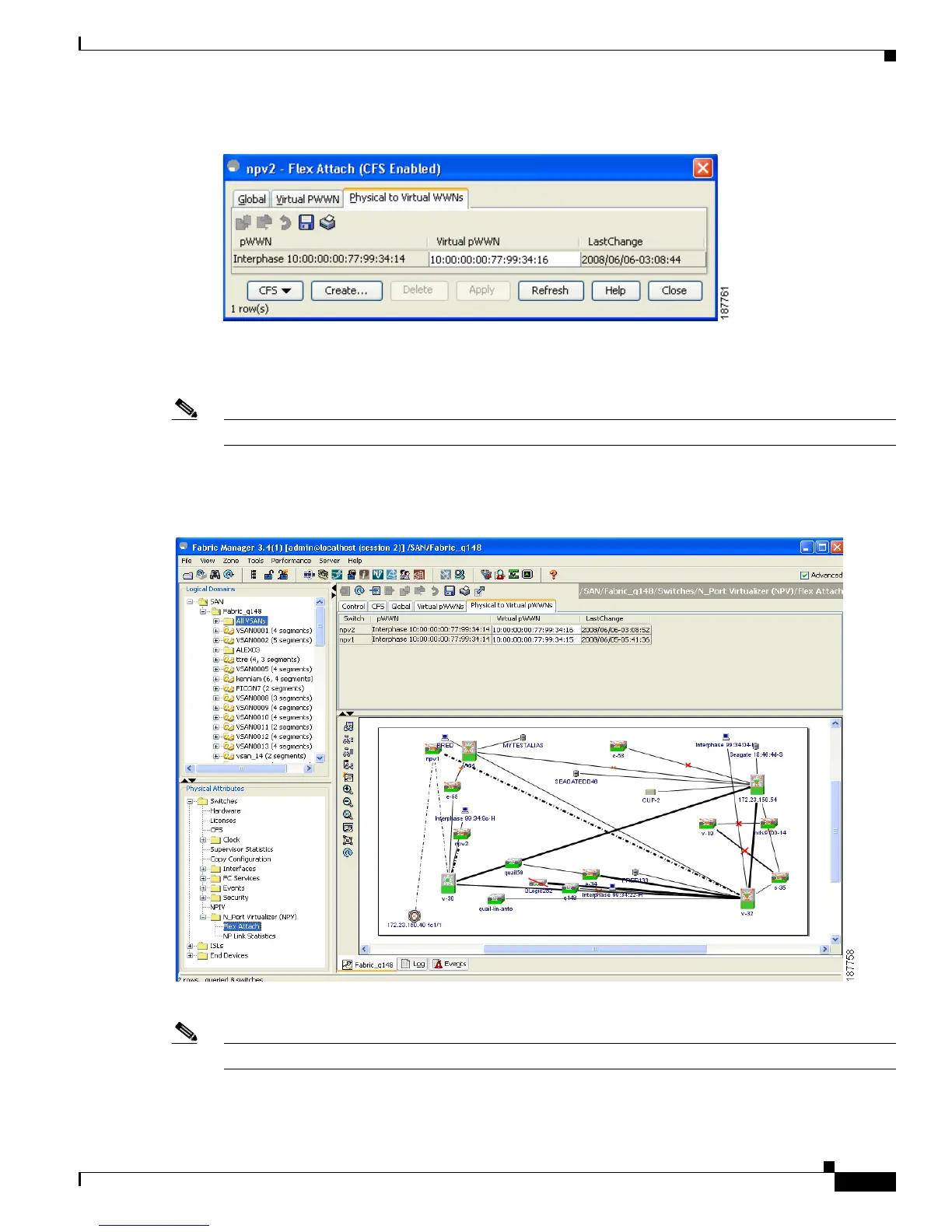

Figure 14-6 Physical to Virtual WWNs Tab View in Device Manager

The LastChange field displays the time when the virtual pWWN was changed.

Note The interface must be in a shut state and the specified Virtual pWWN should not be logged in.

The Figure 14-7 shows the Physical to Virtual pWWNs tab view in the Fabric Manager.

Figure 14-7 Physical to Virtual pWWNs Tab View in Fabric Manager

Note The specified virtual pWWN and the real pWWN must not be logged in.
