Chapter 22 Configuring Generation 2 and Generation 3 Switching Modules
Displaying SFP Diagnostic Information
Step 2 Right-click the selected ports, select Configure, and click the Diagnostics tab.
You see the FC Interfaces dialog box shown in Figure 22-18.

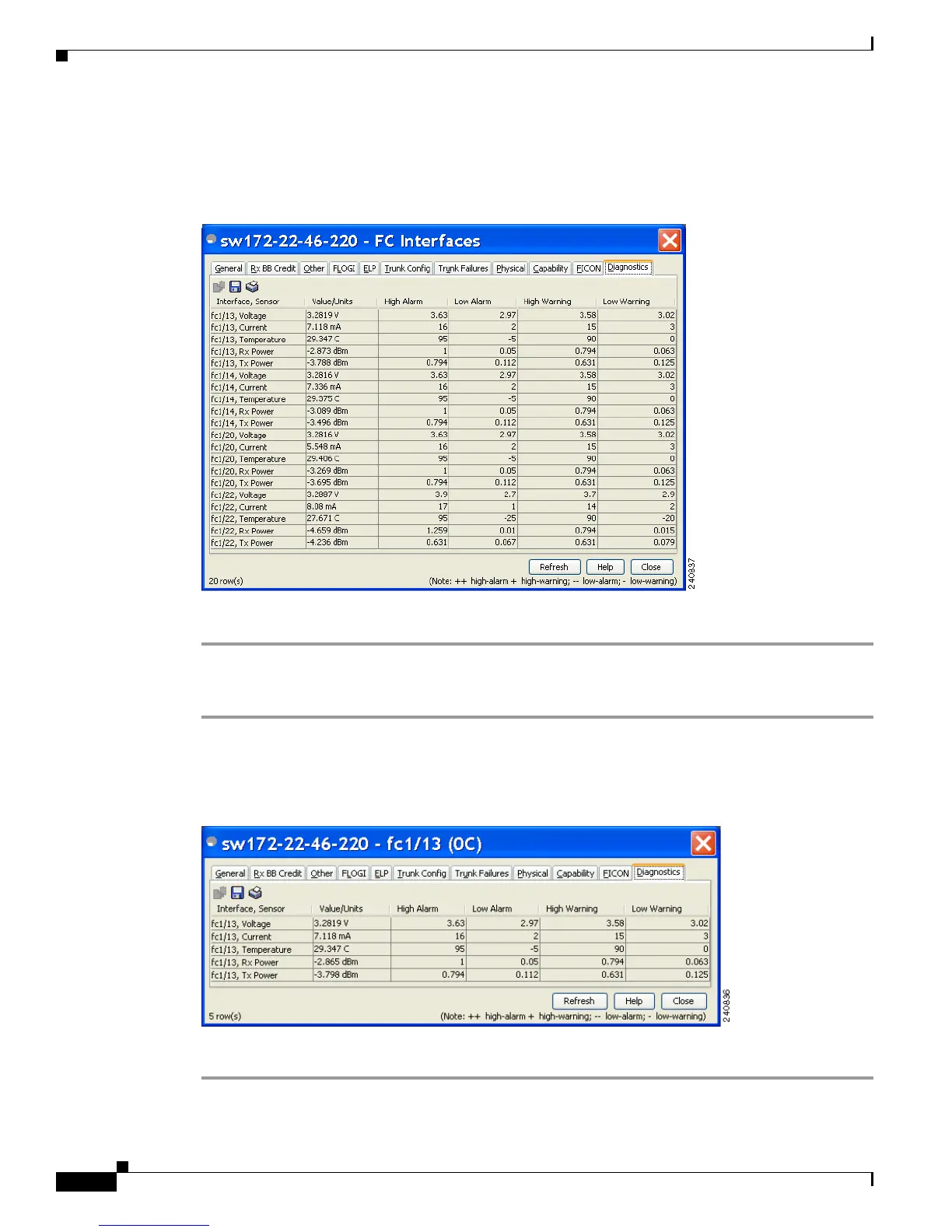

Figure 22-18 FC Interfaces Dialog Box
Step 3
Click Refresh to view the latest diagnostic information.
To view diagnostic information for a single port using Device Manager, follow these steps:
Step 1 Right-click a port, select Configure, and click the Diagnostics tab.
You see the port licensing options for the selected port shown in Figure 22-19.
Figure 22-19 Diagnostics Tab for Selected Port
Step 2
Click Refresh to view the latest diagnostic information.
