Send documentation comments to mdsfeedback-doc@cisco.com
25-4
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 25 Configuring Domain Parameters
Fibre Channel Domains
To restart the fabric disruptively or nondisruptively using Fabric Manager, follow these steps:
Step 1 Expand Fabricxx > VSANxx and then select Domain Manager in the Logical Domains pane for the
fabric and VSAN that you want to restart.
You see the Running tab configuration of the domain in the Information pane.

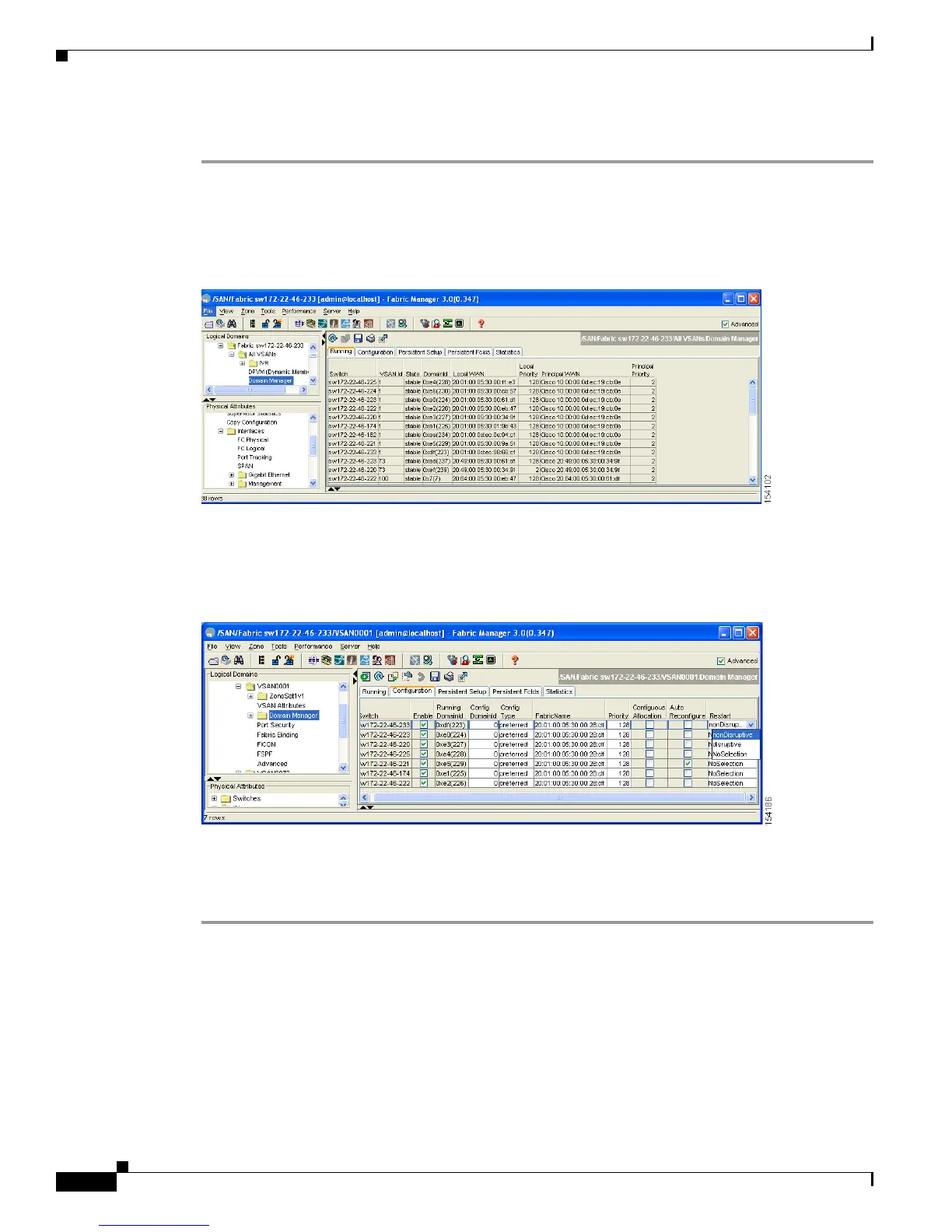

Figure 25-2 Running Domain Configuration
Step 2
Click the Configuration tab.
You see the switch configuration shown in Figure 25-3.
Figure 25-3 Configuring Domains
Step 3
Set the Restart drop-down menu to disruptive or nonDisruptive for any switch in the fabric that you
want to restart the fcdomain.
Step 4 Click the Apply Changes icon to issue this fcdomain restart.
