Chapter 29 Configuring Inter-VSAN Routing
About the IVR Zone Wizard
Figure 29-2 IVR Zone Wizard Icon
To migrate to IVR NAT mode click Yes , otherwise click No. You see the IVR Zone Wizard dialog box.
Step 2 Select the VSANs that will participate in IVR in the fabric. Click Next.
You see the Select End Devices dialog box shown in Figure 29-3.

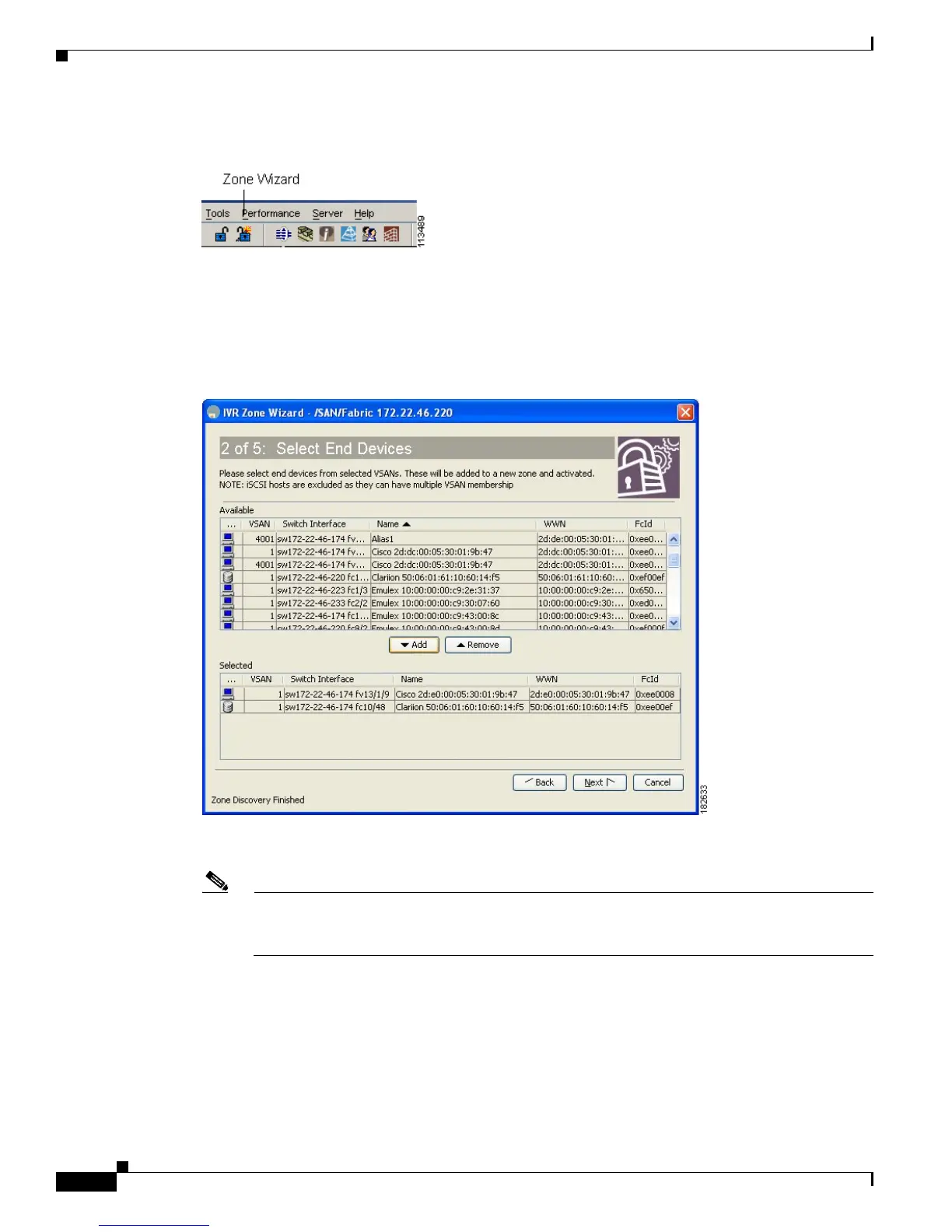

Figure 29-3 Select End Devices Dialog Box
Step 3
Select the end devices that you want to communicate over IVR.
Note If you are not using IVR NAT, Fabric Manager may display an error message if all the switches
participating in IVR do not have unique domain IDs. You must reconfigure those switches before
configuring IVR. Go to Step 5.
Step 4 If you enable IVR NAT, verify switches that Fabric Manager will enable with IVR NAT, CFS for IVR,
and IVR topology in auto mode.
Step 5 Enter the VSAN ID of the VSAN you want to use as the transit VSAN between the VSANs selected for
the IVR zone. Click Next.
Step 6 Optionally, configure a unique AFID for switches in the fabric that have non-unique VSAN IDs in the
Select AFID dialog box.
