Send documentation comments to mdsfeedback-doc@cisco.com
30-23
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 30 Configuring and Managing Zones
Zone Sets
Step 1 Choose Zone > Edit Local Full Zone Database.
You see the Select VSAN dialog box.
Step 2 Select a VSAN and click OK.
You see the Edit Local Full Zone Database dialog box for the selected VSAN as shown in Figure 30-25.

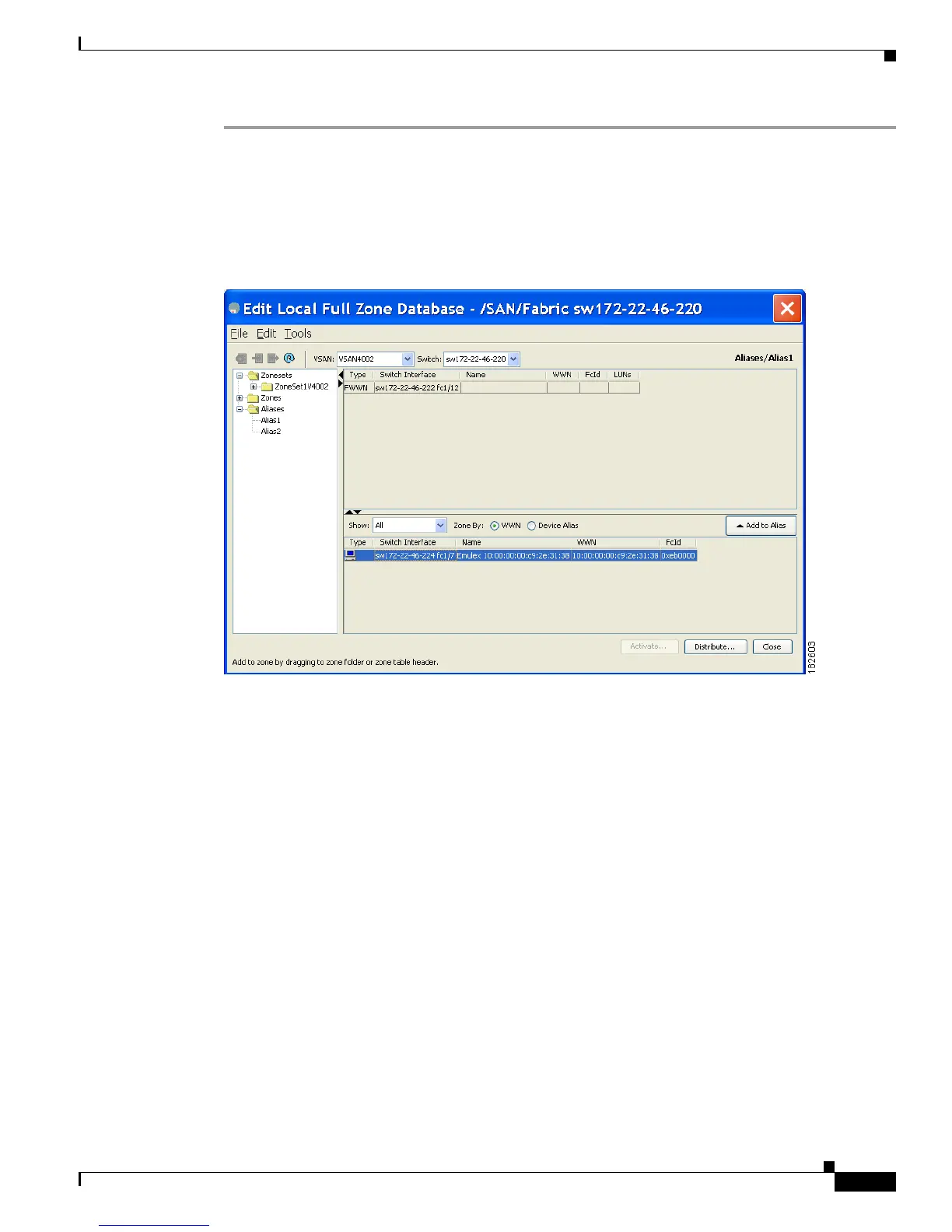

Figure 30-25 Edit Local Full Zone Database Dialog Box
Step 3 Select the member(s) you want to add from the Fabric pane (see Figure 30-25) and click Add to Alias
or click the alias where you want to add members and click the Insert icon.
You see the Add Member to Alias dialog box shown in Figure 30-26.
