Send documentation comments to mdsfeedback-doc@cisco.com
42-7
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 42 Configuring IPv4 and IPv6 Access Control Lists
Creating IPv4-ACLs or IPv6-ACLs with the IP-ACL Wizard

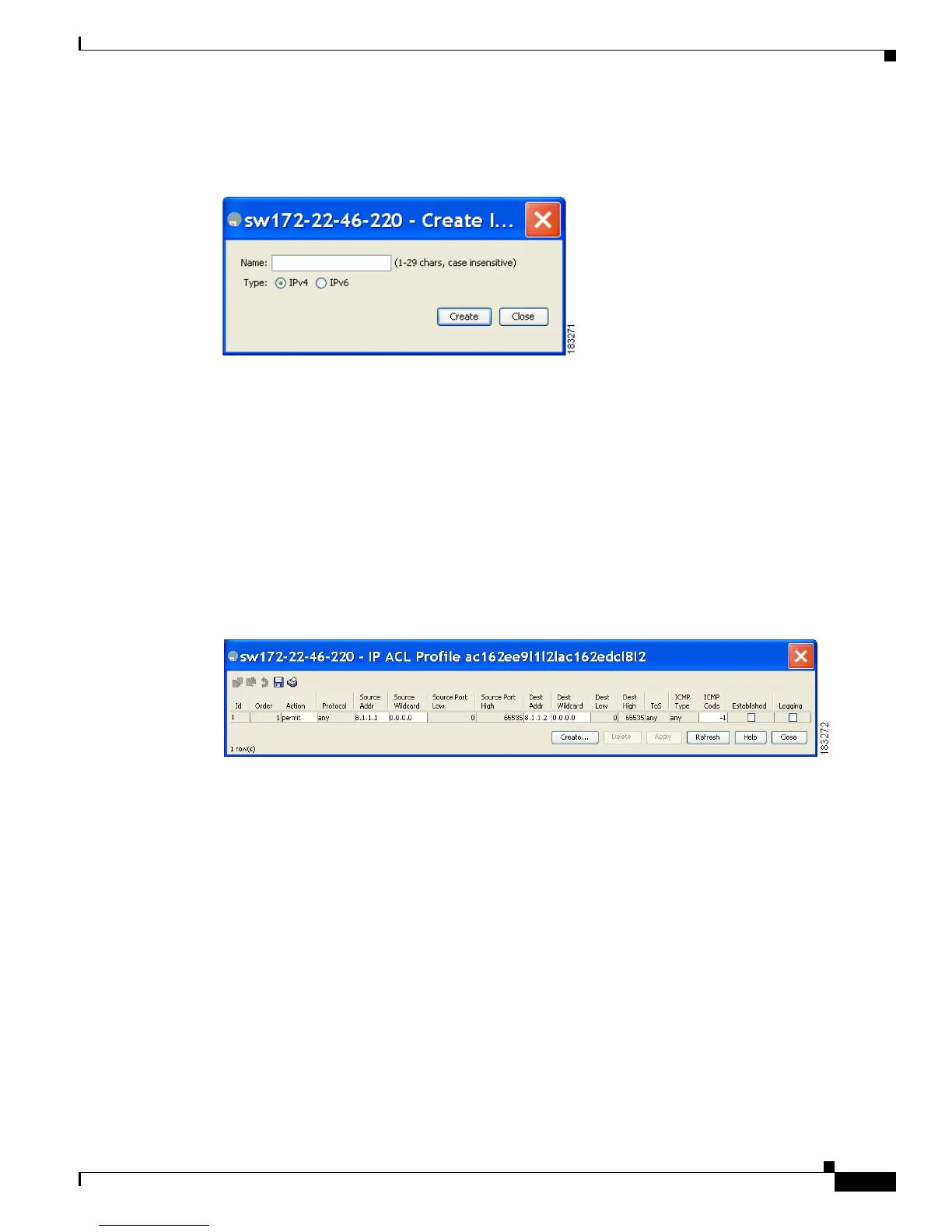

You see the Create IP ACL Profiles dialog box shown in Figure 42-3.
Figure 42-3 Create IP ACL Profiles Dialog Box
Step 3 Enter an IP-ACL profile name.
Step 4 Click Create and then click Close.
This creates a new IP-ACL profile.
Step 5 Click the IP-ACL you created and click Rules.
After you create an IPv4-ACL or an IPv6-ACL, you can add subsequent IP filters at the end of the
IPv4-ACL or the IPv6-ACL if you are using Device Manager. Fabric Manager allows you to reorder
existing rules for a profile. You cannot insert filters in the middle of an IPv4-ACL or an IPv6-ACL. Each
configured entry is automatically added to the end of a IPv4-ACL or an IPv6-ACL.
You see the IP ACL dialog box shown in Figure 42-4.
Figure 42-4 IP ACL Profile Dialog Box
Step 6 Click Create to create an IP filter.
You see the Create IP Filter dialog box shown in Figure 42-5.
