Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 43 Configuring Certificate Authorities and Digital Certificates

Example Configurations

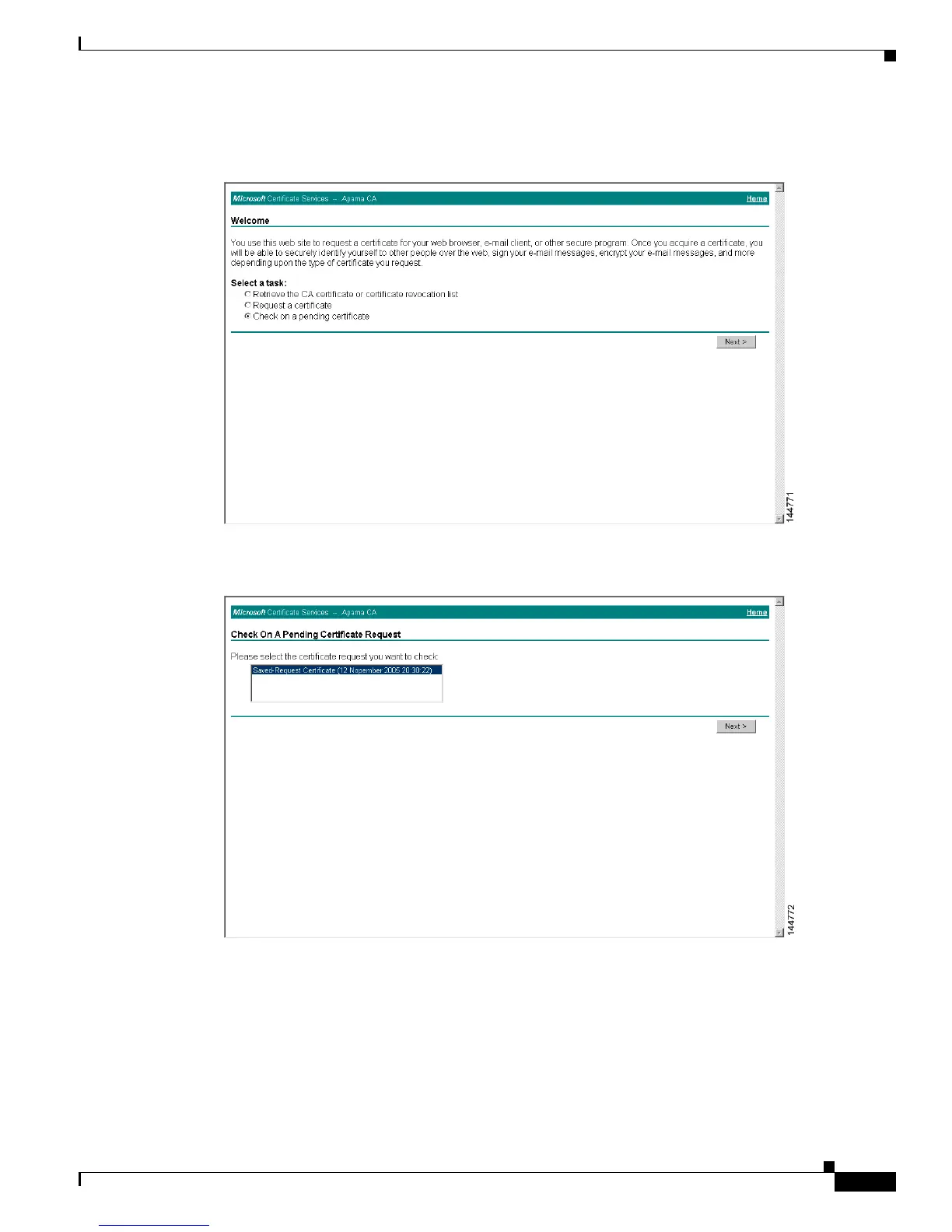

Step 7 Select the Check on a pending certificate radio button on the Microsoft Certificate Services web

interface and click Next.

Step 8 Select the certificate request you want to check and click Next.
