Send documentation comments to mdsfeedback-doc@cisco.com

43-29

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 43 Configuring Certificate Authorities and Digital Certificates

Example Configurations

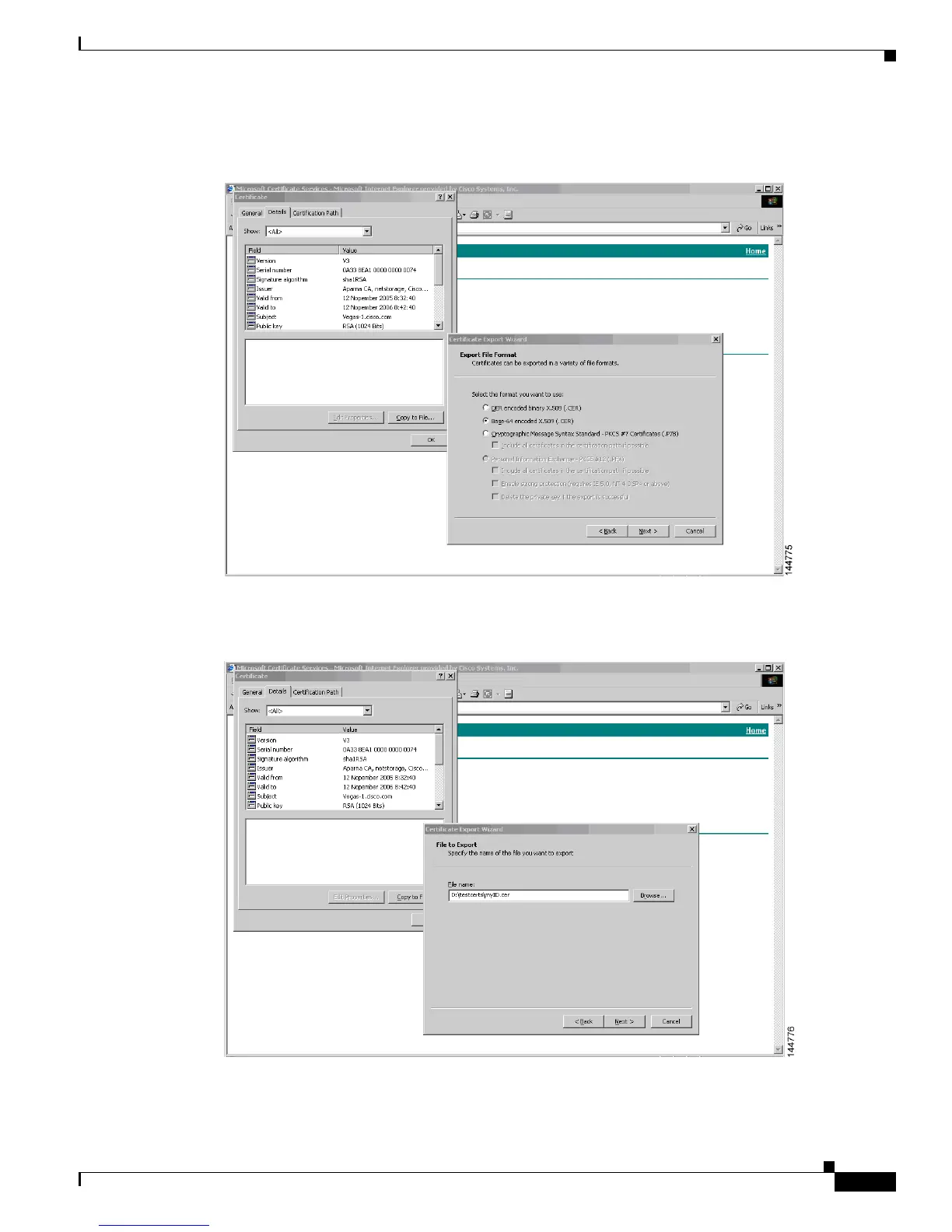

Step 11 Click the Details tab on the Certificate dialog and click the Copy to File button. Select the Base-64

encoded X.509 (.CER) radio button on the Certificate Export Wizard dialog box and click Next.

Step 12 Enter the destination file name in the File name: text box on the Certificate Export Wizard dialog box,

then click Next.

Step 13 Click Finish.
