Send documentation comments to mdsfeedback-doc@cisco.com
44-19
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 44 Configuring IPsec Network Security
Optional IKE Parameter Configuration
You see the IKE configuration in the Information pane (see Figure 44-13).

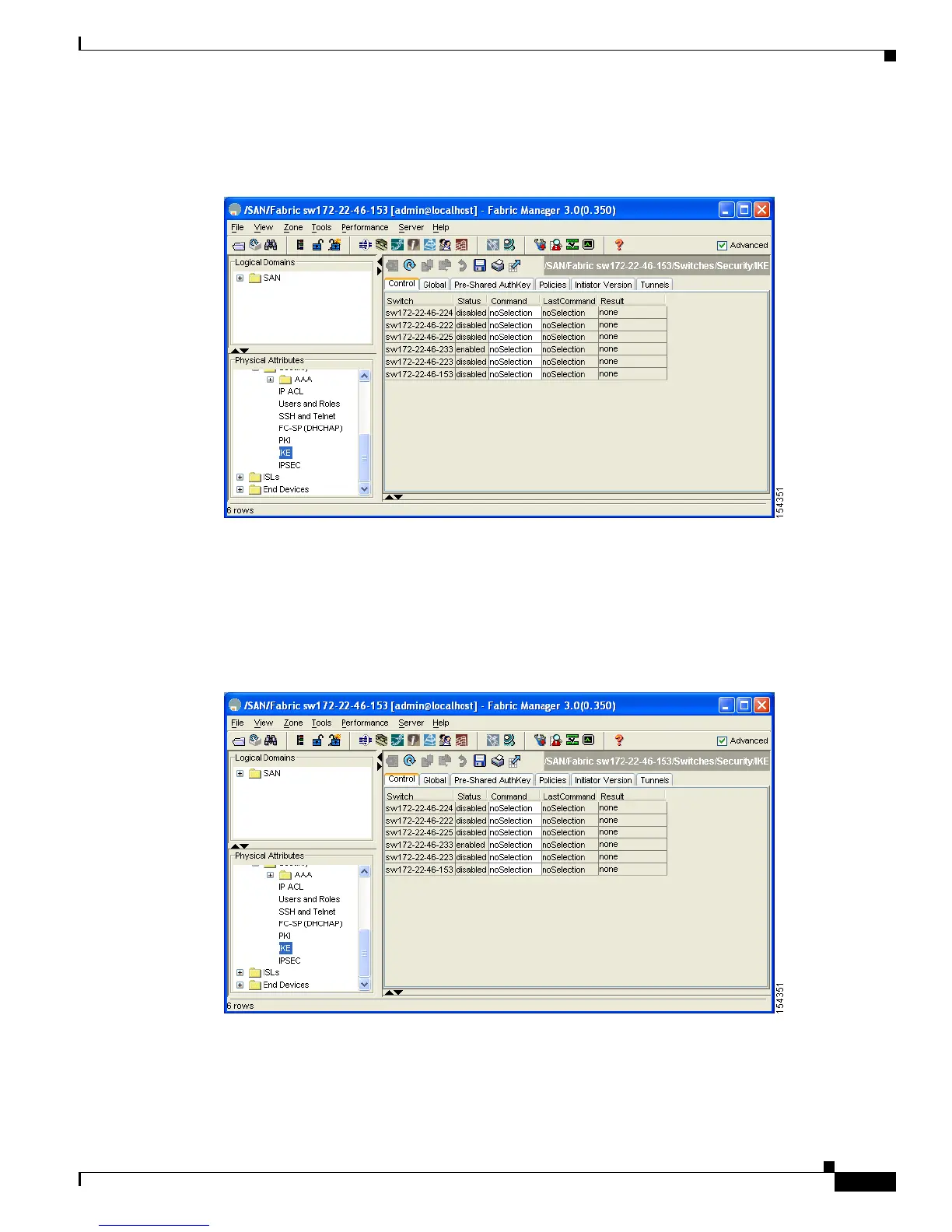

Figure 44-13 IKE Configuration
Step 2 Select the Initiator Version tab.
You see the existing initiator versions for the peers in the Information pane.
Step 3 Click Create Row to create an initiator version.
You see the Create Initiator Version dialog box shown in Figure 44-14.
Figure 44-14 Create Initiator Version Dialog Box
Step 4 Select the Switches for the remote peer for which this IKE protocol initiator is configured.
Step 5 Enter the IP address of the remote peer.
IKEv1 represents the IKE protocol version used when connecting to a remote peer.
