44-27
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 44 Configuring IPsec Network Security
Crypto IPv4-ACLs

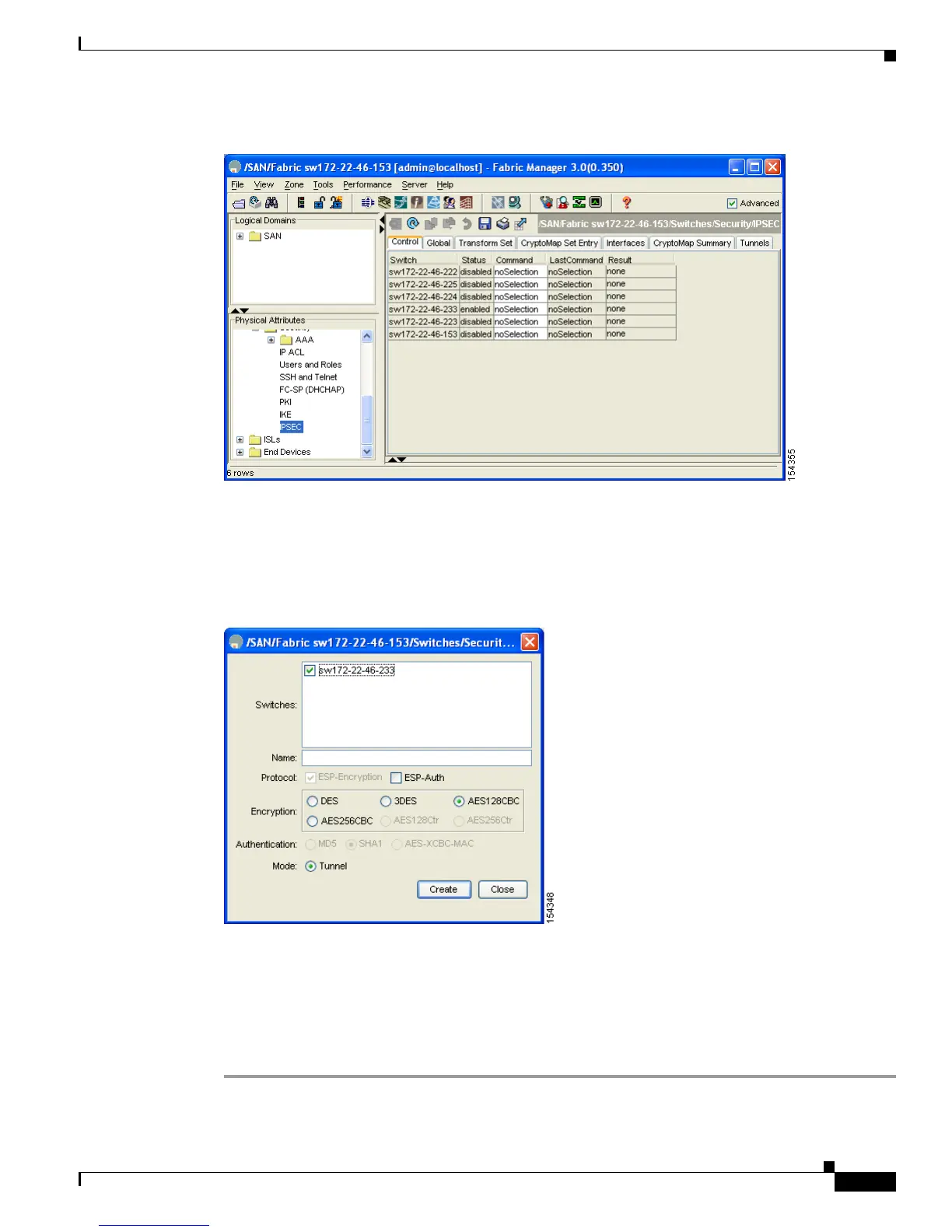

Figure 44-19 IPsec Configuration
Step 2 Click the Transform Set tab in the Information pane.
Step 3 Click Create Row.
You see the Create IPSEC dialog box shown in Figure 44-20.
Figure 44-20 Create IPSEC
Step 4 Select the switches that you want to create a transform set for in the Create Transform Set dialog box.
Step 5 Assign a name and protocol for the transform set.
Step 6 Select the encryption and authentication algorithm. See Table 44-2 to verify the allowed transform
combinations.
Step 7 Click Create to create the transform set or you click Close.
