5-3

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 5 Fabric Manager Client

Launching Fabric Manager Client in Cisco SAN-OS Release 3.2(1) and Later

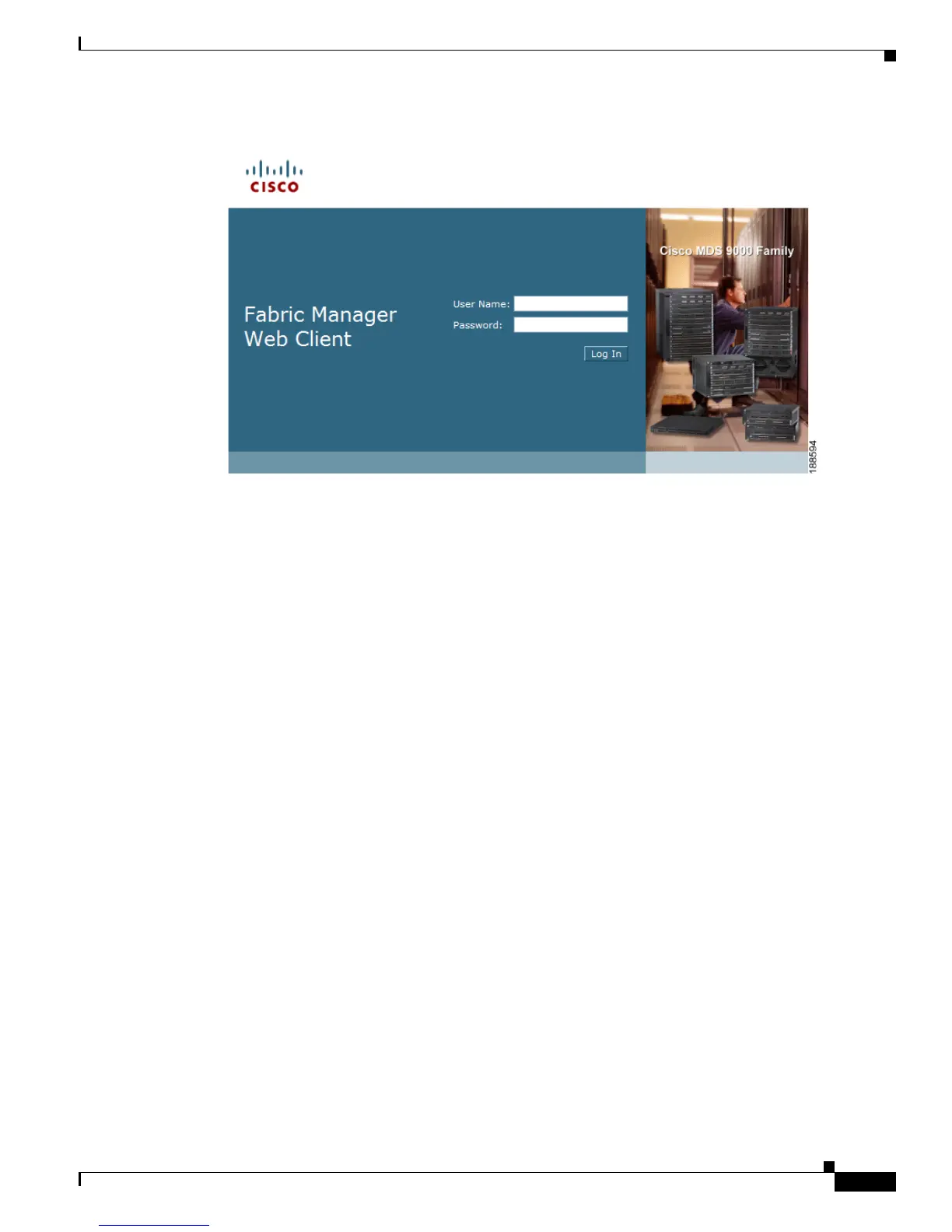

Figure 5-1 Fabric Manager Web Server Login Dialog Box

Step 2 Enter your user name and password and click Login.

You see the Fabric Manager Web Server Summary page.

Step 3 Click the Download link in the upper right corner of the page.

You see the Download page for Fabric Manager and Device Manager (see Figure 5-2).
