15-9
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 15 Software Images
Using the Software Install Wizard

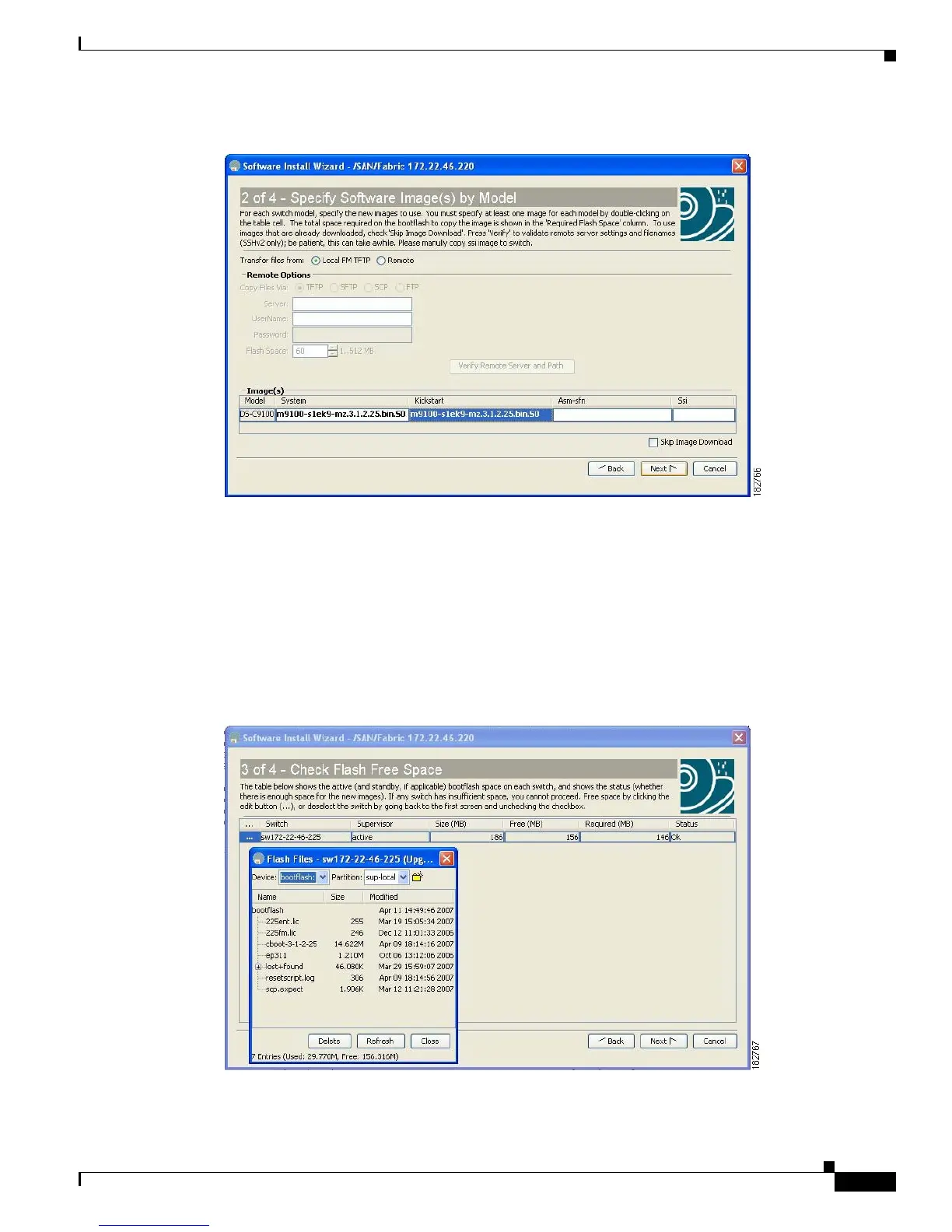

Figure 15-4 Specify Software Image(s) by Model Dialog Box
Step 5 Click the row under the System, Kickstart, ASM-SFN, or SSI columns to enter image URIs. You must
specify at least one image for each switch to proceed.
Step 6 Click Next.
You see the Check Flash Free Space dialog box (see Figure 15-5). This dialog box shows the active (and
standby, if applicable) bootflash space on each switch, and shows the status (whether there is enough
space for the new images). If any switch has insufficient space, you cannot proceed. Deselect the switch
without enough bootflash by going back to the first screen and unchecking the check box for that switch.
Figure 15-5 Check Flash Free Space Dialog Box
Step 7
Click Next.
