Send documentation comments to mdsfeedback-doc@cisco.com

21-15

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 21 Configuring N Port Virtualization

Configuring NPV

Step 2 Select the NPV devices as shown in Figure 21-11.

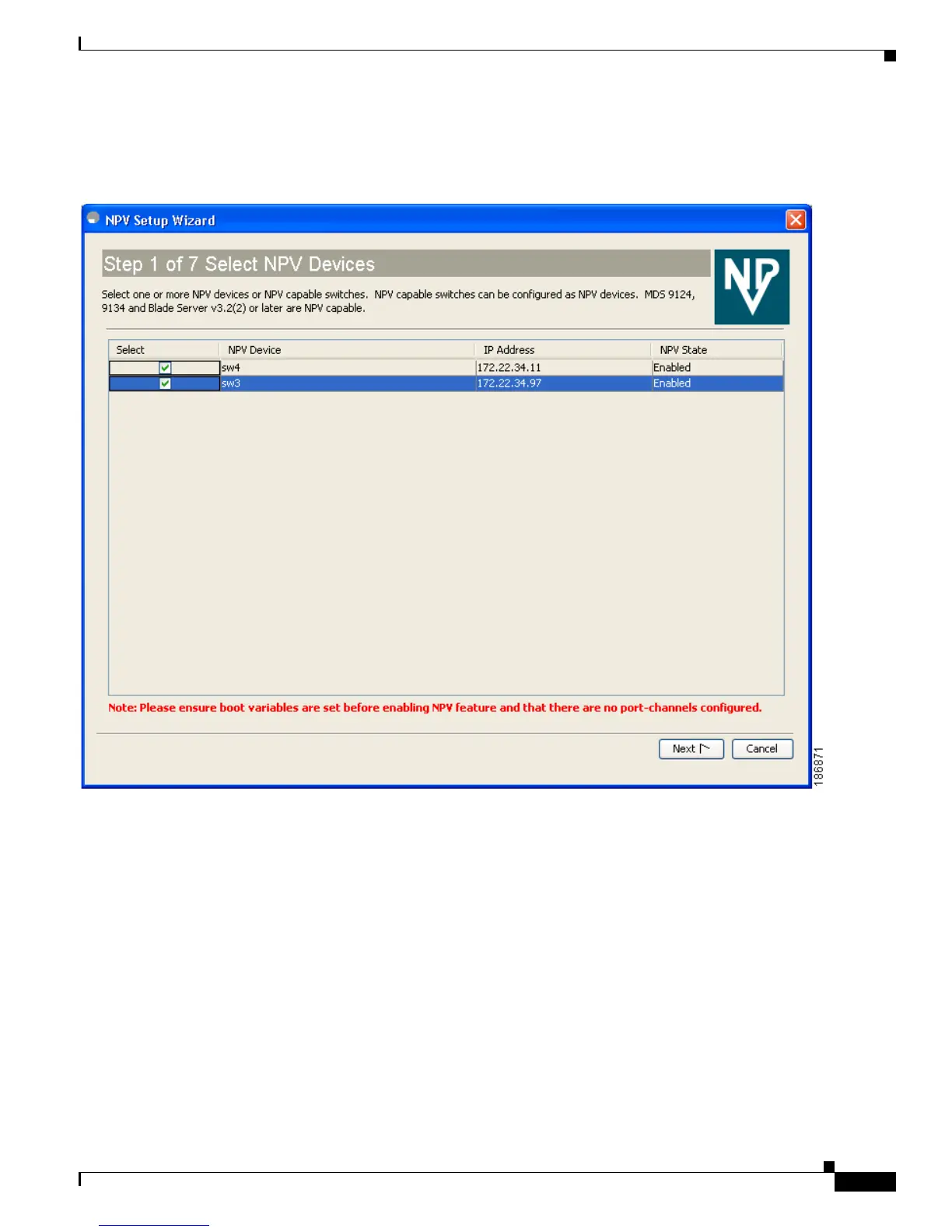

Figure 21-11 Selecting the NPV Devices

A table lists all the available NPV-capable switches including the switches on which NPV is not yet

enabled. Check the check boxes to select the required NPV devices. On devices that are not NPV

enabled, this wizard will enable NPV on the devices in the final step.
