21-17

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 21 Configuring N Port Virtualization

Configuring NPV

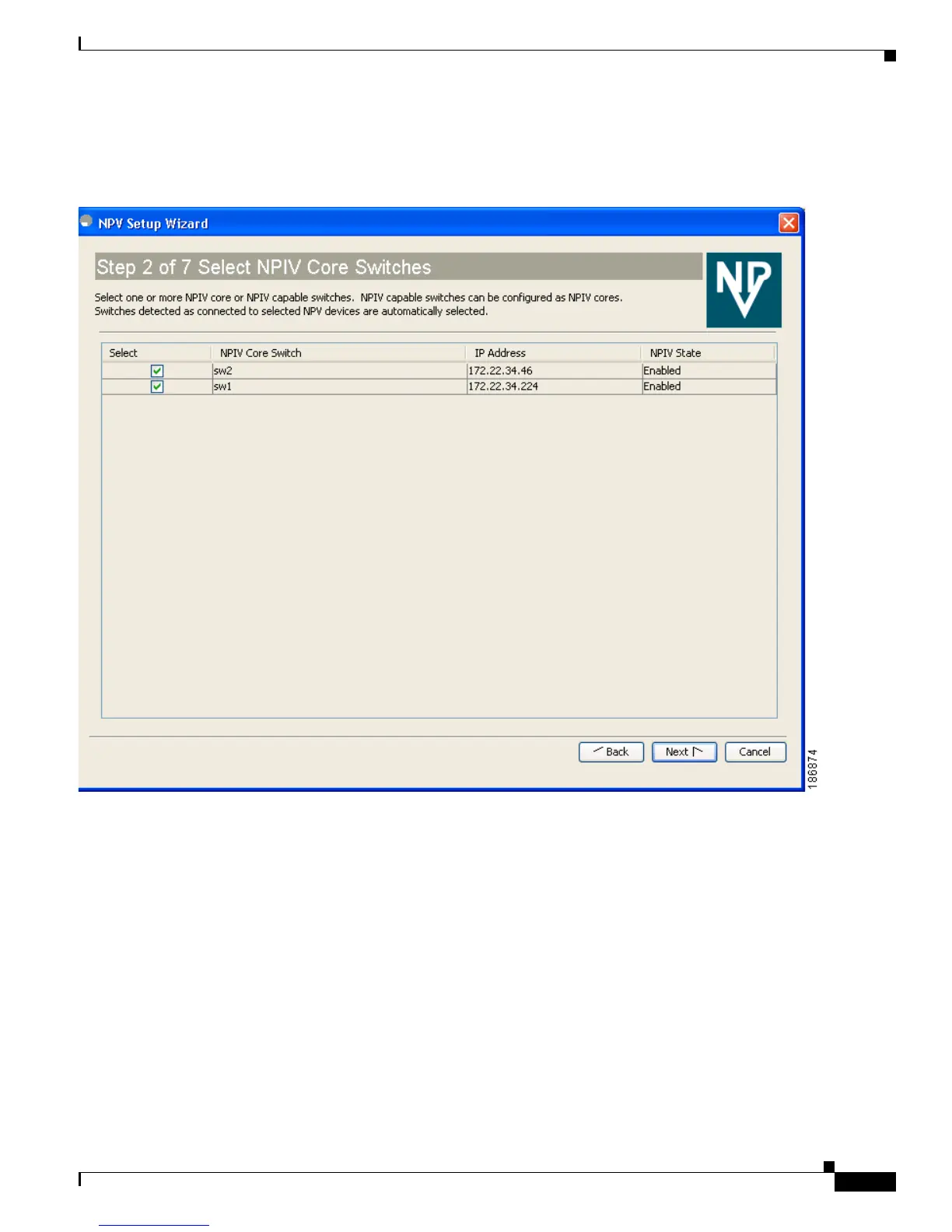

Step 3 Select the NPIV core switches as shown in Figure 21-13.

Figure 21-13 Selecting the NPIV Core Switches

Check the check boxes to select the required NPIV core switches. The table lists all the available NPIV

core switches including the core switches that have not yet enabled the NPIV feature. The NPIV core

switches which are not NPIV enabled, this wizard will enable NPIV on them in the final step.
