Send documentation comments to mdsfeedback-doc@cisco.com

23-12

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 23 Configuring PortChannels

PortChannel Configuration

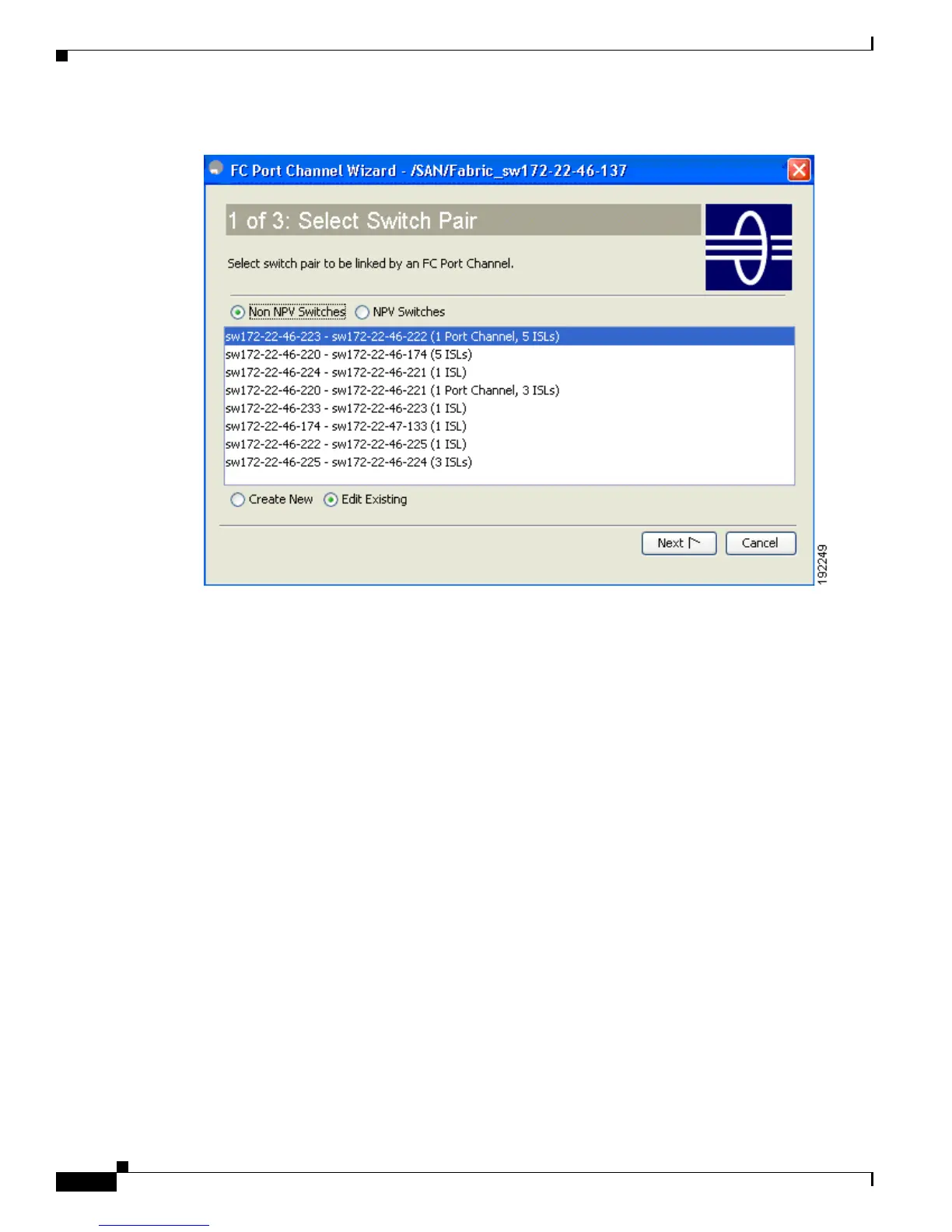

Figure 23-9 Select Switch Pairs

Step 3

Click Next.

Step 4 Select the ISLs. Figure 23-10 shows a list of the ISLs.
