Chapter 29 Configuring Inter-VSAN Routing
IVR Zones and IVR Zone Sets

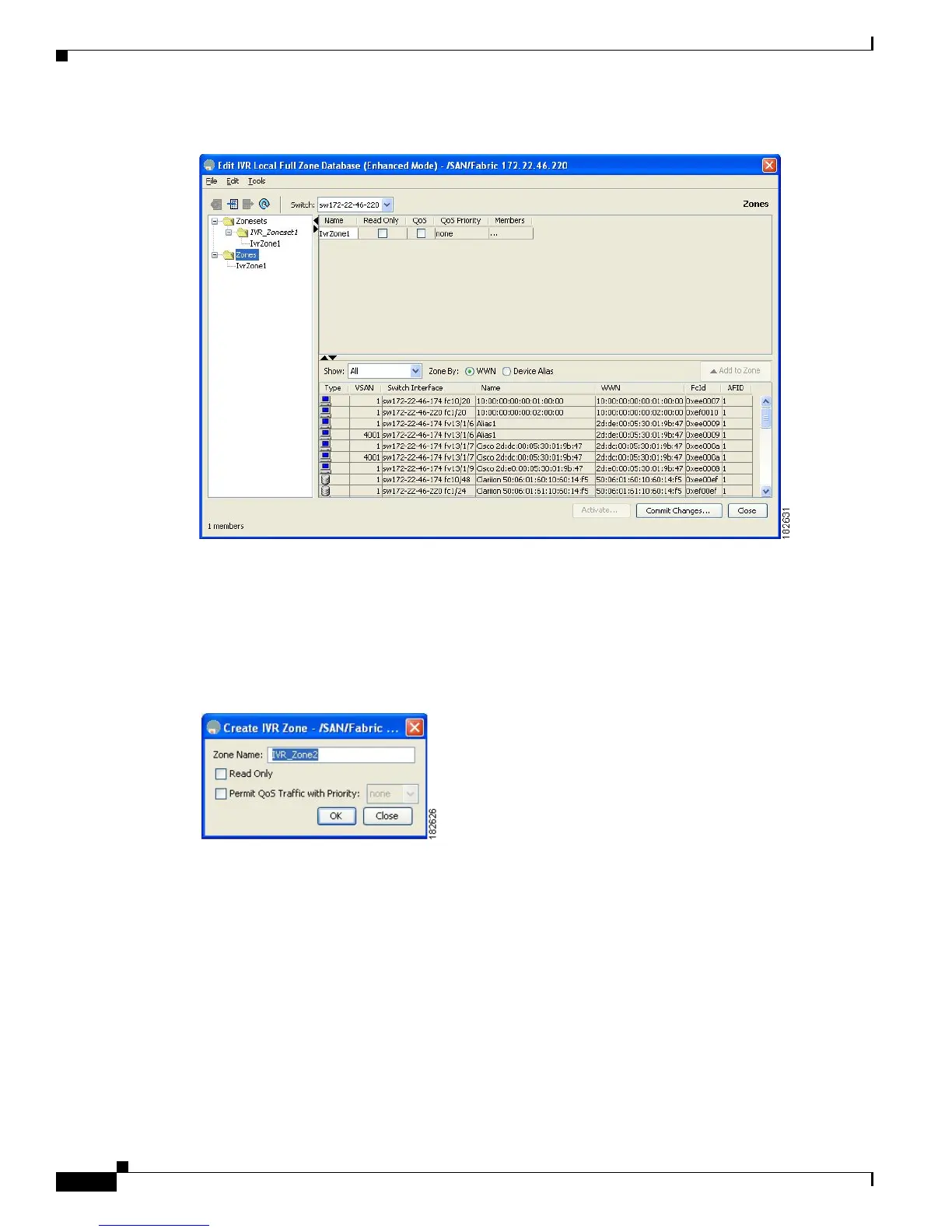

Figure 29-15 Edit IVR Local Full Zone Database Dialog Box
If you want to view zone membership information, right-click in the Members column, and then click
Show Details for the current row or all rows from the pop-up menu.
Step 2 Click Zones in the left pane and click the Insert icon to create a zone.
You see the Create IVR Zone dialog box shown in Figure 29-16.
Figure 29-16 Create IVR Zone Dialog Box
Step 3
Enter an IVR zone name.
Step 4 Check one of the following check boxes:
a. Read Only—The zone permits read and denies write.
b. Permit QoS traffic with Priority—You set the priority from the drop-down menu.
Step 5 Click OK to create the IVR zone.
Step 6 To add members to this zone, select the members you want to add from the Fabric pane (see
Figure 29-17) and click Add to Zone.
