Chapter 30 Configuring and Managing Zones
About Zoning

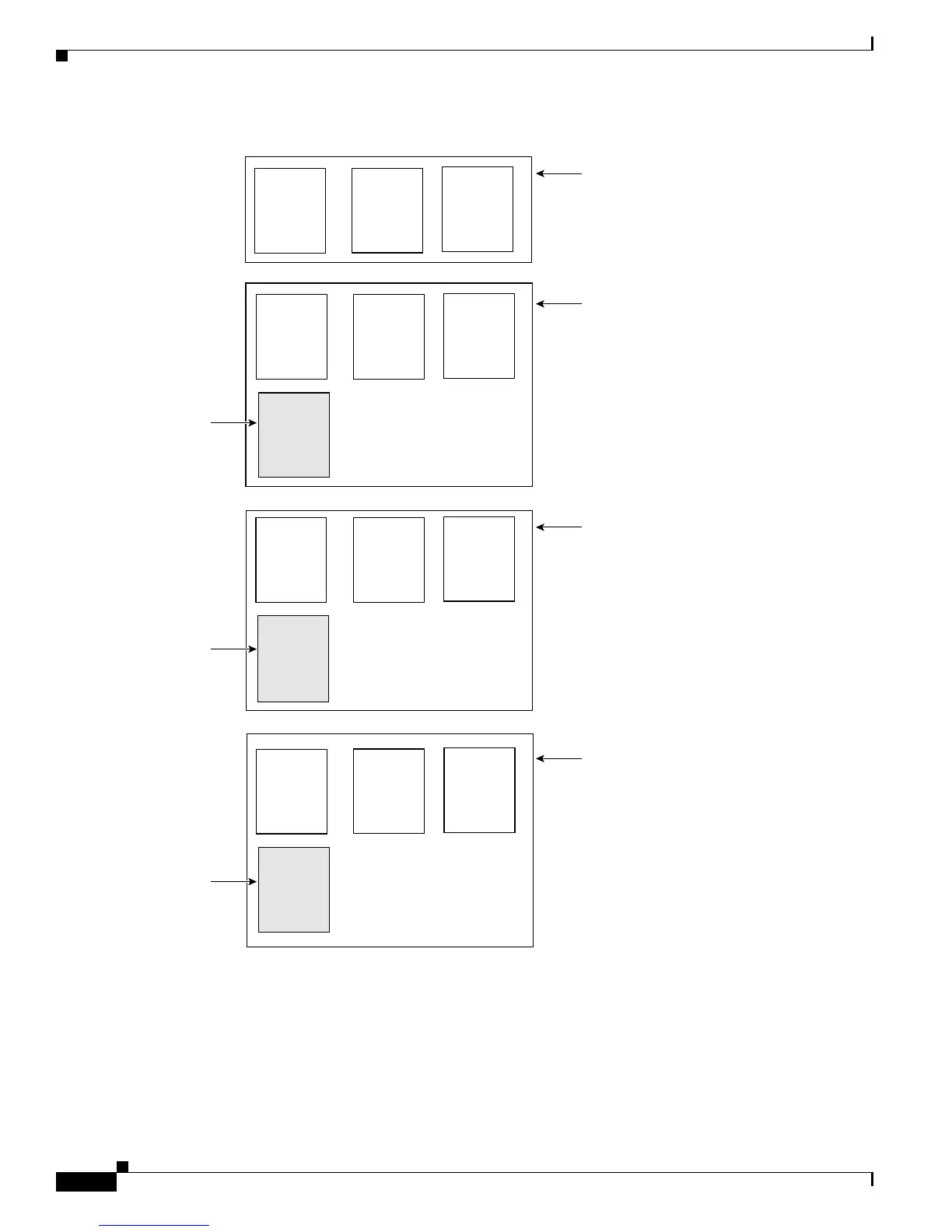

Figure 30-3 Active and Full Zone Sets
Zone set Z1
Zone A
Zone B
Zone C
Zone set Z2
Zone C
Zone D
Zone E
Zone set Z3
Zone A
Zone C
Zone D
Zone set Z1
Zone A
Zone B
Zone C
Zone set Z2
Zone C
Zone D
Zone E
Zone set Z3
Zone A
Zone C
Zone D
Full zone set
Zone set Z1
Zone A
Zone B
Zone C
After activating Zone set Z1
Full zone set
Active
zone set
Zone set Z1
Zone A
Zone B
Zone C
Zone set Z2
Zone C
Zone D
Zone E
Zone set Z3
Zone A
Zone C
Zone D
Zone set Z1
Zone A
Zone B
Zone C
After adding Zone D to Zone set Z1
Full zone set
Active
zone set
Zone set Z1
Zone A
Zone B
Zone C
Zone set Z2
Zone C
Zone D
Zone E
Zone set Z3
Zone A
Zone C
Zone D
Zone set Z1
Zone A
Zone B
Zone C
After activating Zone set Z1 again
Full zone set
Active
zone set
Zone D
Zone D
Zone D
No active Zone set
