Send documentation comments to mdsfeedback-doc@cisco.com

30-8

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 30 Configuring and Managing Zones

Using the Quick Config Wizard

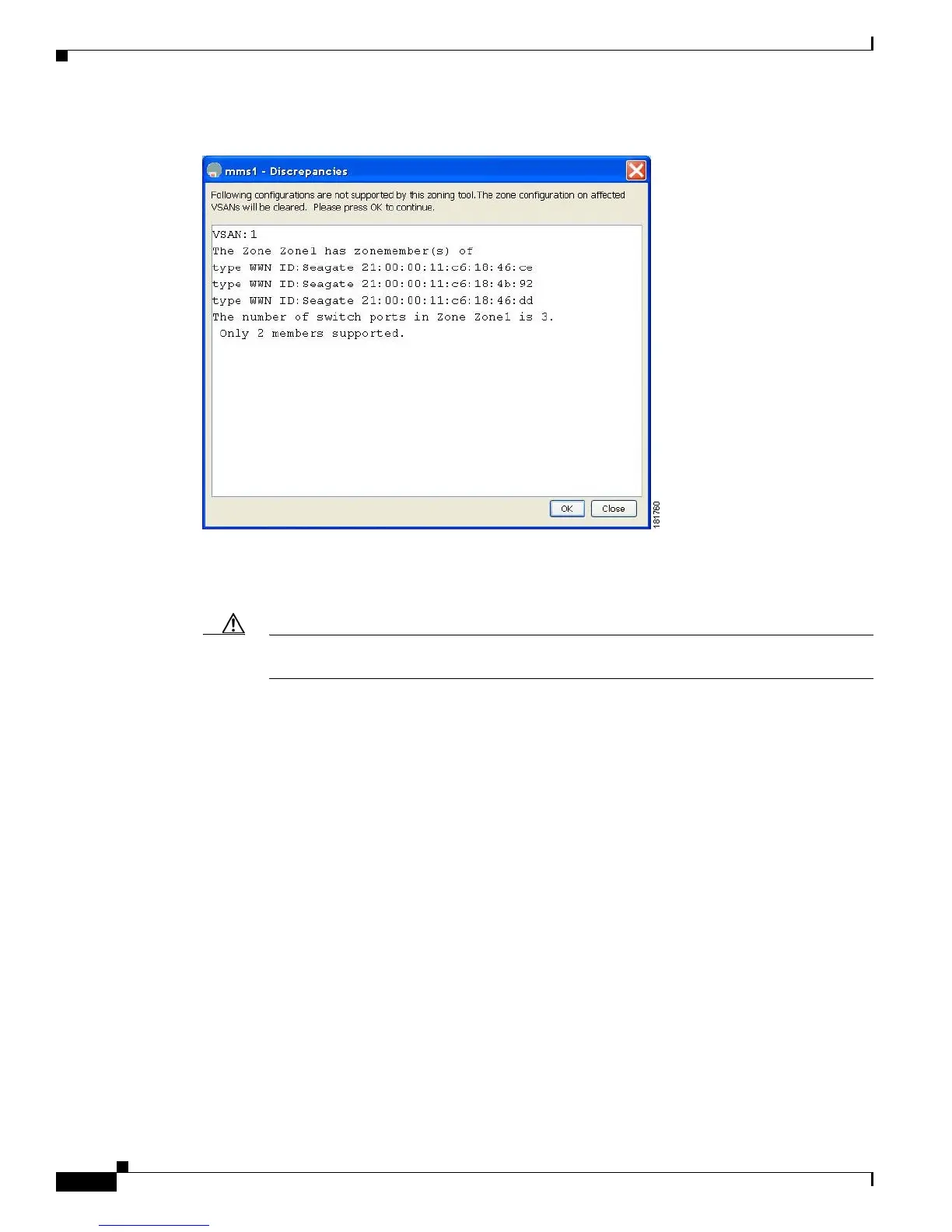

Figure 30-4 Discrepancies Dialog Box

Step 2

Click OK to continue.

You see the Quick Config Wizard dialog box shown in Figure 30-5.

Caution If there are discrepancies and you click OK, the affected VSANs in the zone databases are

cleared. This may become disruptive if the switch is in use.
