Chapter 43 Configuring Certificate Authorities and Digital Certificates

Example Configurations

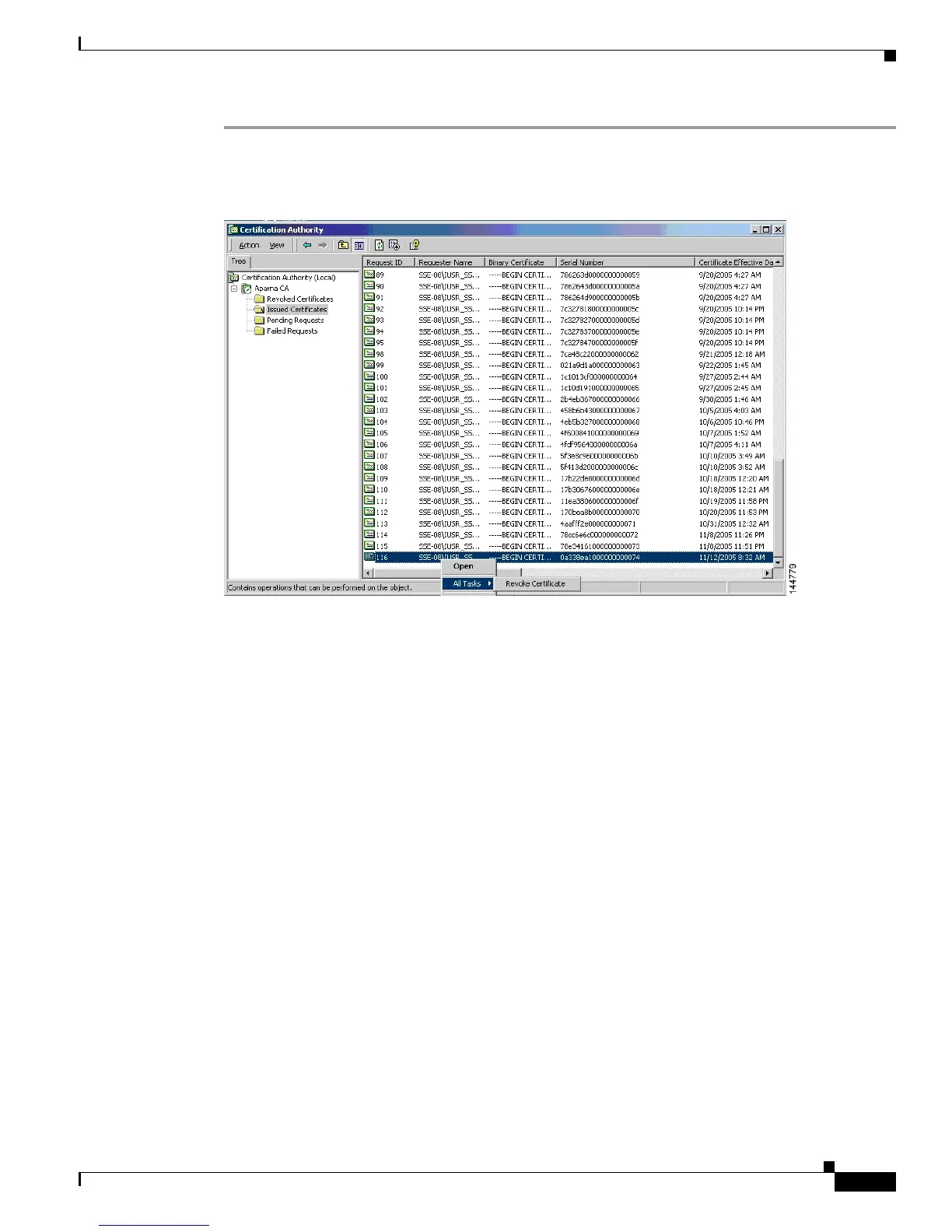

Step 1 Click the Issued Certificates folder on the Certification Authority tree. From the list, right-click the

certificate you want to revoke.

Step 2 Select All Tasks > Revoke Certificate.
