Send documentation comments to mdsfeedback-doc@cisco.com

43-32

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 43 Configuring Certificate Authorities and Digital Certificates

Example Configurations

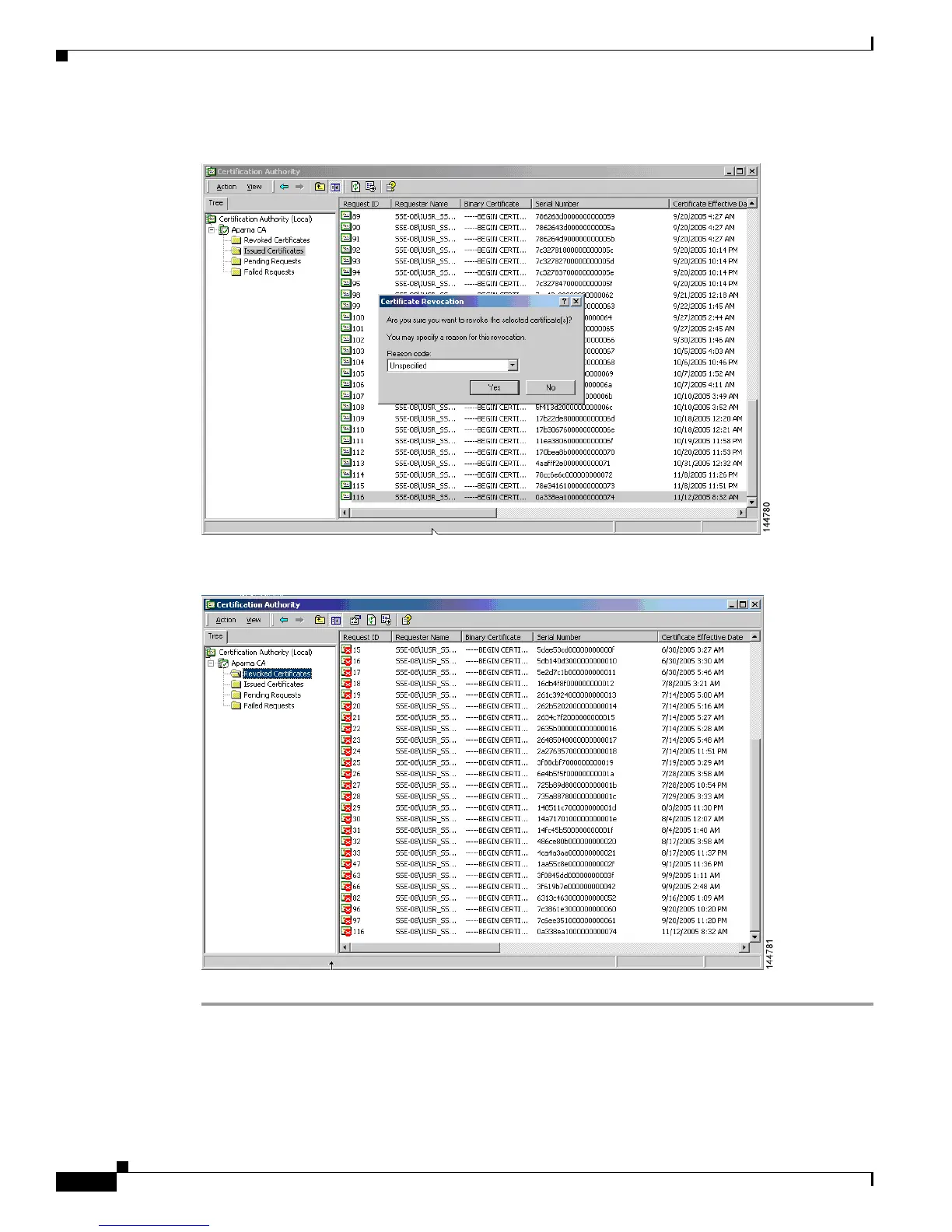

Step 3 Select a reason for the revocation from the Reason code drop-down list, and click Yes.

Step 4 Click the Revoked Certificates folder to list and verify the certificate revocation.

Default Chapter4
