Configuring IPsec Using FCIP Wizard

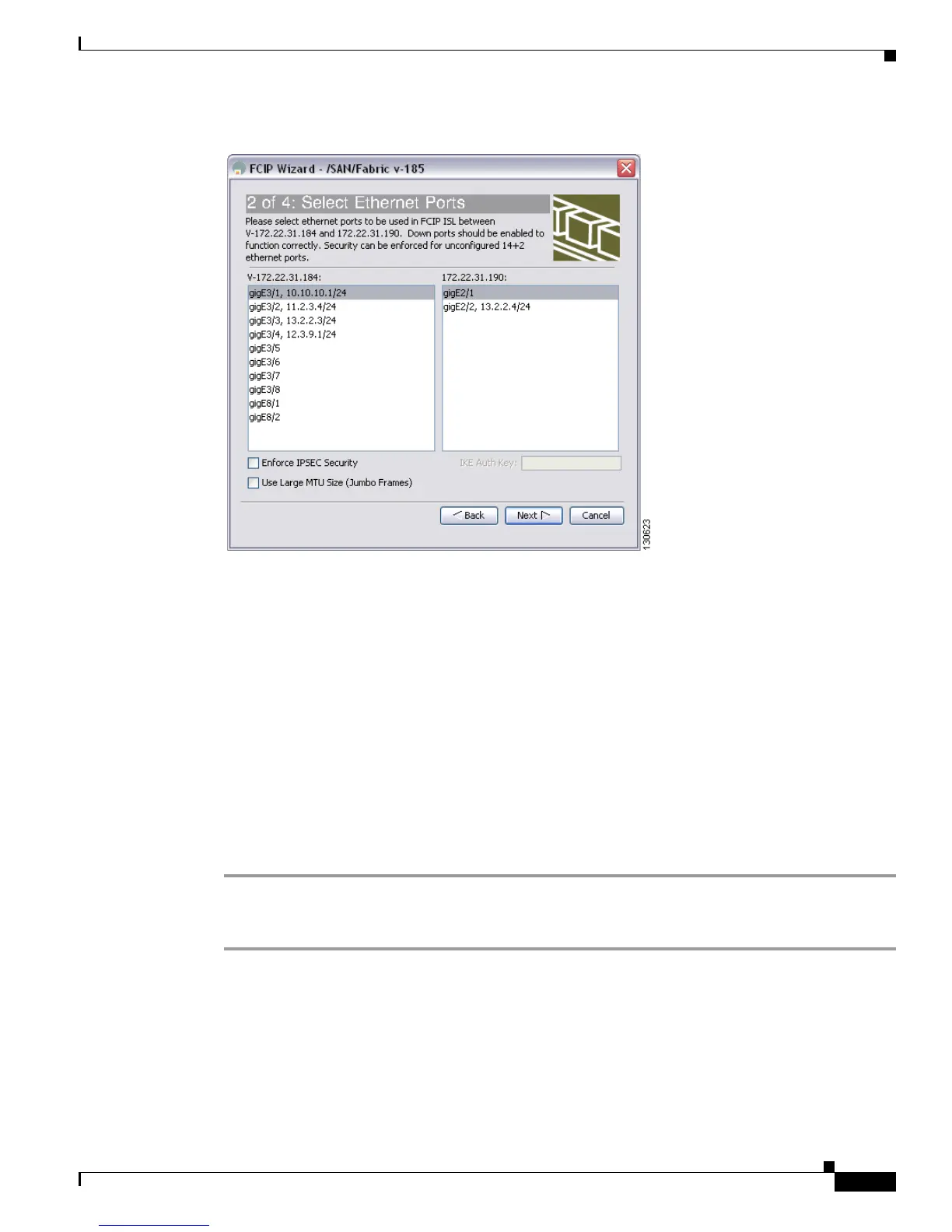

Figure 44-6 Enabling IPsec on an FCIP Link
Step 5 Click Next. In the Specify Tunnel Properties dialog, you see the TCP connection characteristics.
Step 6 Set the minimum and maximum bandwidth settings and round-trip time for the TCP connections on this
FCIP link. Click the Measure button to measure the round-trip time between the Gigabit Ethernet
endpoints.
Step 7 Check the Enable Write Acceleration check box to enable FCIP write acceleration on this FCIP link.
See the
“FCIP Write Acceleration” section on page 48-29.
Step 8 Check the Enable Optimum Compression check box to enable IP compression on this FCIP link. See
the
“FCIP Compression” section on page 48-37.
Step 9 Click Next to configure the FCIP tunnel parameters.
Step 10 Set the Port VSAN for nontrunk/auto and allowed VSAN list for the trunk tunnel. choose a Trunk Mode
for this FCIP link. See the
“Checking Trunk Status” section on page 48-17.
Step 11 Click Finish to create this FCIP link or click Cancel to exit the FCIP Wizard without creating an FCIP
link.
To verify that IPsec and IKE are enabled using Fabric Manager, follow these steps:
Step 1 Expand Switches > Security and then select IPSEC in the Physical Attributes pane.
You see the IPsec configuration in the Information pane in Figure 44-7.
