Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 21 Configuring N Port Virtualization

Configuring NPV

The VSAN configuration is applied in the final step.

Step 7 Map the server interfaces with external interfaces for disruptive load balancing as shown in

Figure 21-23.

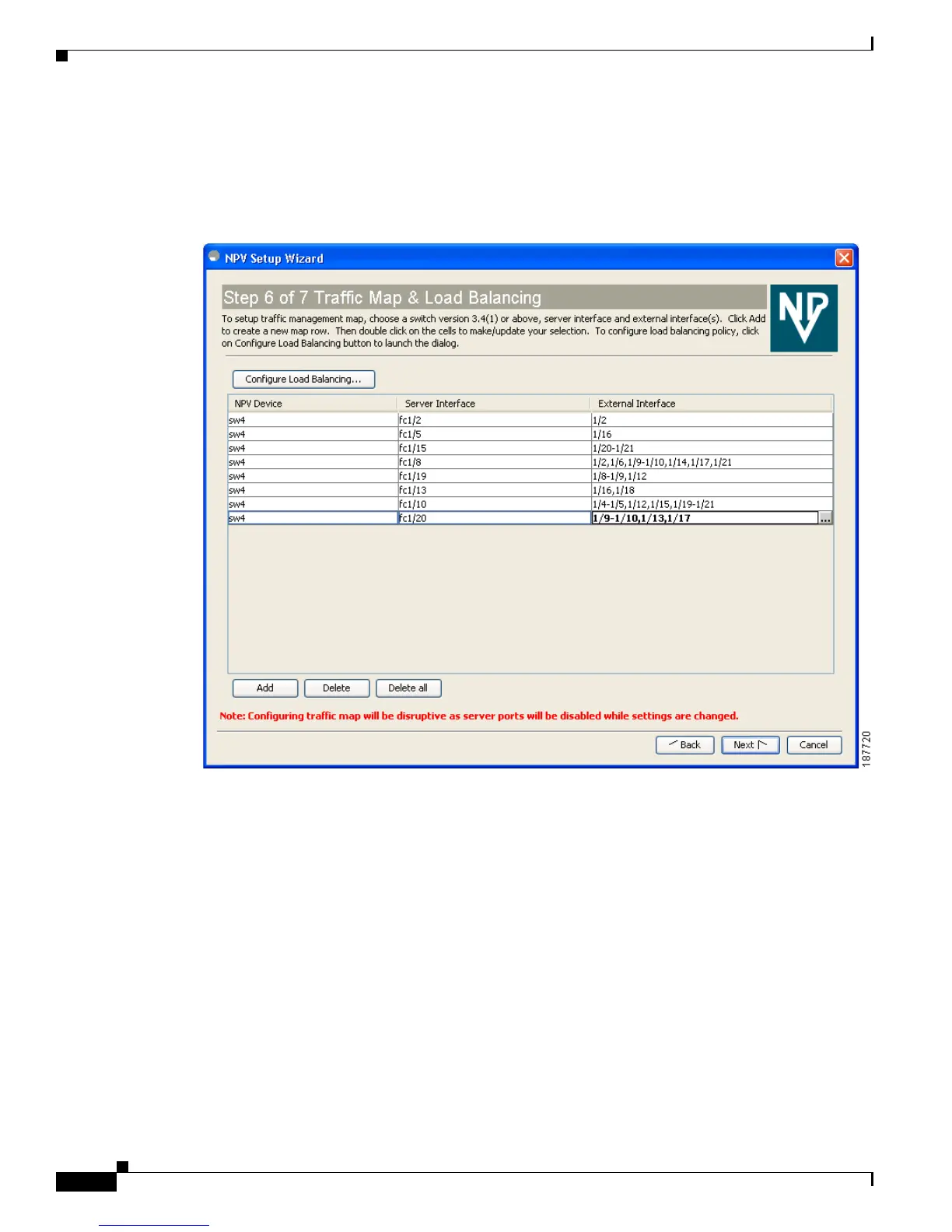

Figure 21-23 Mapping Server Interfaces with External Interfaces for Load Balancing
