Chapter 21 Configuring N Port Virtualization
Configuring NPV
Step 8 Review all the NPV Setup configurations you entered in the earlier steps and click Finish to complete
the setup as shown in Figure 21-26.

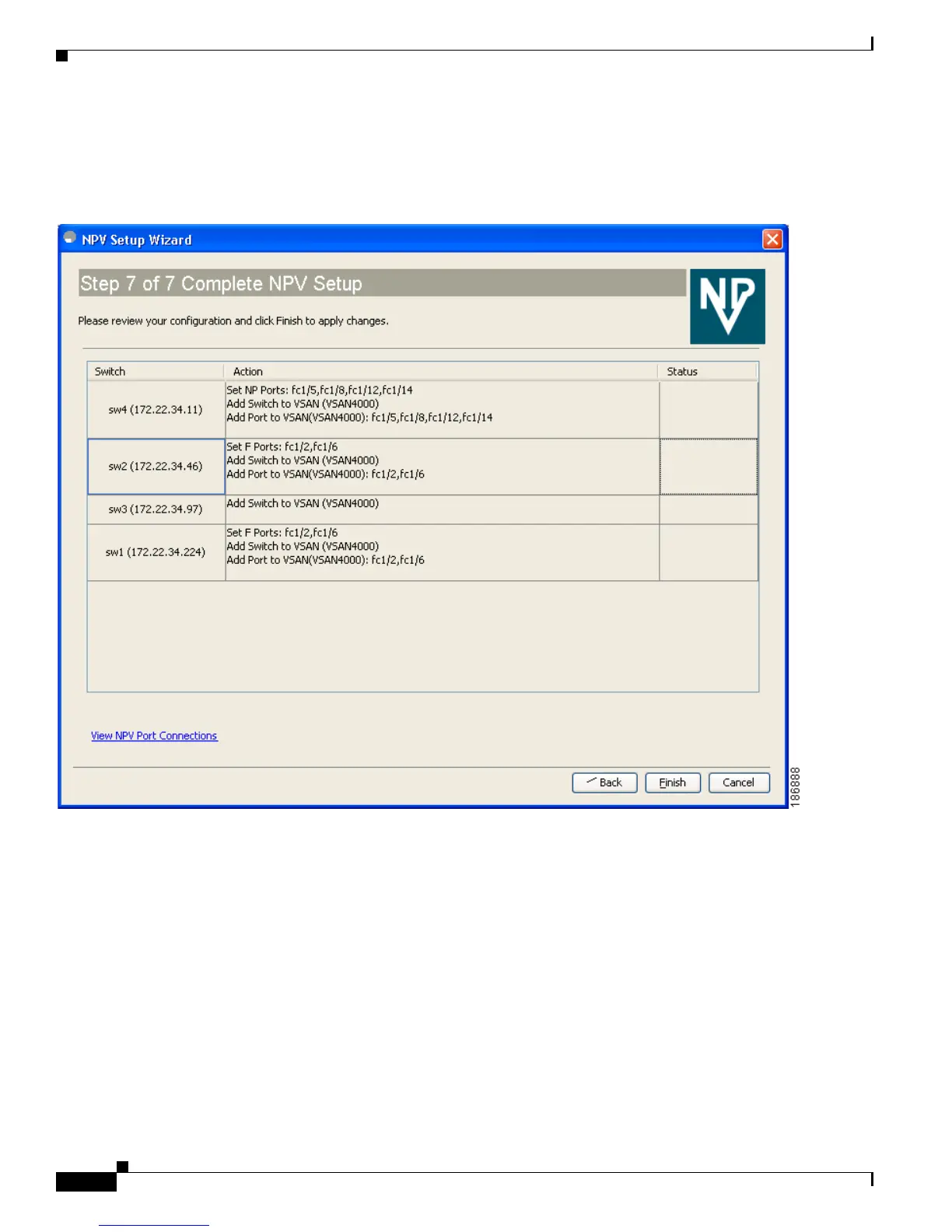

Figure 21-26 Completing the NPV Setup
Enable Switch Feature lists the switches, the impending actions against them with reference to features,
and the resultant status.
Set Port Type lists the switches and the ports to be set on the switches to configure NPV associate ports.
Configure VSAN lists the switches and ports to be added to the specified VSAN.
Click >> to view the expanded the panes. Click << to collapse the panes.
A progress bar at the bottom of the window indicates the overall extent of completion of the
configuration tasks. A text message that runs below the progress bar indicates the current task in
progress.
The status cells against each item indicate In progress, Success, and Error states. When a configuration
cannot be applied, the status cell against the task is changed to Error. Click Error to view Details. A
message is displayed in place of the progress bar stating, Cannot apply all configurations as shown in
Figure 21-27
