Toshiba GR200 Series - (i) Setting value

6F2S1914 (0.49)
GRL200 (Soft 033 & 037)
- 1143 -
(i) Setting value

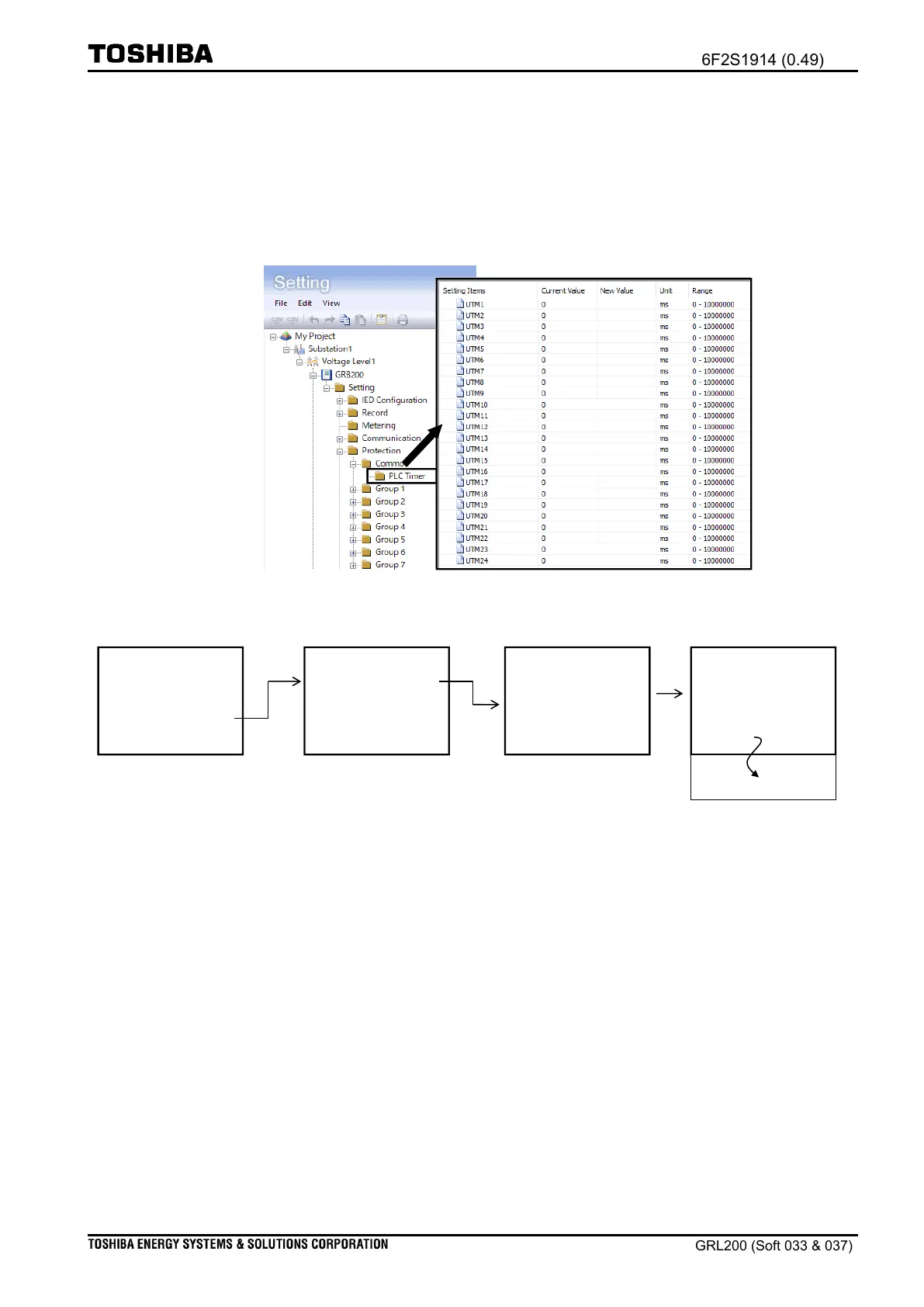

The [UTMxx] value is selected among 0 to 10,000,000 [ms] (see Table 7.5-1). Figure 7.5-4 and
Figure 7.5-5 illustrates how to see a value for the [UTMxx].
PLC timer settings: [UTM1]~ [UTM24]
Figure 7.5-4 [UTMxx] timer setting menu (GR-TIMES operation)
Setting
10:48 1/8
Record >
Metering >
Communication >
Protection >
Control >
Statistic >
Setting
10:48 1/3
Common +
Active Group
Copy Group (A->B) +
Group1 +
Group2 +
Group3 +
Common
10:48 1/3
CLP >
Fault Locator >
PLC Timer >
PLC Timer
10:48 1/24
UTM1 +
0 ms
UTM2 +
0 ms
UTM3 +
0 ms
UTM24 +
0 ms
Figure 7.5-5 Timer setting menu (LCD operation)
