Table 4.2-39 Mapping signals for CSWI1 object
Object_reference
Attribute
Type
FC
Signal Number
Signal Name
Ctrl/CSWI1$Pos$origin
orCat
orCategory
ST
511001 3102011008
DPSY01_3PH_ORCAT
Ctrl/CSWI1$Pos$origin
orIdent
Octet64
ST
511001 6A02011009
DPSY01_3PH_ORIDENT
Ctrl/CSWI1$Pos
stVal
Dbpos
ST
511001 3102011001
DPSY01_3PH_STATE
Ctrl/CSWI1$Pos
q
Quality
ST
511001 3102011005
DPSY01_3PH_QUALITY
Ctrl/CSWI1$Pos
t
Timestamp
ST
511001 9002011006
DPSY01_3PH_TIMESTAMP
Ctrl/CSWI1$Pos
stSeld
BOOLEAN
ST
511001 0002011D90
DPSY01_STD_RPT
Note: Status (ST) is defined in the function constraint (FC) of the IEC 61850.
Drag and drop

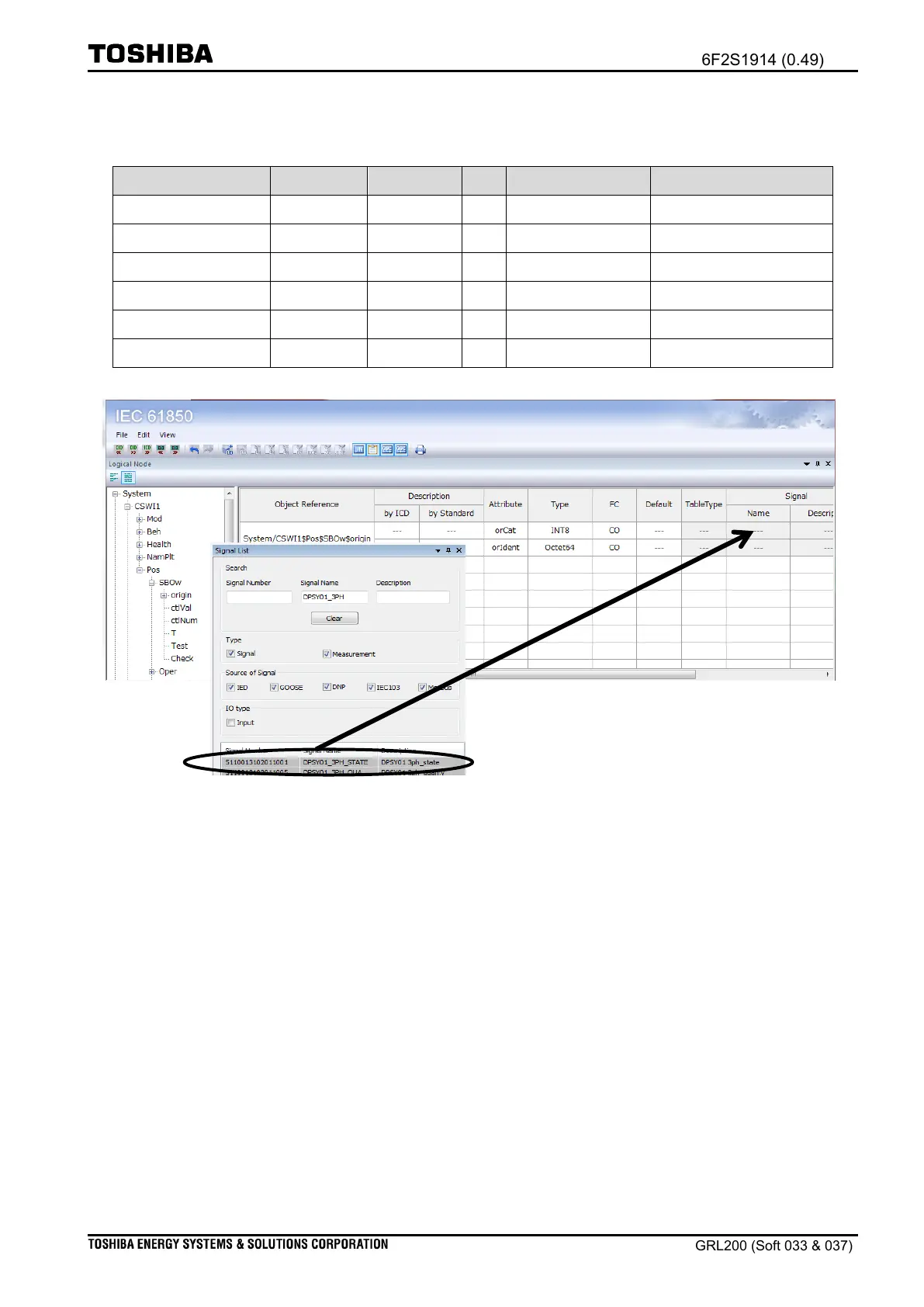

Figure 4.2-55 orCat attribute mapped into DPC object of CSWI1
(iii) Mapping input data
The DPSY01 function can receive three commands select, operate and cancel. Thus, the user
should map the input-point DEV01_CONTROL_REQ to the IEC 61850 configuration. Table
4.2-40 shows the input-point DEV01_CONTROL_REQ and the Object reference
Ctrl/CSWI1$Pos; the user should map the input-point to the Object reference having attribute
CO.. Figure 4.2-56 shows how to map a signal.
Note: The attribute is defined in the IEC 61850; CO stands for Control in the
functional constraint (FC).
