Toshiba GR200 Series - (i)-4 ILK setting (exercise)

6F2S1914 (0.49)
GRL200 (Soft 033 & 037)
- 1719 -

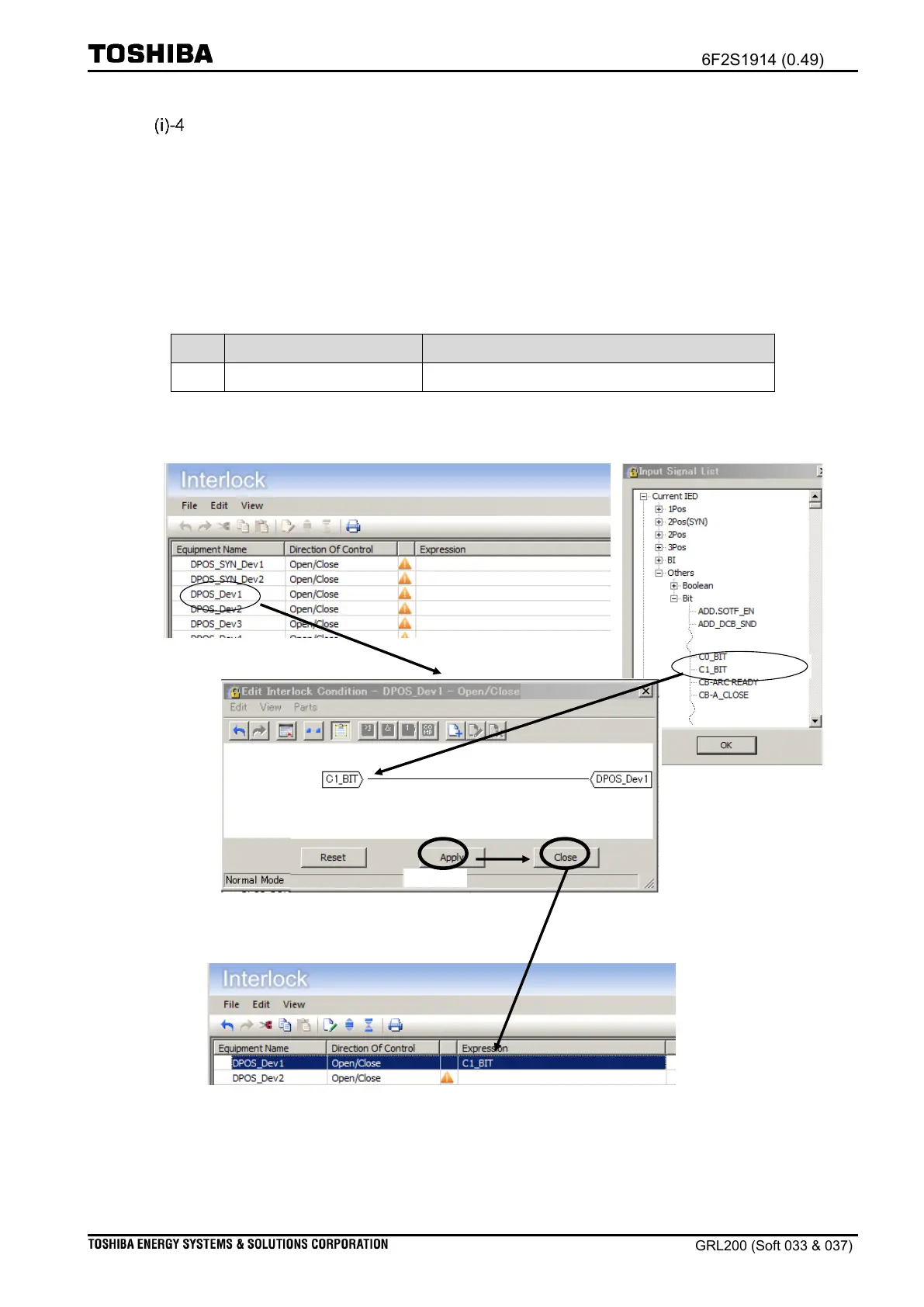

ILK setting (exercise)
CLOSE/OPEN commands can be issued if operation criteria are passed in ILK function. In the
ILK, either OK or NG-decisions will be published for DPOS01. Generally, we shall make an
interlock-check formula in ILK to generate OK-decision, but we will skip making the formula
in the exercise, for the simplicity. Thus, we will make the formula such that constant_1
(C1_BIT) is injected at the formula always so that OK-decision will be issued unconditionally.
Table 6 Exercise materials in CONST_VALUE (Function ID: 100001)
Step
Signals/ [Settings]
Signal/[Setting] contents
16
C1_BIT
Constant value = 1 in bit type
Step: #16
Step: #17
Step: #18
Step: #19
Step: #15
Figure 8 ILK formula setting
