SIR trip time characteristics for three-phase fault (ZS element) [Long line]

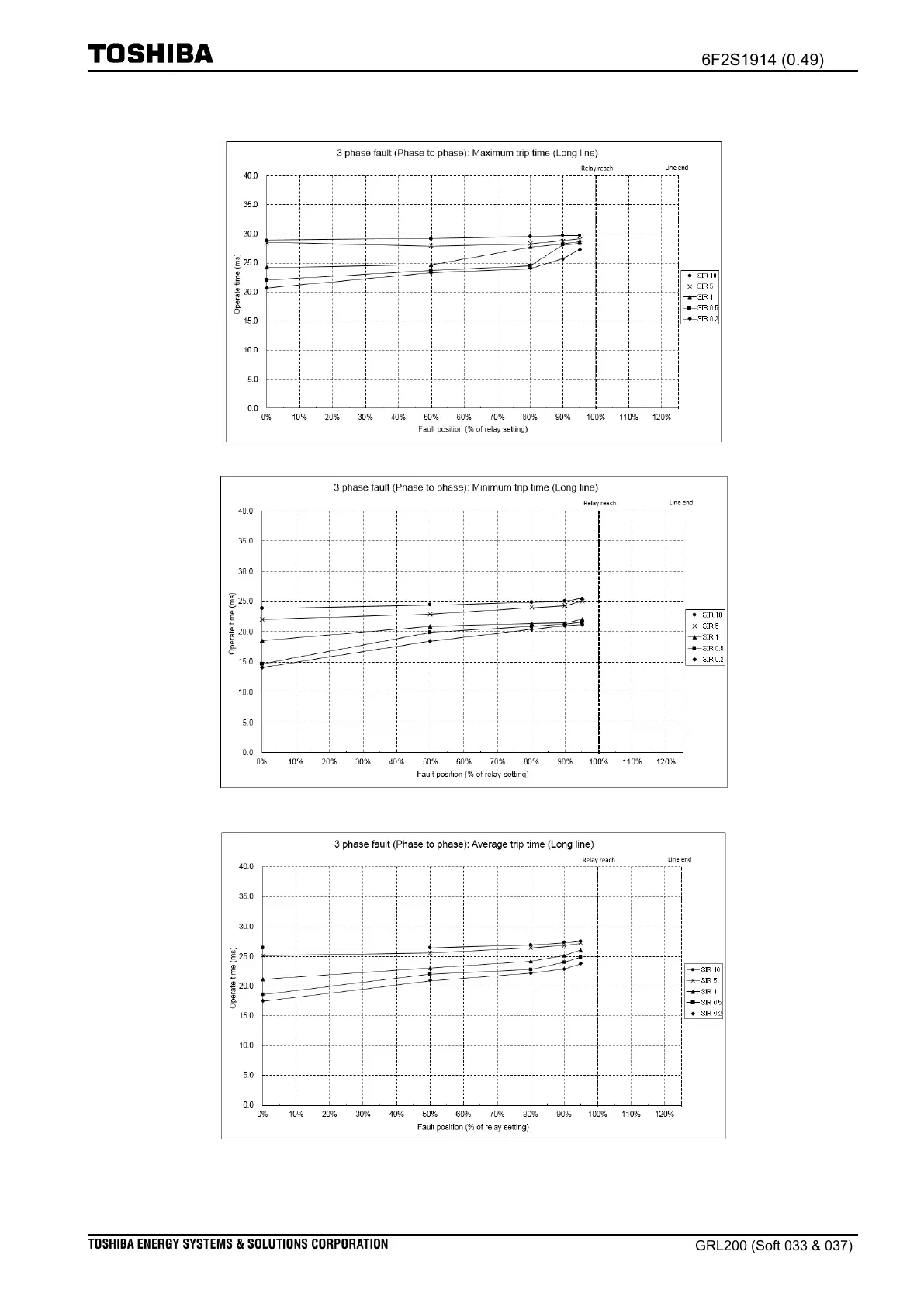

Figure 7 ZS SIR Characteristic on Long line (Maximum trip time)
Figure 8 ZS SIR Characteristic on Long line (Minimum trip time)
Figure 9 ZS SIR Characteristic on Long line (Average trip time)
