8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_Or5_1

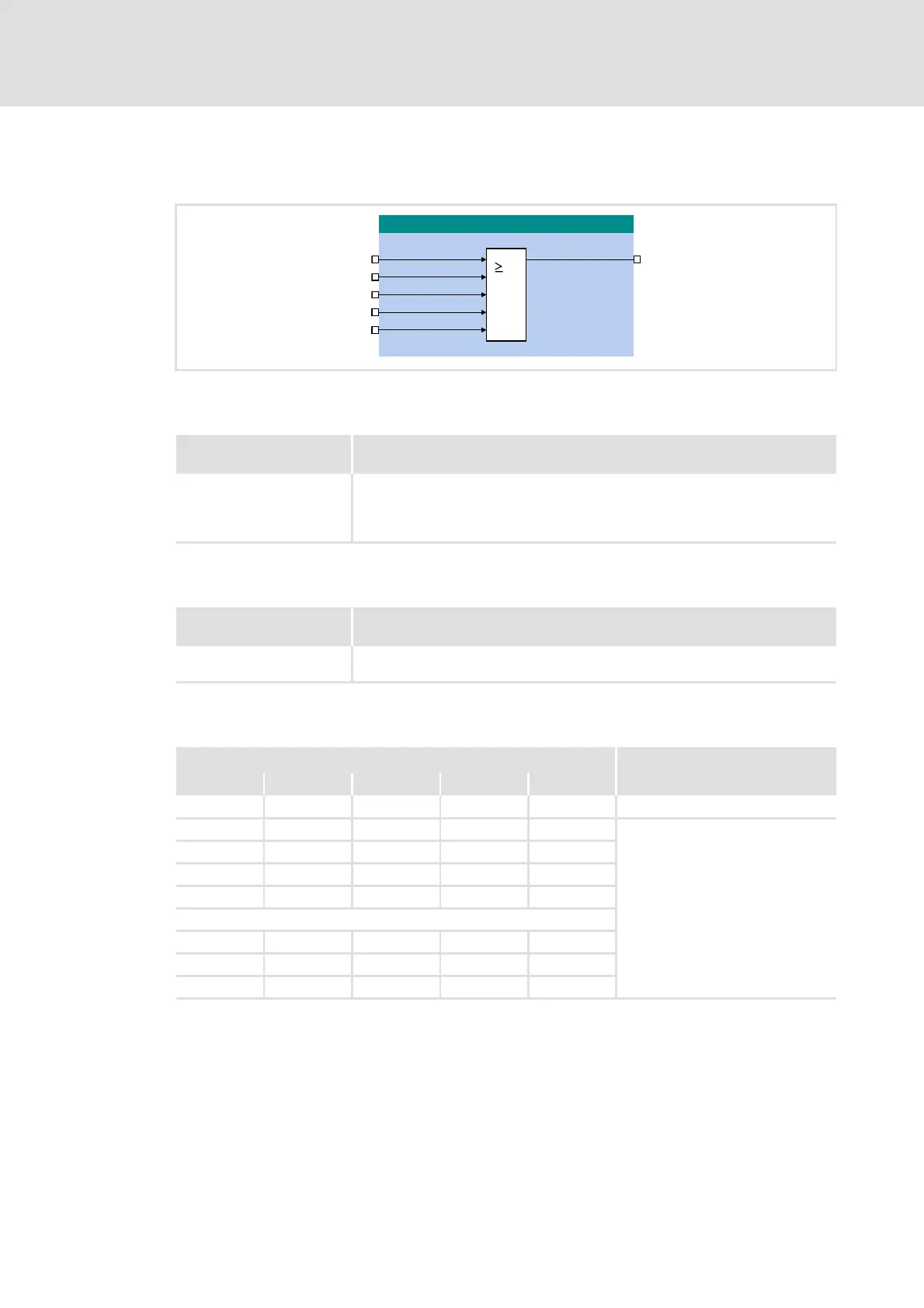

14.1.111 L_Or5_1
This FB implements the ORing of the inputs signals.
Inputs
Outputs
Function
[14-35] Truth table of the FB L_Or5_1
Identifier
Data type
Information/possible settings
bIn1
...
bIn5
BOOL
Input signal
Identifier
Data type
Value/meaning
bOut
BOOL
Output signal
Inputs Output
bIn5 bIn4 bIn3 bIn2 bIn1 bOut
FALSE FALSE FALSE FALSE FALSE FALSE
FALSE FALSE FALSE FALSE TRUE TRUE
FALSE FALSE FALSE TRUE FALSE
FALSE FALSE FALSE TRUE TRUE
FALSE FALSE TRUE FALSE FALSE
...
TRUE TRUE TRUE FALSE TRUE
TRUE TRUE TRUE TRUE FALSE
TRUE TRUE TRUE TRUE TRUE
/B2UB
E,Q E2XW
E,Q
E,Q

E,Q
E,Q
