Lenze E84AVHC Series User Manual

Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 243
8400 HighLine | Parameter setting & configuration
I/O terminals
Analog terminals

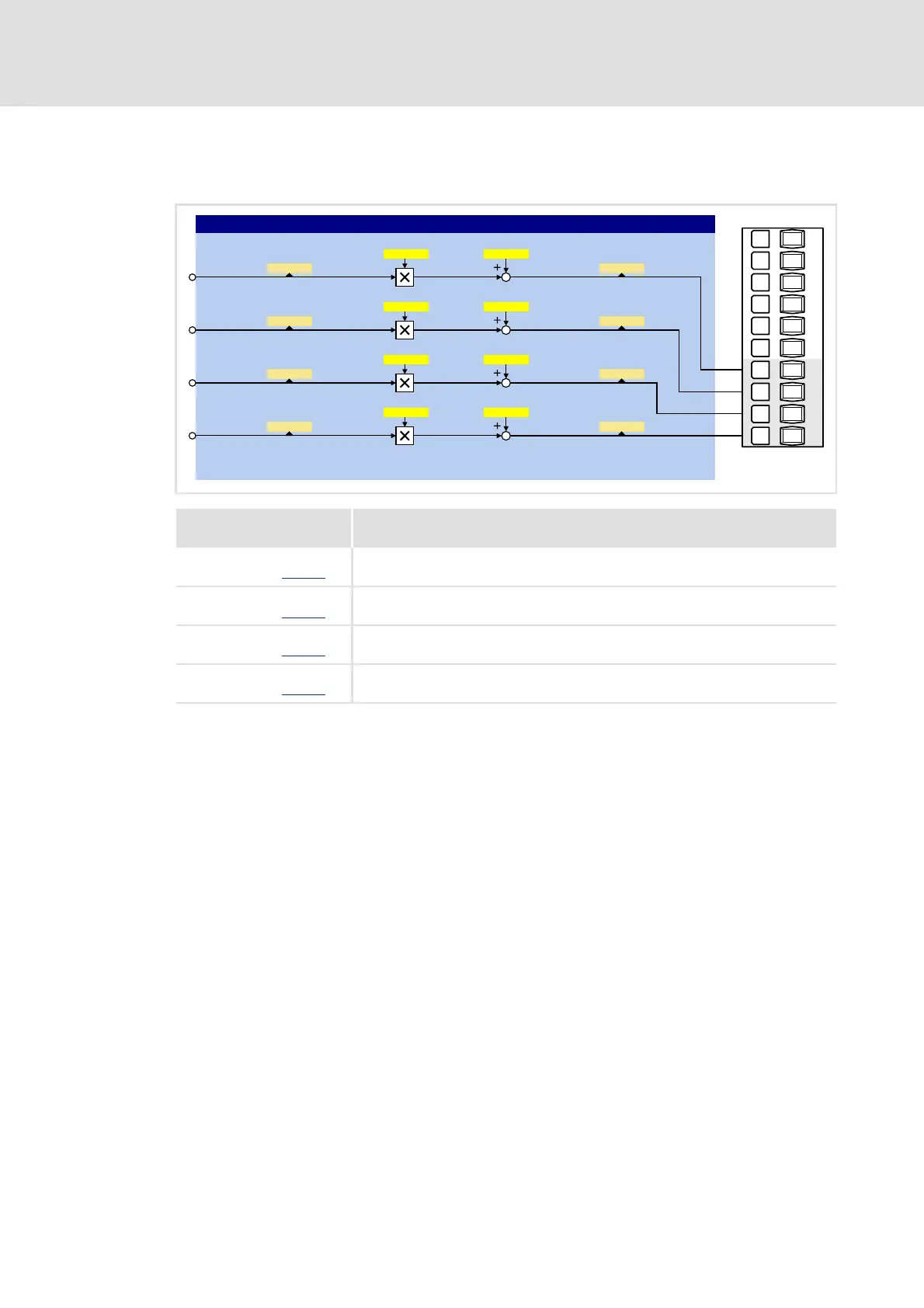

6.3.4 Internal interfaces | System block "LS_AnalogOutput"
The LS_AnalogInput system block maps the analog outputs in the FB editor.
Input
DIS code | data type
Information/possible settings
nOut1V_a
C00439/1 | INT
Analog output 1 (voltage)
• Scaling: ±2
14
≡ 16384 ≡ ±10 V
nOut1I_a
C00439/3 | INT
Analog output 1 (current)
• Scaling: ±2
14
≡ 16384 ≡ ±10 V
nOut2V_a
C00439/2 | INT
Analog output 2 (voltage)
• Scaling: ±2
14
≡ 16384 ≡ ±20 mA
nOut2I_a
C00439/4 | INT
Analog output 2 (current)
• Scaling: ±2
14
≡ 16384 ≡ ±20 mA
/6B$QDORJ2XWSXW
Q2XW9BD
&
2IIVHW*DLQ
&&
&
Q2XW,BD
&
2IIVHW*DLQ
&&
&
Q2XW9BD
&
2IIVHW*DLQ
&&
&
Q2XW,BD
&
2IIVHW*DLQ
&&
&
;
$8
$5
$,
$8
$,*$282,282,
