8400 HighLine | Parameter setting & configuration
Working with the FB Editor
Reconfiguring the predefined interconnection
848 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
13.4.1.4 Inserting a comment
Comments can be inserted at any position in the drawing area.
As of the »Engineer« V2.10, the interior colour and text alignment of a comment can be
changed via a properties dialog. Now the sizes of comments can also be changed using the
mouse pointer. When using different interior colours you can use comments to graphically
arrange areas that belong together in terms of function or separate them from other areas:

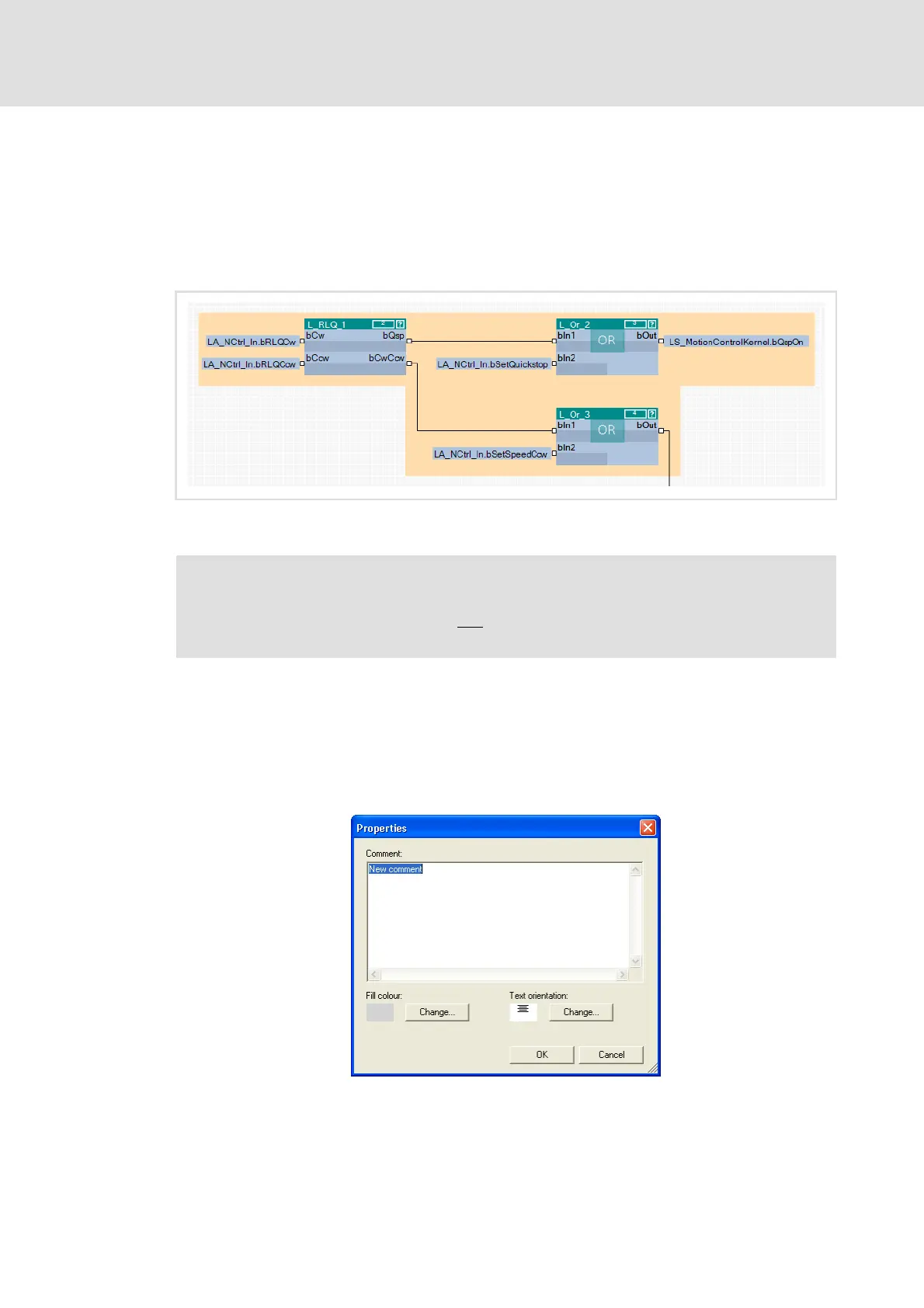

[13-7] Example: Graphical arrangement of FBs by means of two comments that overlap.
How to insert a new comment into the interconnection:
1. Move the mouse pointer to the (free) position in the drawing area where the
comment is to be inserted.
2. Go to the Context menu (right mouse key) and select the New comment command.
•The Properties dialog box is displayed:
3. Enter the required comment into the text field.
Note!
The term "Arrangement" does not mean a logical arrangement of the function
blocks. The comments are only graphical presentation elements of the FB Editor.
