Lenze E84AVHC Series User Manual

8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_MulDiv_2
986 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010

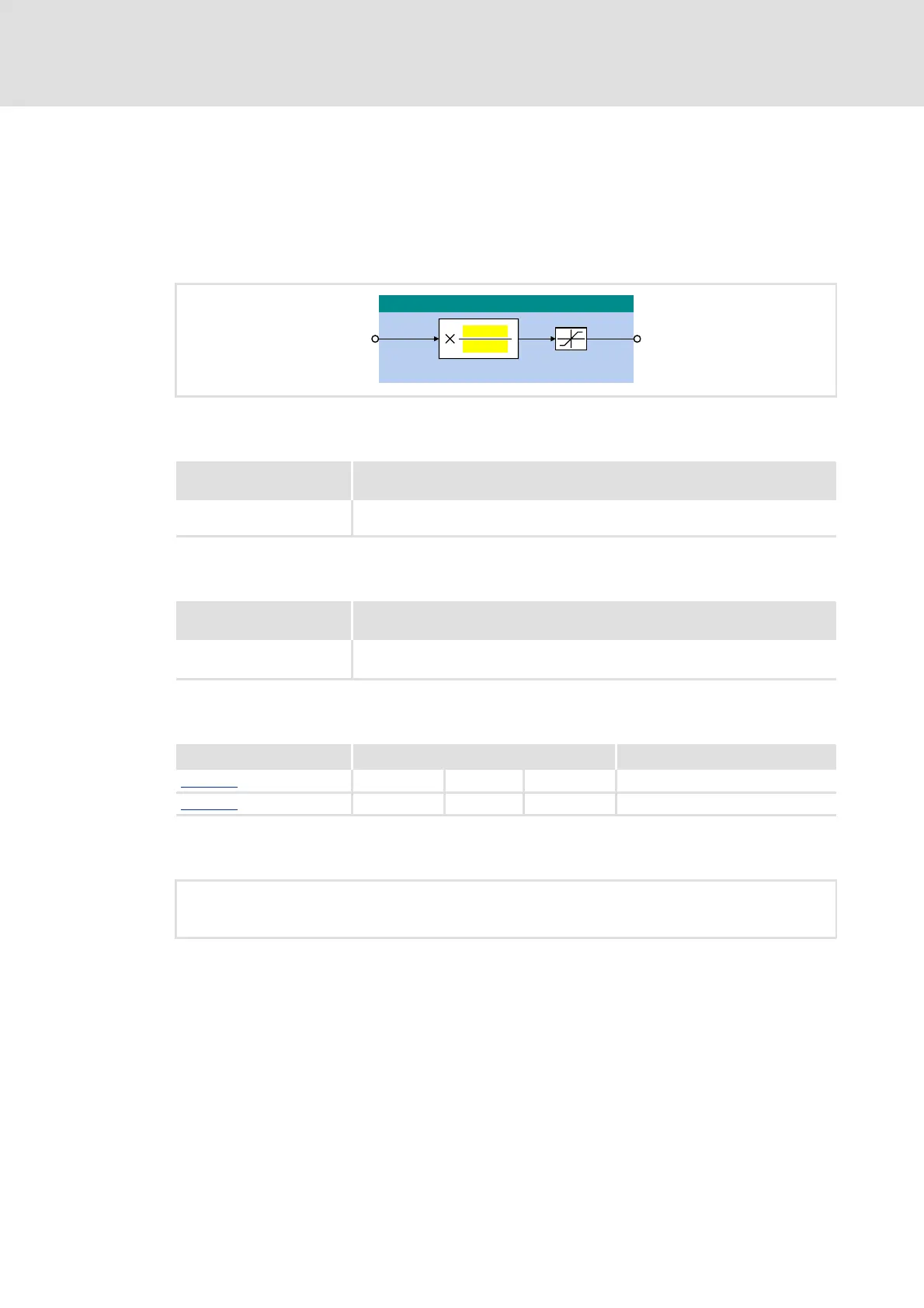

14.1.85 L_MulDiv_2
This FB multiplies the analog input signal with a parameterisable factor.
 The value of the factor is determined by a quotient consisting of numerator and
denominator .
 The value output at nOut_a is limited to ±199.99 %.
Inputs
Outputs
Parameter
Function
Identifier
Data type
Information/possible settings
nIn1
INT
Input signal
Identifier
Data type
Value/meaning
nOut_a
INT
Product value (result of the multiplication)
• Internal limitation to ± 32767
Parameter Possible settings Info
C00679/1
-32767 32767 Counter
C00679/2
-32767 32767 Denominator
/B0XO'LYB
Q,QBD Q2XWBD&
&

 
nOut_a nIn_a
C00679/1
C00679/2
-------------------------
×=
