Firmware 05.00 - DMS 4.2 EN - 02/2010 L 877
8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_AddSub_1

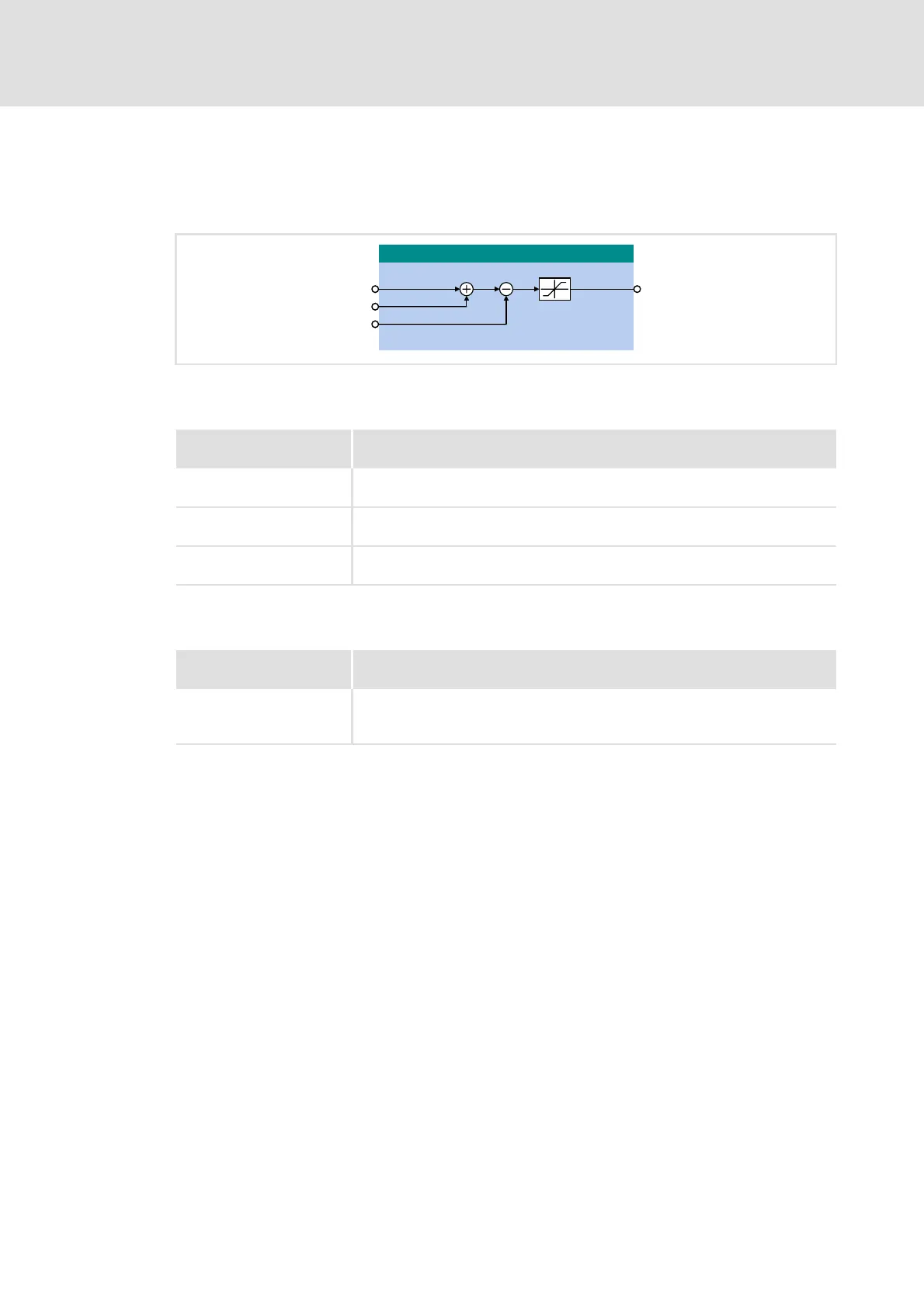

14.1.3 L_AddSub_1
This FB is provided with two adding inputs and one subtracting input.
The value provided at the nOut_a output is internally limited to ±32767.
Inputs
Outputs
Identifier
Data type
Information/possible settings
nIn1_a
INT
Input signal 1
This input is added
nIn2_a
INT
Input signal 2
This input is added
nIn3_a
INT
Input signal 3
This input is subtracted
Identifier
Data type
Value/meaning
nOut_a
INT
Output signal
nOut_a = nIn1_a + nIn2_a - nIn3_a
Internal limitation to ±32767 (±199.99 %)
/B$GG6XEB
Q,QBD Q2XWBD
Q,QBD
Q,QBD
r
r
