8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_MPot_1
984 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
14.1.83.2 Deactivate motor potentiometer
When the motor potentiometer is deactivated by setting bInAct to TRUE, the nOut_a
output signal responds according to the function selected via Function.

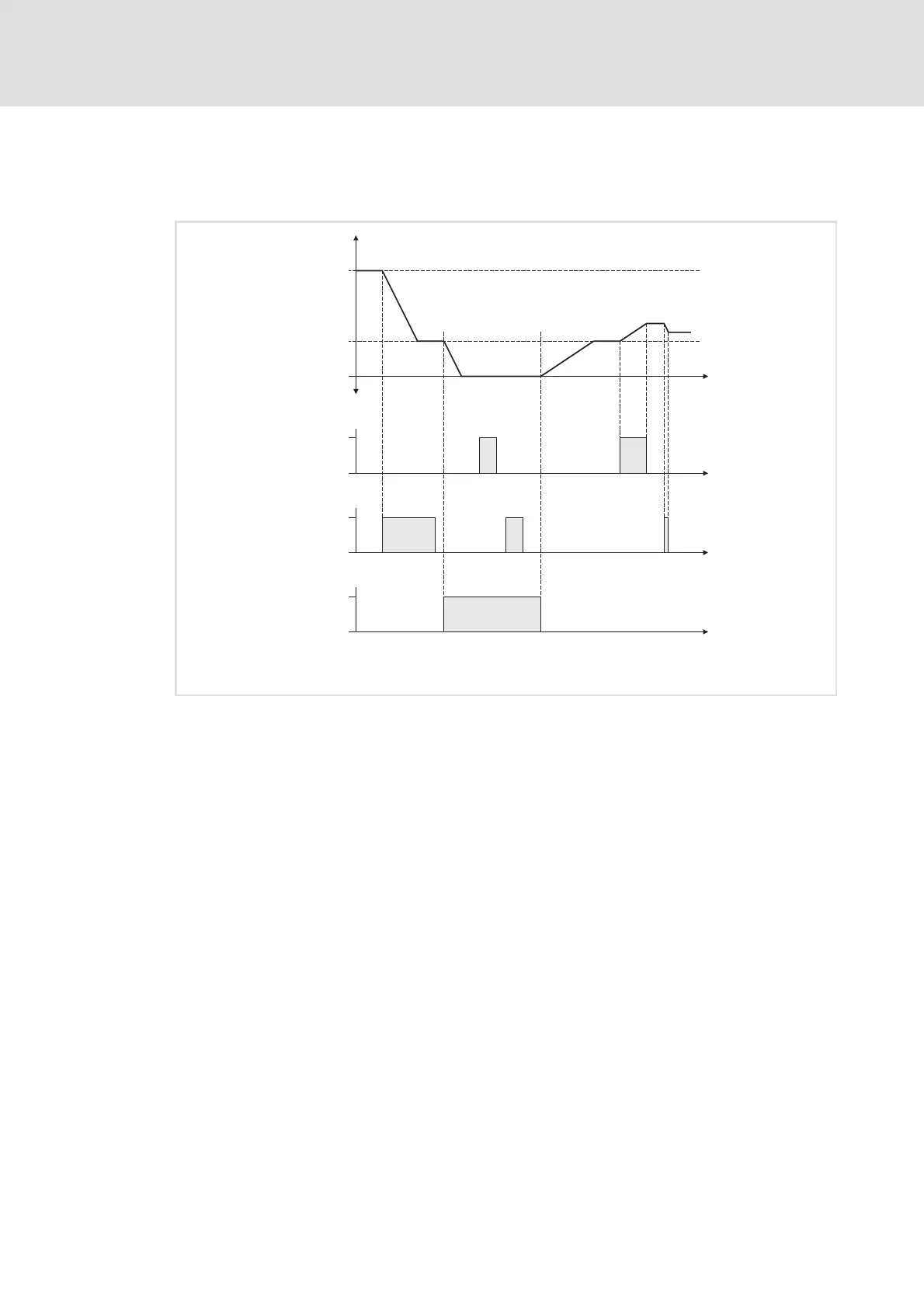

[14-28] Example: Deactivation of the motor potentiometer when the Function = 1 has been selected
 When the motor potentiometer is deactivated, nOut_a is reduced to 0 % with the deceleration time wTif.
 If it is activated again, nOut_a is increased again to nLowLimit with the acceleration time wTir.
nOut_a
t
t
TRUE
FALSE
bUp
t
TRUE
FALSE
bDown
nHighLimit
nLowLimit
0
wTir
wTif
wTir
t
TRUE
FALSE
bInAct
wTif
wTif
01
