8400 HighLine | Parameter setting & configuration
System bus "CAN on board"
LED status displays for the system bus

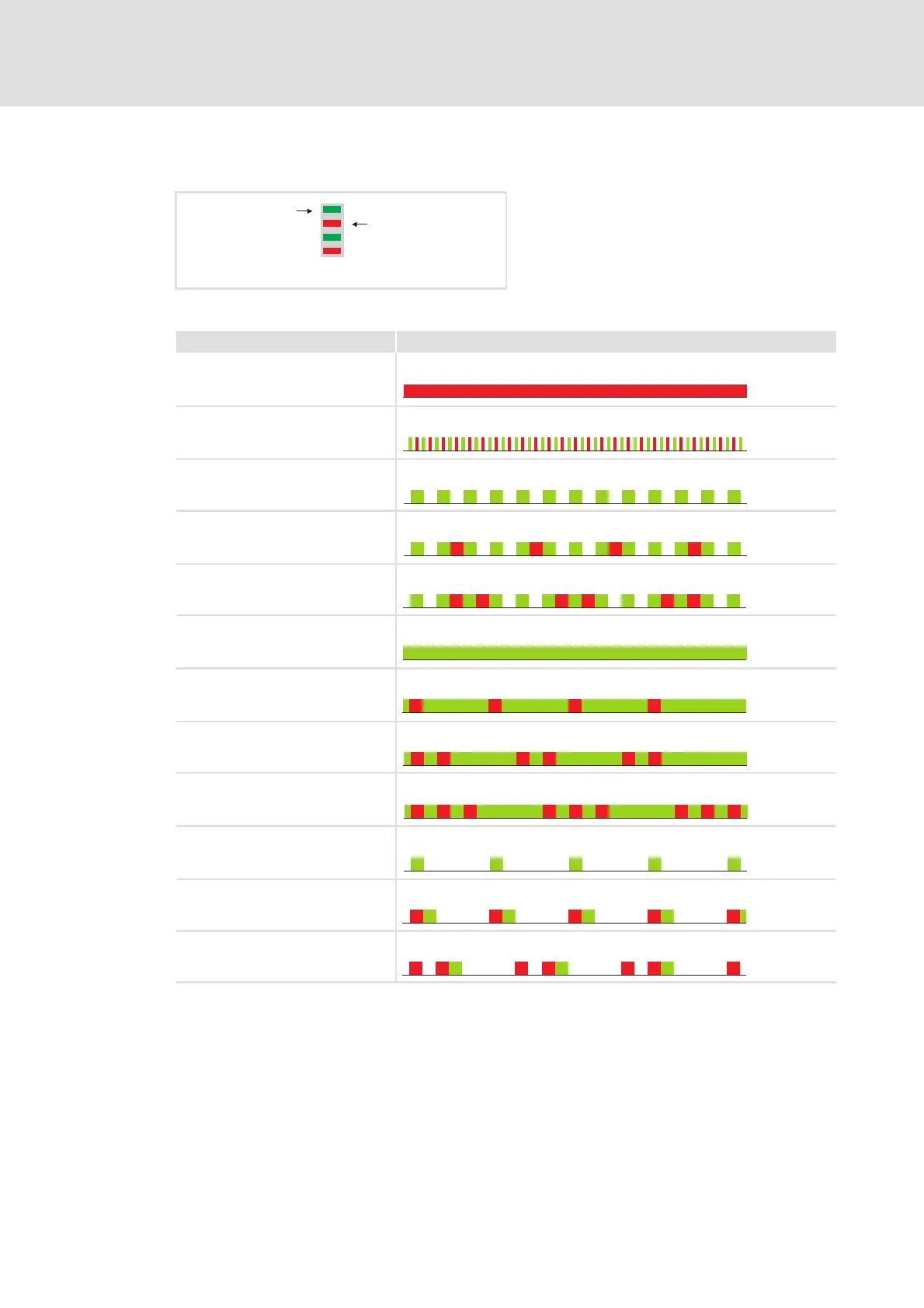

10.3 LED status displays for the system bus
 CAN-RUN:
Signals the CANopen state
 CAN-ERROR:
Signals a CANopen error
Frequency of the display CAN signalling and meaning
Permanently red CAN-Run: -, CAN-Error: Bus Off
Flashes Automatic detection of baud rate is active
Green is blinking every 0.2 s CAN-Run: Pre-Operational, CAN-Error: -
Green is blinking every 0.2 s
Red is blinking 1 time, 1 s off
CAN-Run: Pre-Operational, CAN-Error: Warning Limit reached
Green is blinking every 0.2 s
Red is blinking 2 times, 1 s off
CAN-Run: Pre-Operational, CAN-Error: Node Guard Event
Permanently green CAN-Run: Operational, CAN-Error: -
Permanently green
Red is blinking 1 time, 1 s off
CAN-Run: Operational, Fault: Warning Limit reached
Permanently green
Red is blinking 2 times, 1 s off
CAN-Run: Operational, CAN-Error: Node Guard Event
Permanently green
Red is blinking 3 times, 1 s off
CAN-Run: Operational, CAN-Error: Sync Message Error
Green is blinking every second CAN-Run: Stopped, CAN-Error: -
Green is blinking every second
Red blinks 1 time, 1 s off
CAN-Run: Stopped, CAN-Error: Warning Limit reached
Green is blinking every second
Red blinks 2 times, 1 s off
CAN-Run: Stopped, CAN-Error: Node Guard Event
CAN-RUN
CAN-ERROR
