Basic settings
8.4 Basic settings
8.4.1 Machine parameters
The motor end, among other things, is described by the machine parameters indicated
below in respect of the mechanics used.
For TA "Table positioning"

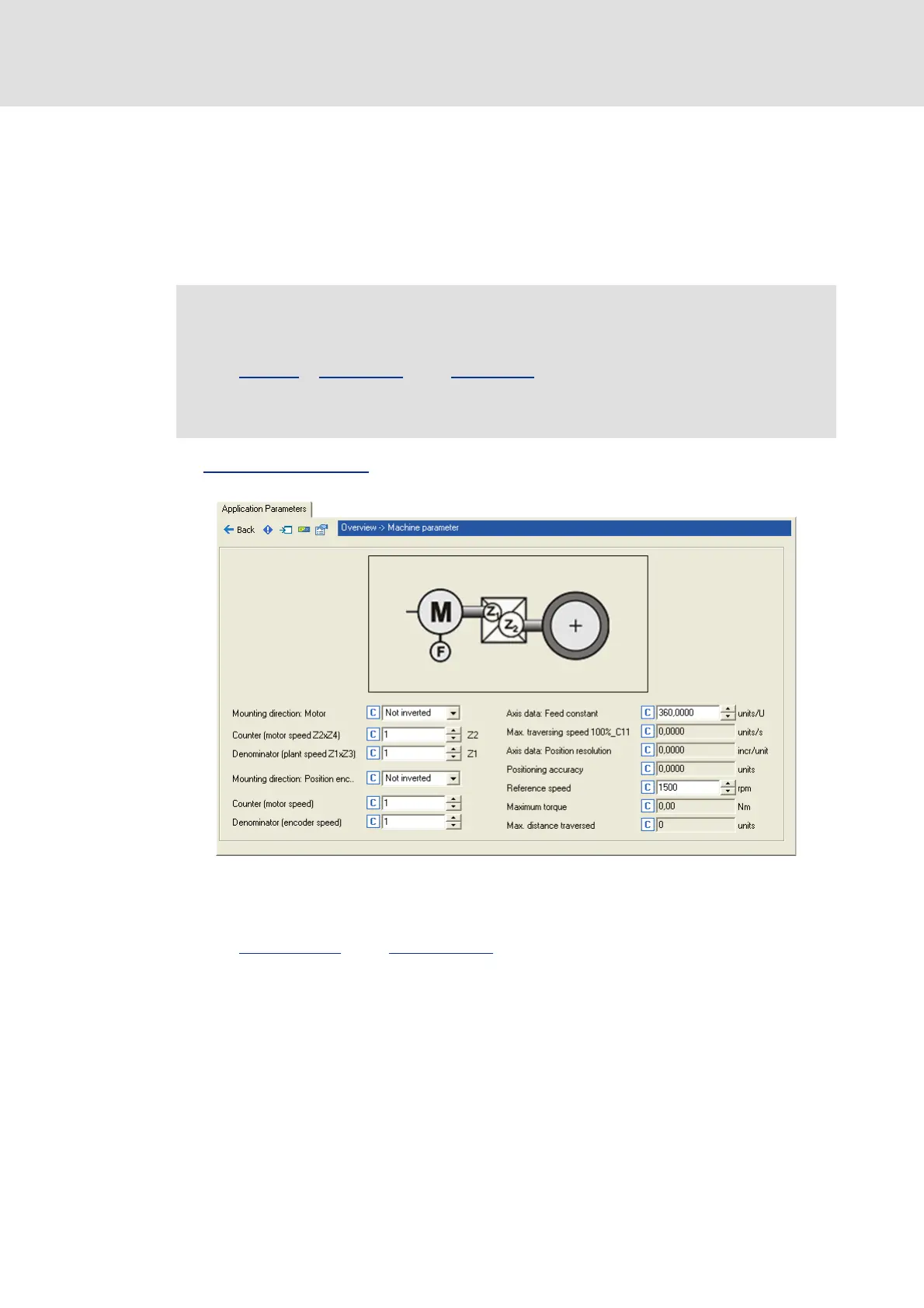

, you can set the machine parameters in the »Engineer» on the
tab headed Application Parameters on the dialog level Overview Machine parameters:
Tip!
You are provided with more detailed information on the machine parameters
"Gearbox ratio
" and "Feed constant" in the following subchapters.
Note!
Setting the machine parameters is a basic prerequisite for the operating modes
"Homing
", "Manual jog" and "Positioning".
The more precisely the machine parameters are set, the better the results of
positioning!
