9.11 System block "LS_SetError_2"
This system block is used for error handling within the application.
 The application can trip up to four different user error messages with parameterisable
error IDs and error responses via the four boolean inputs.
 If several inputs are set to TRUE at the same time, the input with the lowest number
will trip the error message.
Inputs
Identifier
Data type
Information/possible settings
bSetError1
BOOL
Input for tripping "US05: User error 5"
• Error subject number: 984
•Error number: (C00581/5
x 0x0400000) + (984 x 0x10000) + (C00161/5)
bSetError2
BOOL
Input for tripping "US06: User error 6"
• Error subject number: 985
•Error number: (C00581/6
x 0x0400000) + (985 x 0x10000) + (C00161/6)
bSetError3
BOOL
Input for tripping "US07: User error 7"
• Error subject number: 986
•Error number: (C00581/7
x 0x0400000) + (986 x 0x10000) + (C00161/7)
bSetError4
BOOL
Input for tripping "US08: User error 8"
• Error subject number: 987
•Error number: (C00581/8
x 0x0400000) + (987 x 0x10000) + (C00161/8)

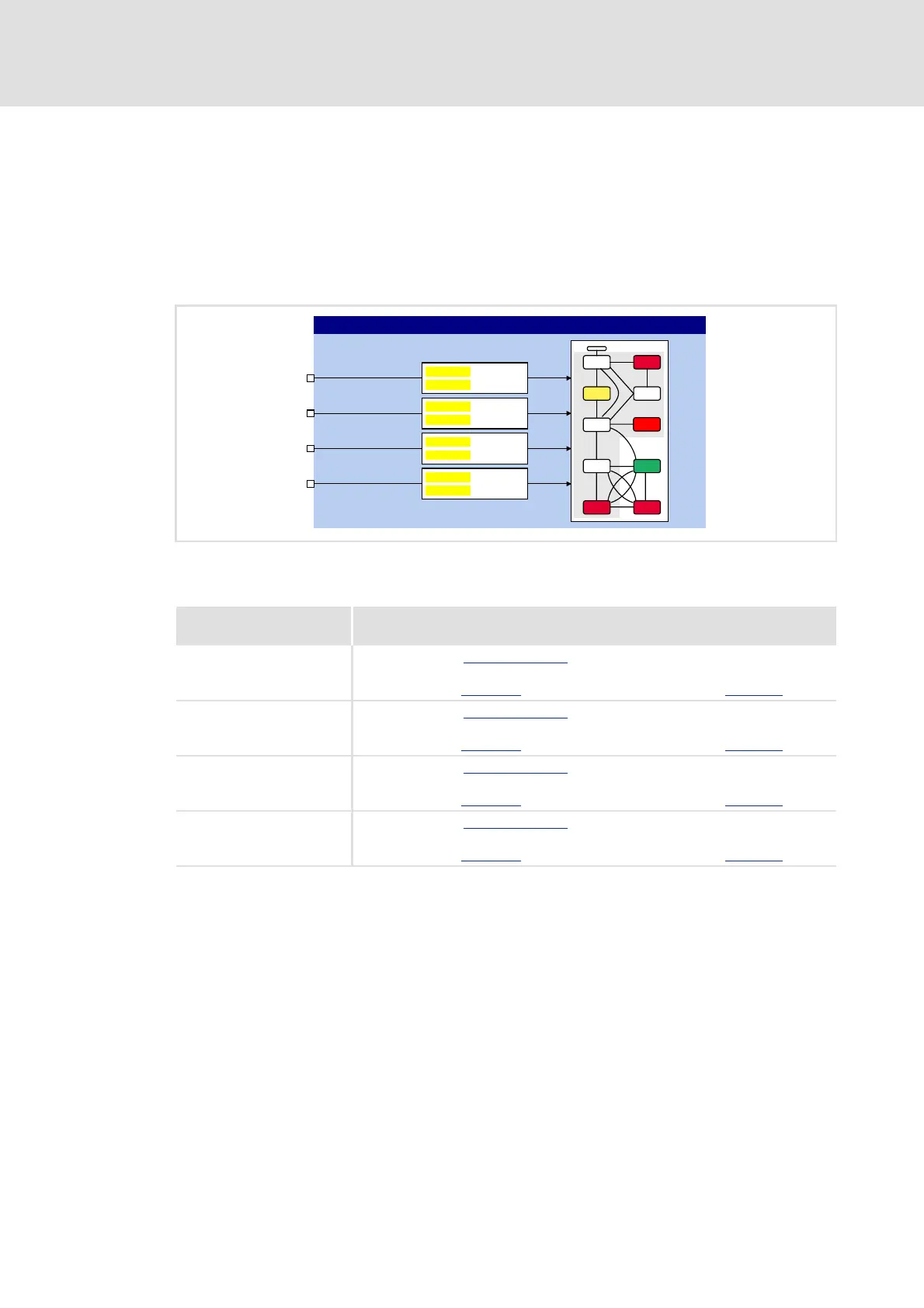

/6B6HW(UURUB


 
 




E6HW(UURU
E6HW(UURU
E6HW(UURU
E6HW(UURU
(UURULG&
5HDFWLRQ
&
(UURULG
&
5HDFWLRQ
&
(UURULG
&
5HDFWLRQ
&
(UURULG
&
5HDFWLRQ
&
