Firmware 05.00 - DMS 4.2 EN - 02/2010 L 977
8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_Limit_2

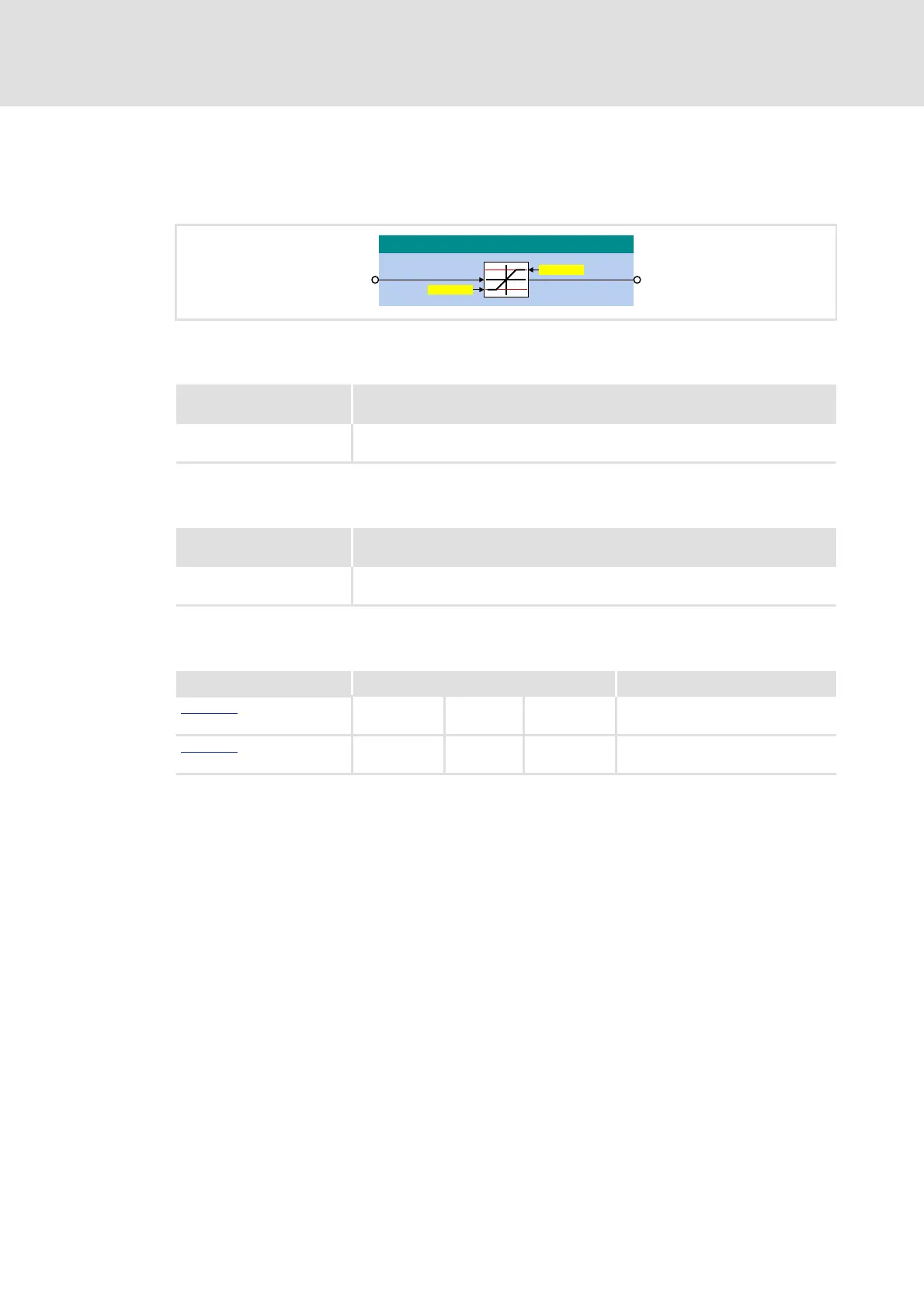

14.1.79 L_Limit_2
This FB limits an analog input signal to a value range whose upper and lower limit can be
set via parameters.
Inputs
Outputs
Parameter
Tip!
Always set the lower limit lower than the upper limit, otherwise value "0" is
provided at the nOut_a output.
Identifier
Data type
Information/possible settings
nIn_a
INT
Input signal
Scaling: 16384 100 %
Identifier
Data type
Value/meaning
nOut_a
INT
Output signal
Scaling: 16384 100 %
Parameter Possible settings Info
C00630/3
-199.99 % 199.99 Lower limit
Lenze setting: -100.00 %
C00630/4
-199.99 % 199.99 Upper limit
Lenze setting: 100.00 %
/B/LPLWB
Q,QBD Q2XWBD
&
&
