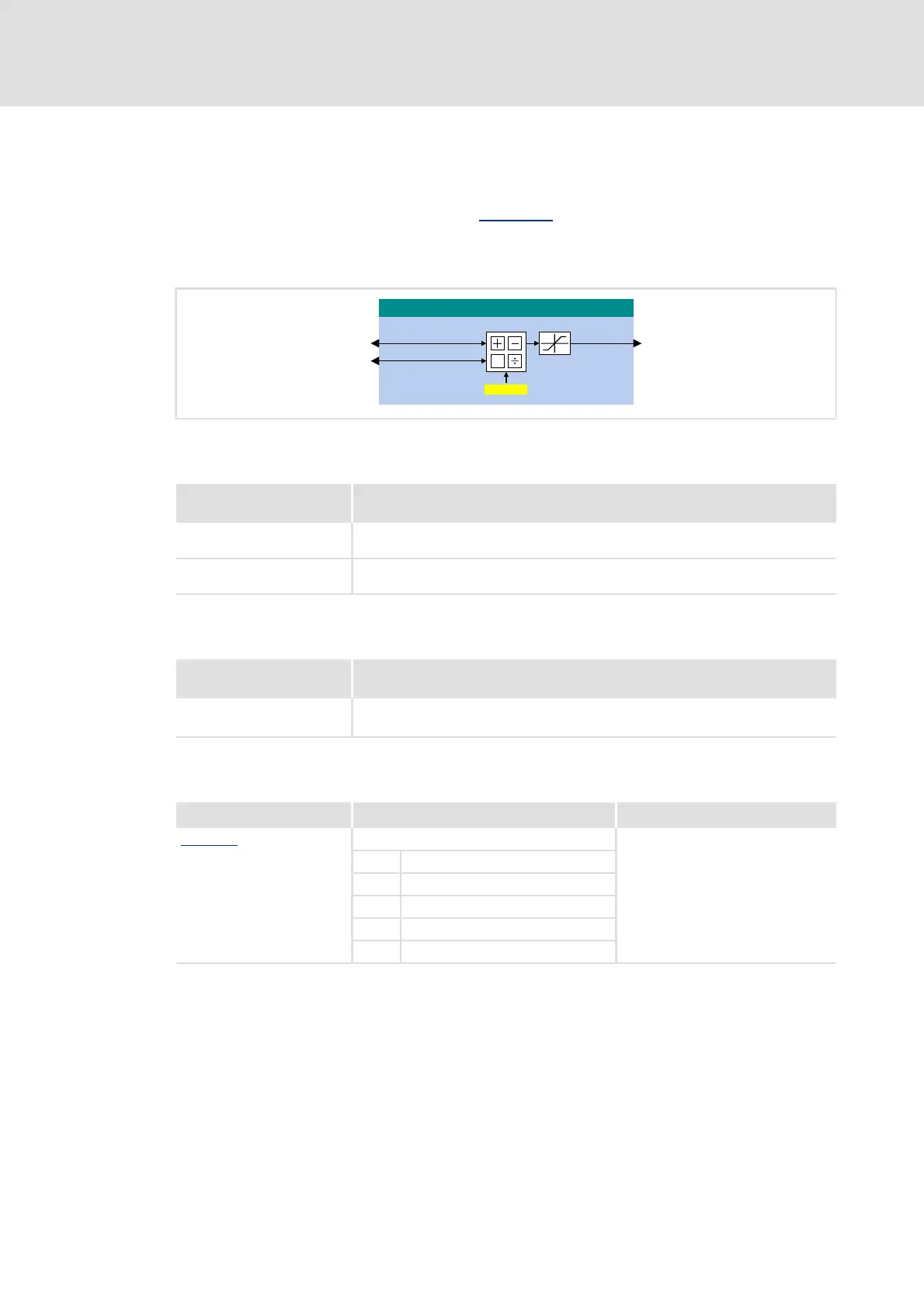

Function blocks | L_ArithmetikPhi_1
14.1.19 L_ArithmetikPhi_1
This FB can combine two angle signals arithmetically.
The arithmetic function is selected in C01010/1
.
All internal intermediate results and the value provided at the dnOut_p output are
internally limited to ±2147483647 (±2
31
-1).
Inputs
Outputs
Parameter
Identifier
Data type
Information/possible settings
dnIn1_p
DINT
Input signal 1
dnIn2_p
DINT
Input signal 2
Identifier
Data type
Value/meaning
dnOut_p
DINT
Output signal
• Internal limitation to ±2147483647
Parameter Possible settings Info
C01010/1
Function selection
0 dnOut_p = dnIn1_p
1 dnOut_p = dnIn1_p + dnIn2_p
2 dnOut_p = dnIn1_p - dnIn2_p
3 dnOut_p = dnIn1_p * dnIn2_p
4 dnOut_p = dnIn1_p / dnIn2_p
/B$ULWKPHWLN3KLB
GQ,QBS GQ2XWBS
GQ,QBS
r
&
)XQFWLRQ
