Lenze E84AVHC Series User Manual

Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 959
8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_DT1_1

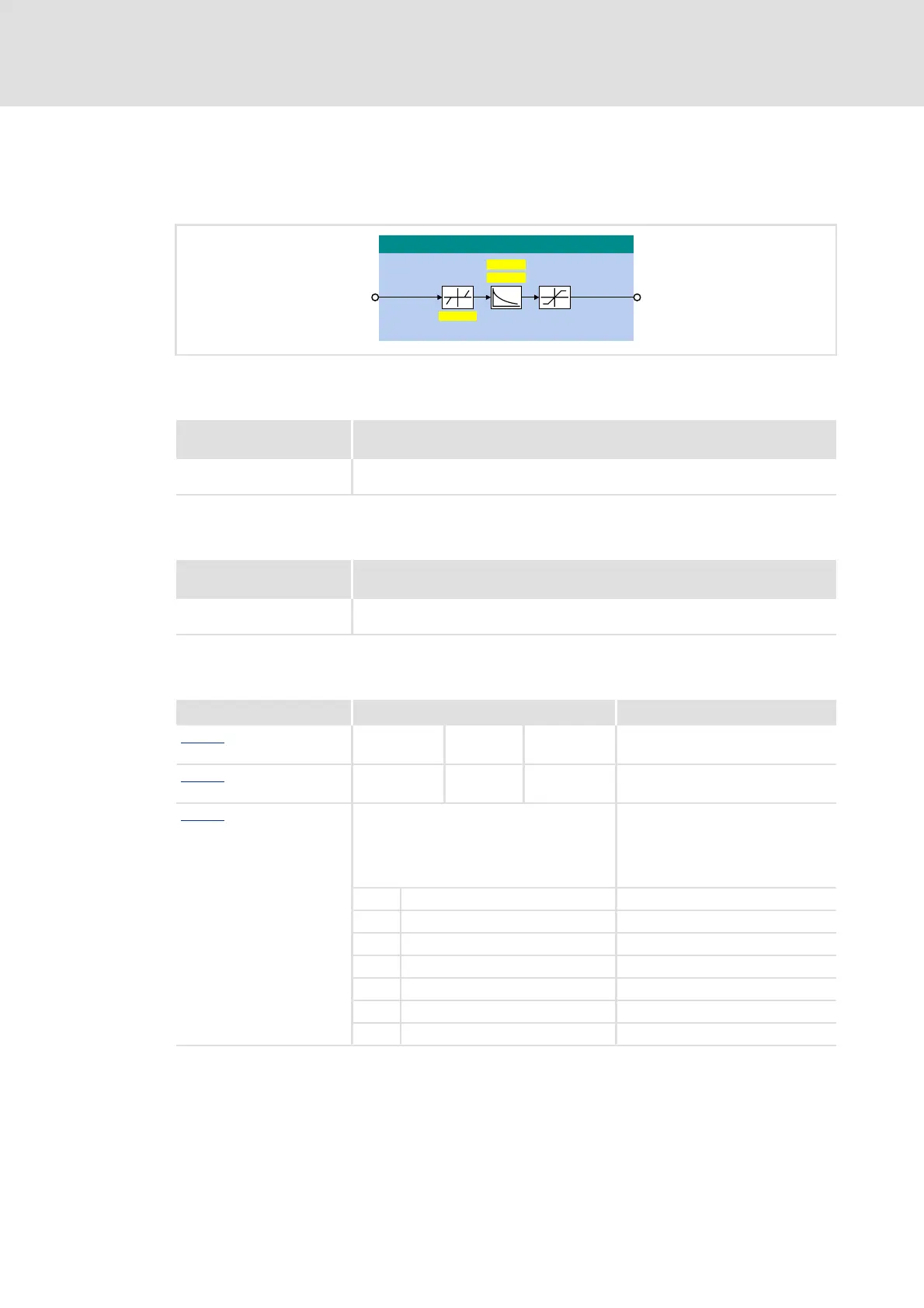

14.1.64 L_DT1_1
This FB differentiates signals. The function block can, for instance, be used to apply an
acceleration (dv/dt).
Inputs
Outputs
Parameter
Identifier
Data type
Information/possible settings
nIn_a
INT
Input signal
Identifier
Data type
Value/meaning
nOut_a
INT
Output signal
Parameter Possible settings Info
C00251
10 ms 5000 Time constant Tn
• Lenze setting: 1000 ms
C00252
-320.00 320.00 Gain factor Vp
• Lenze setting: 1.00
C00253
Note: The most significant bit determines
the sign of the value, the remaining bits
determine the numerical value.
Selection of sensitivity
• Depending on the selection, the
number of indicated higher-order
bits is evaluated.
• Lenze setting: 15 bit
1 15 bits Bit 0 ... bit 14 are evaluated
2 14 Bit Bit 0 ... bit 13 are evaluated
3 13 bits Bit 0 ... bit 12 are evaluated
4 12 bits Bit 0 ... bit 11 are evaluated
5 11 bits Bit 0 ... bit 10 are evaluated
6 10 bits Bit 0 ... bit 9 are evaluated
7 9 bits Bit 0 ... bit 8 are evaluated
/B'7B
7Q
9S
&
&
&
Q,QBD Q2XWBD
r
