8400 HighLine | Parameter setting & configuration
Commissioning
Commissioning the "Actuating drive speed" TA using the »Engineer«
46 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
3.5 Commissioning the "Actuating drive speed" TA using the »Engineer«
System constellation

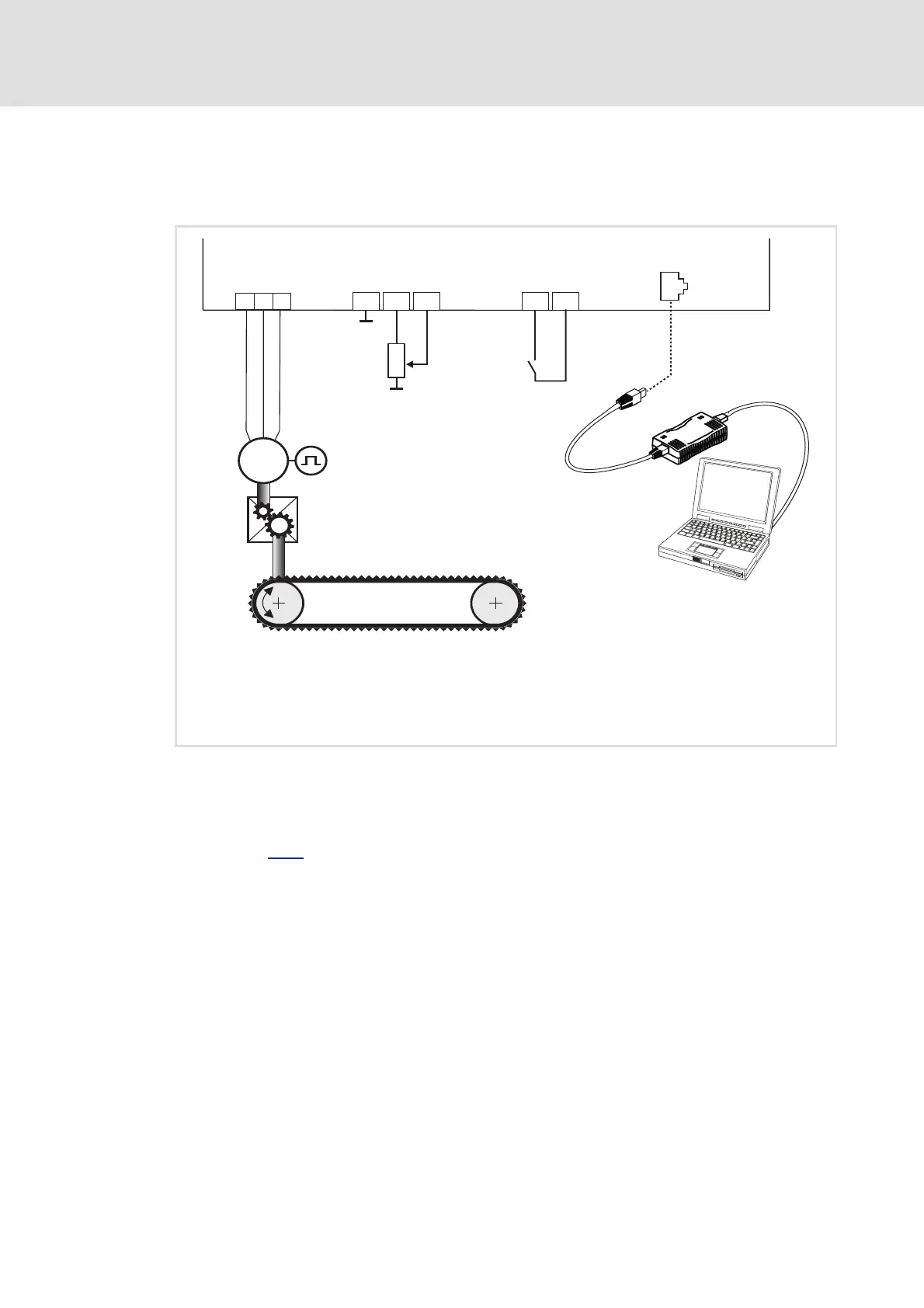

[3-2] Block diagram for wiring the commissioning example for the "Actuating drive speed" application
1. Prepare drive controller for commissioning
 Inhibit drive controller: Set X5/RFR terminal to LOW level or open contact (see block
diagram [3-2]
for wiring)
 Ensure that the mains voltage and the motor cables are wired correctly.
– Check for correct wiring of the supply feeder and the motor cable, even if motor
operation during commissioning is not intended at first.
 Connect USB diagnostic adapter.
Connections:
• X3/GA: Ground potential (GND) for analogue signals
• X3/AR: Reference voltage (10 V) for analogue signals
• X3/A1U: Input 1 for analogue signals (slider of the setpoint potentiometer R)
• X5/RFR: Controller enable (CINH)
• X6: Diagnostic interface for communication between PC and drive controller
X61
X6
V
U
W
X3
X5
X6
RFR24I
A1U
ARGA
M
3~
i
RFR
R
DIAG
8400 HighLine
