8400 HighLine | Parameter setting & configuration
Working with the FB Editor
User interface
830 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
Tip!
You can also enter any search text in the input field.
• If you click the icon, the cutout is moved to the object which contains this
search text.
• Another click on the icon leads to a new search. Thus, you can navigate
successively to all objects which contain the entered search text.
• The search text does not consider case sensitivity.
13.2.3 Level selection
Go to the Level selection list field and select the interconnection level to be displayed.
"I/O interconnection" level
This level displays only the I/O interconnection of the currently selected technology
application for a better overview.
Details of the application are masked out in this level.
The interconnection of the I/Os of the controller with the inputs and outputs of the
application in detail depends on the control mode selected in C00007
.
The parameterisation dialogs on the Application parameter tab correspond to the
application block displayed in this level.

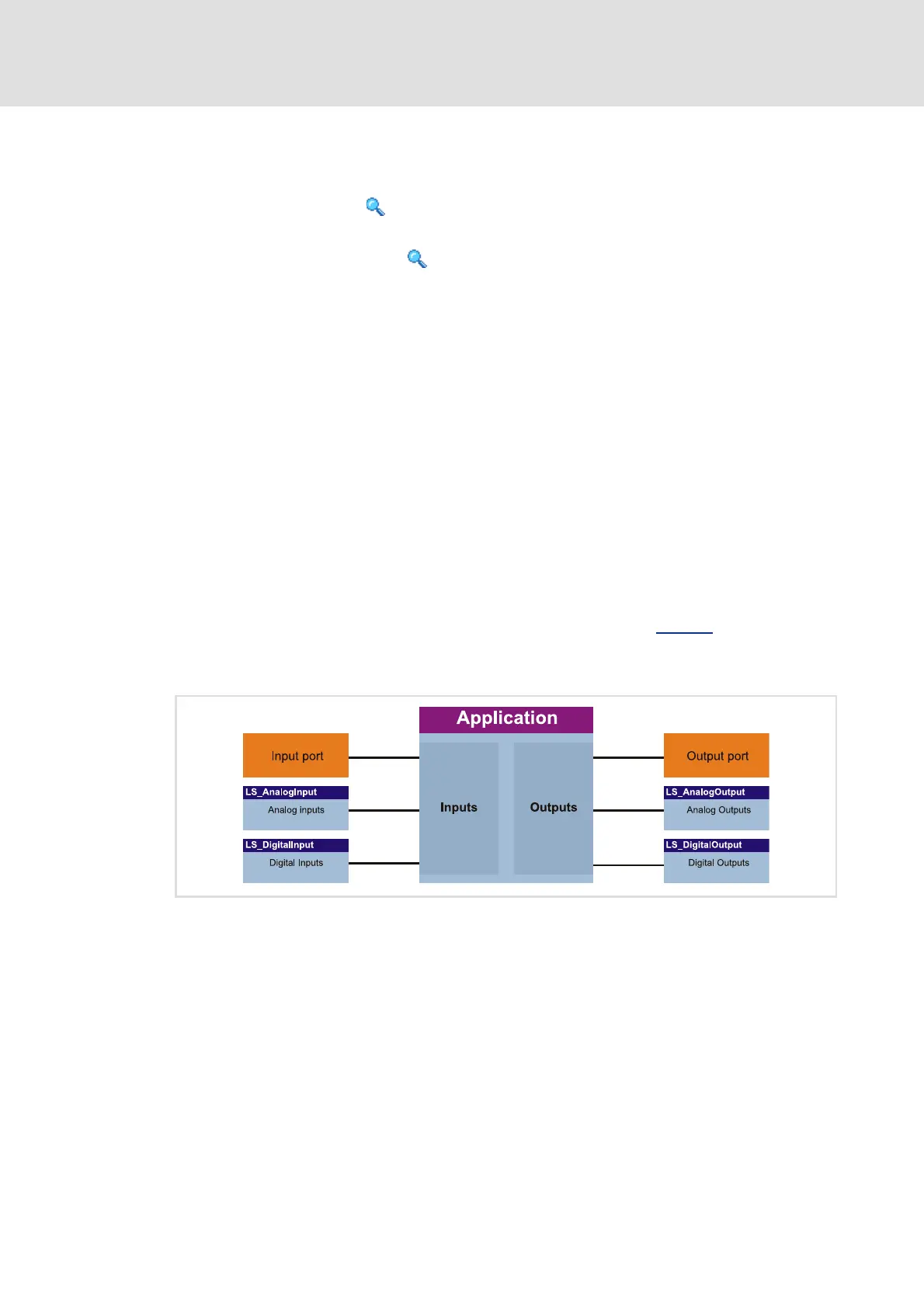

[13-5] Schematic diagram of "I/O interconnection"
