Lenze E84AVHC Series User Manual

8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_GainOffsetPhiP_2
970 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010

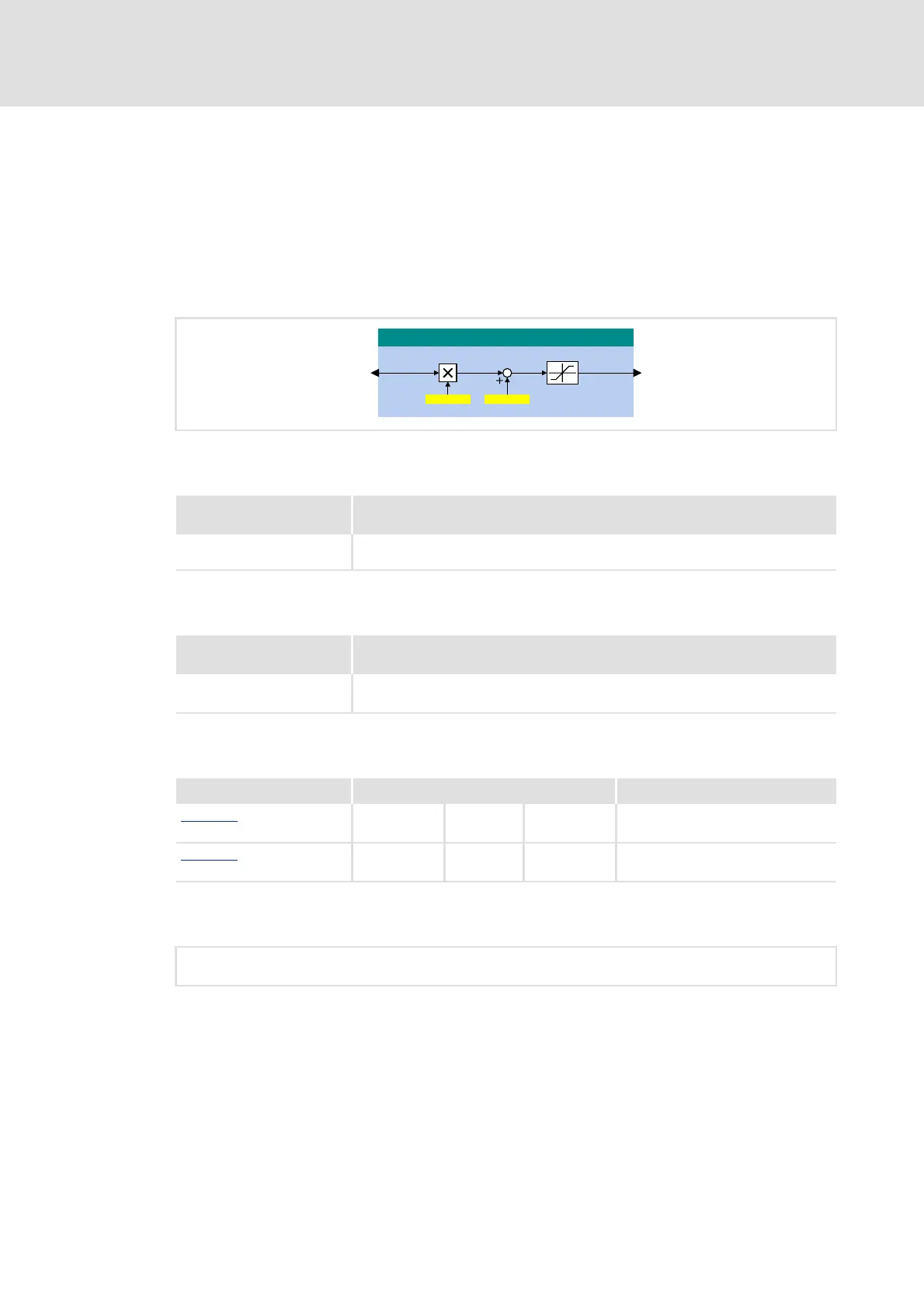

14.1.75 L_GainOffsetPhiP_2
This FB can amplify an angle signal and add an offset to it afterwards.
 The internal calculations (addition and subtraction) are carried out with 32 bits without
overflow/underflow.
 Gain and offset are selected via parameters.
 The value provided at the dnOut_p output is internally limited to ±2
31
-1.
Inputs
Outputs
Parameter
Function
Identifier
Data type
Information/possible settings
dnIn_p
DINT
Input signal
Identifier
Data type
Value/meaning
dnOut_p
DINT
Output signal
• Internal limitation to ±2
31
-1 (±2147483647)
Parameter Possible settings Info
C00678/3
-2147483647 Incr. 2147483647 Offset
• Lenze setting: 0 incr.
C00678/4
-2147483647 2147483647 Gain factor
• Lenze setting: 65536
/B*DLQ2IIVHW3KL3B
GQ,QBS GQ2XWBS
2IIVHW*DLQ
& &

r

dnOut_p dnIn_p Gain factor⋅()Offset+=
