Lenze E84AVHC Series User Manual

8400 HighLine | Parameter setting & configuration
System bus "CAN on board"
Process data transfer
518 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010

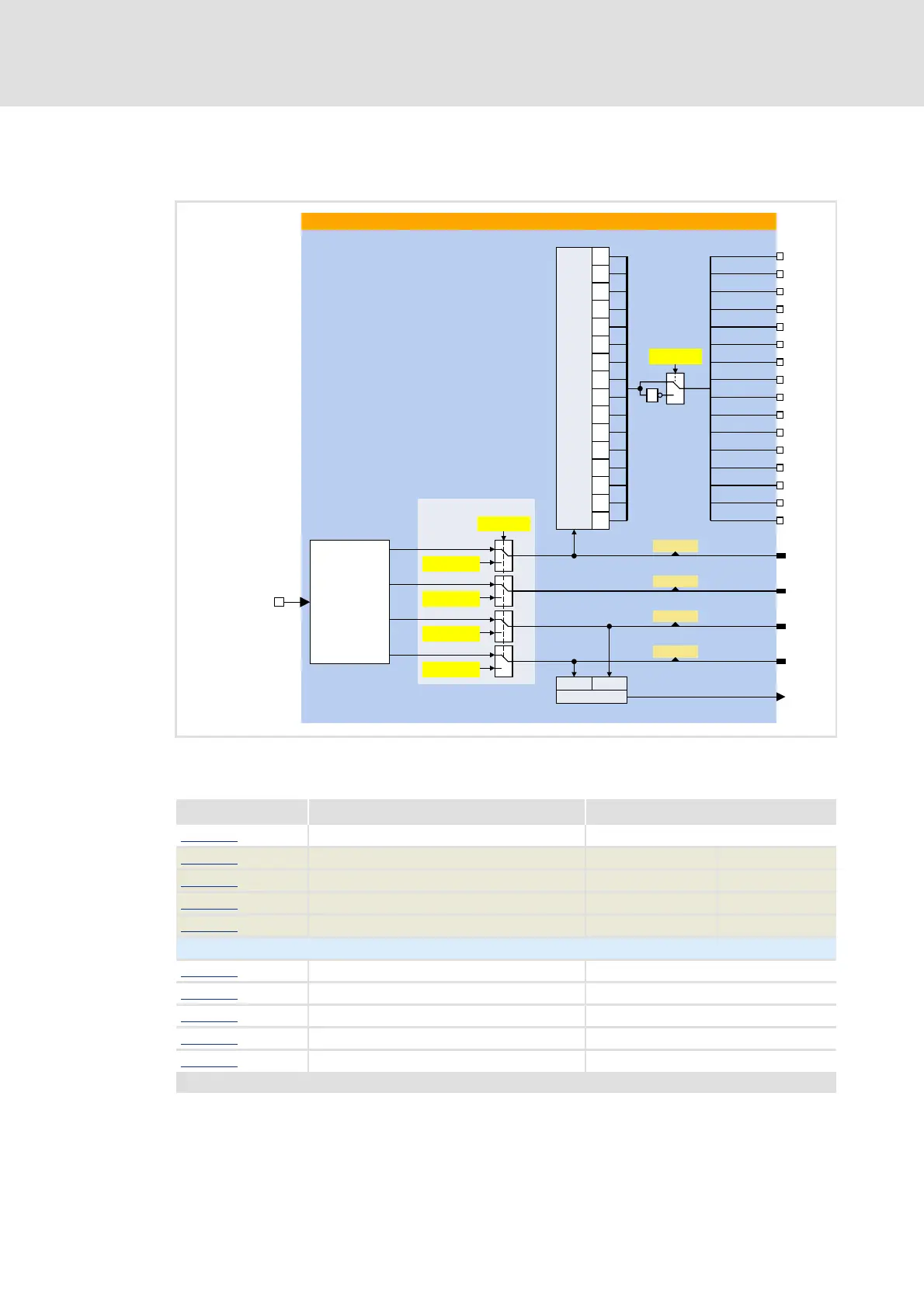

10.7.1.1 RPDO1 | Port block "LP_CanIn1"
The LP_CanIn1 port block maps process data object RPDO1 in the FB Editor.
Short overview of the parameters for LP_CanIn1:
Parameter Info Lenze setting
C00401/1 LP_CanIn1: Inversion bCtrl1_B0..15 0x0000
C00866/1 LP_CanIn1: wCtrl -
C00866/2 LP_CanIn1: wIn2 -
C00866/3 LP_CanIn1: wIn3 -
C00866/4 LP_CanIn1: wIn4 -
PDO mapping
C00408/1
LP_CanIn1: Mapping selection CanIn
C00409/1
LP_CanIn1: wCtrl MapVal 0
C00409/2
LP_CanIn1: wIn2 MapVal 0
C00409/3
LP_CanIn1: wIn3 MapVal 0
C00409/4
LP_CanIn1: wIn4 MapVal 0
Highlighted in grey = display parameter
/3B&DQ,Q
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%
E&WUOB%



















&
:25'WR%,7
Z&WUO

&
&


&


&


&

Z,Q
Z,Q
Z,Q
GQ,QBS
&
&
&
&
:25' :25'
',17
&$1
53'2
3'2PDSSLQJ
&$1EXV
efesotomasyon.com - Lenze

Lenze E84AVHC Series Specifications

General

Product Category	Inverter Drive
Series	E84AVHC
Frequency	50/60 Hz
Protection Class	IP20
Output Voltage	0 - Input Voltage
Control Method	V/f control
Communication	CANopen, Ethernet
Protection	Overcurrent, overvoltage, undervoltage, short circuit
Relative Humidity	< 95 %, no condensation
Cooling Method	Fan cooling
