8.8.2.2 Profile entry

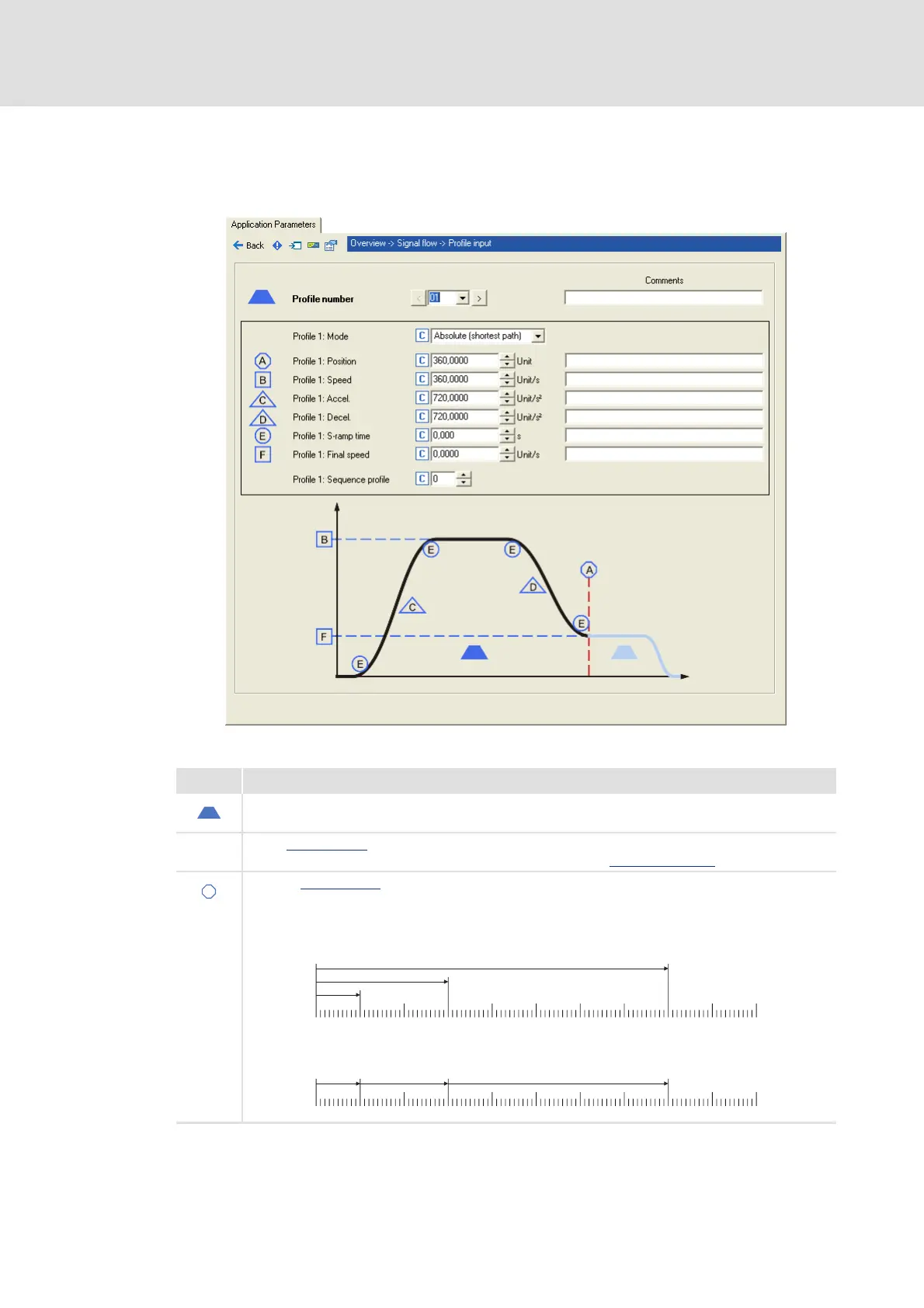

In the »Engineer«, the following parameterisation dialog is available for setting the profile
parameters:
A profile is described by the following profile parameters:
Symbol Profile parameter
(Standard) profile
Profile data set (profile numbers 1 ... 15), in which the profile data are stored.
Mode (C01300/1...15
)
Selection of the way in which positioning is to be carried out. Positioning modes
( 421)
Position (C01301/1...15
)
Target position or distance to be traversed.
When the position is indicated, a distinction is made between absolute position and relative position:
• An absolute position always indicates the distance to the defined zero position:
Absolute position = Target position
• A relative position indicates the distance to the starting position (current position):
Relative position = Target position - Starting position
A
10 20 30 40 50 60 70 80 90 100
10
30
80
P1
P2
P3
0
10 20 30 40 50 60 70 80 90 100
10
20 50
P3P2P1
