8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_ComparePhi_1
908 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
14.1.27.3 Function 3: dnIn1 < dnIn2
This function serves, for instance, to implement the comparison "actual speed is lower
than a limit value" (n
act
< n
x
) for one direction of rotation.

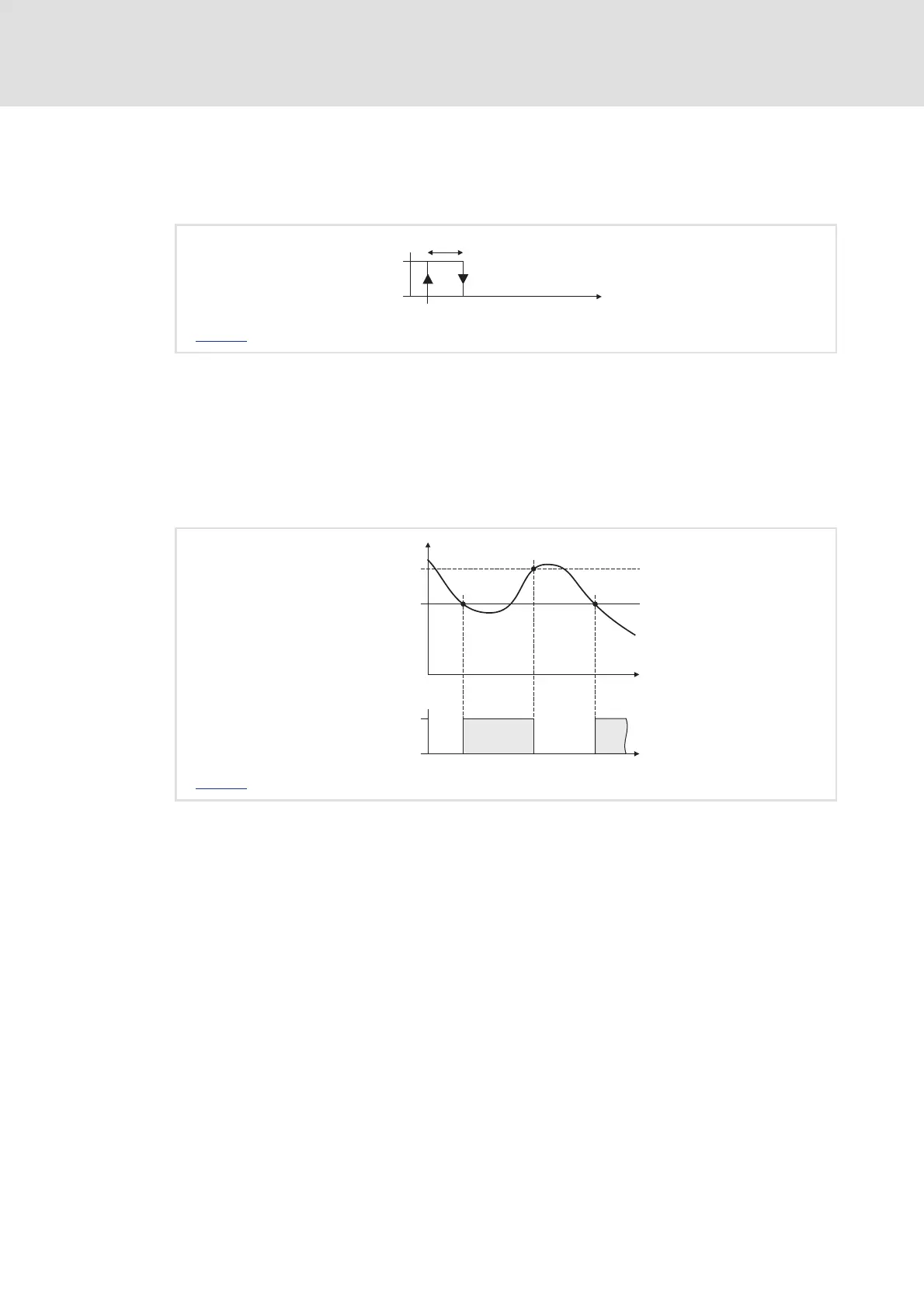

[14-16] Function 3: Switching performance
Functional sequence
1. If the value at dnIn1_p falls below the value at dnIn2_p, bOut changes from FALSE to
TRUE.
2. Only if the signal at dnIn1_p exceeds the value of dnIn2_p - hysteresis again, bOut
changes back from TRUE to FALSE.
[14-17] Function 3: Example
n C001671: Hysteresis
TRUE
FALSE
bOut
dnIn2_p
dnIn1_p
n C001671: Hysteresis
dnIn1_p
dnIn2_p
TRUE
FALSE
bOut
t
t
