Firmware 05.00 - DMS 4.2 EN - 02/2010 L 239
8400 HighLine | Parameter setting & configuration
I/O terminals
Analog terminals
6.3.1.1 Signal adaptation by means of characteristic
This function extension is only available from version 04.00.00!
According to the illustration below, an individual characteristic can be parameterised for
the analog inputs via the subcodes of C00010
and C00020 to provide different slopes and
a dead band. Here, the input signal corresponds to the X axis and the output signal
corresponds to the Y axis:

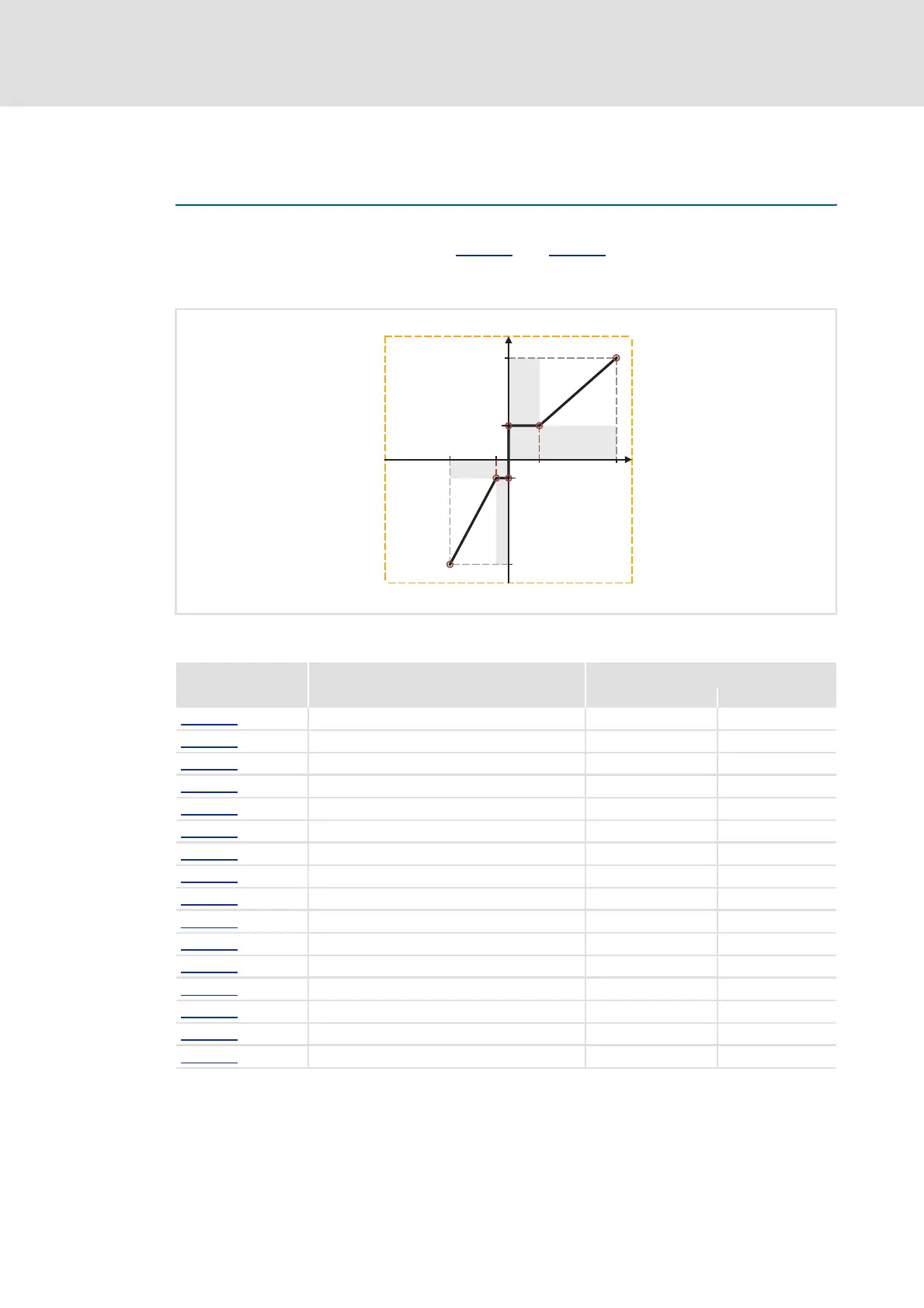

[6-2] Characteristic for analog inputs
In the »Engineer«, there is a parameterising dialog for entering the characteristic. This
dialog also displays the set characteristic graphically.
199.99 %
y
max
-y
max
-x
max
x
max
y
min
-y
min
199.99 %
-199.99 %
-199.99 %
Parameter Info Lenze setting
Value Unit
C00010/1 n AIN1: (+y0) = min 0.00 %
C00010/2
o AIN1: (+x0) = Dead band 1.00 %
C00010/3 p AIN1: (-y0) = (-min) 0.00 %
C00010/4
q AIN1: (-x0) = (-Dead band) 1.00 %
C00010/5
r AIN1: (+ymax) 199.99 %
C00010/6 s AIN1: (+xmax) 199.99 %
C00010/7
t AIN1: (-ymax) 199.99 %
C00010/8
u AIN1: (-xmax) 199.99 %
C00020/1
n AIN2: (+y0) = min 0.00 %
C00020/2
o AIN2: (+x0) = Dead band 1.00 %
C00020/3
p AIN2: (-y0) = (-min) 0.00 %
C00020/4
q AIN2: (-x0) = (-Dead band) 1.00 %
C00020/5
r AIN2: (+ymax) 199.99 %
C00020/6
s AIN2: (+xmax) 199.99 %
C00020/7
t AIN2: (-ymax) 199.99 %
C00020/8
u AIN2: (-xmax) 199.99 %
