8400 HighLine | Parameter setting & configuration
Diagnostics & error management
LED status displays
454 L Firmware 05.00 - DMS 4.2 EN - 02/2010

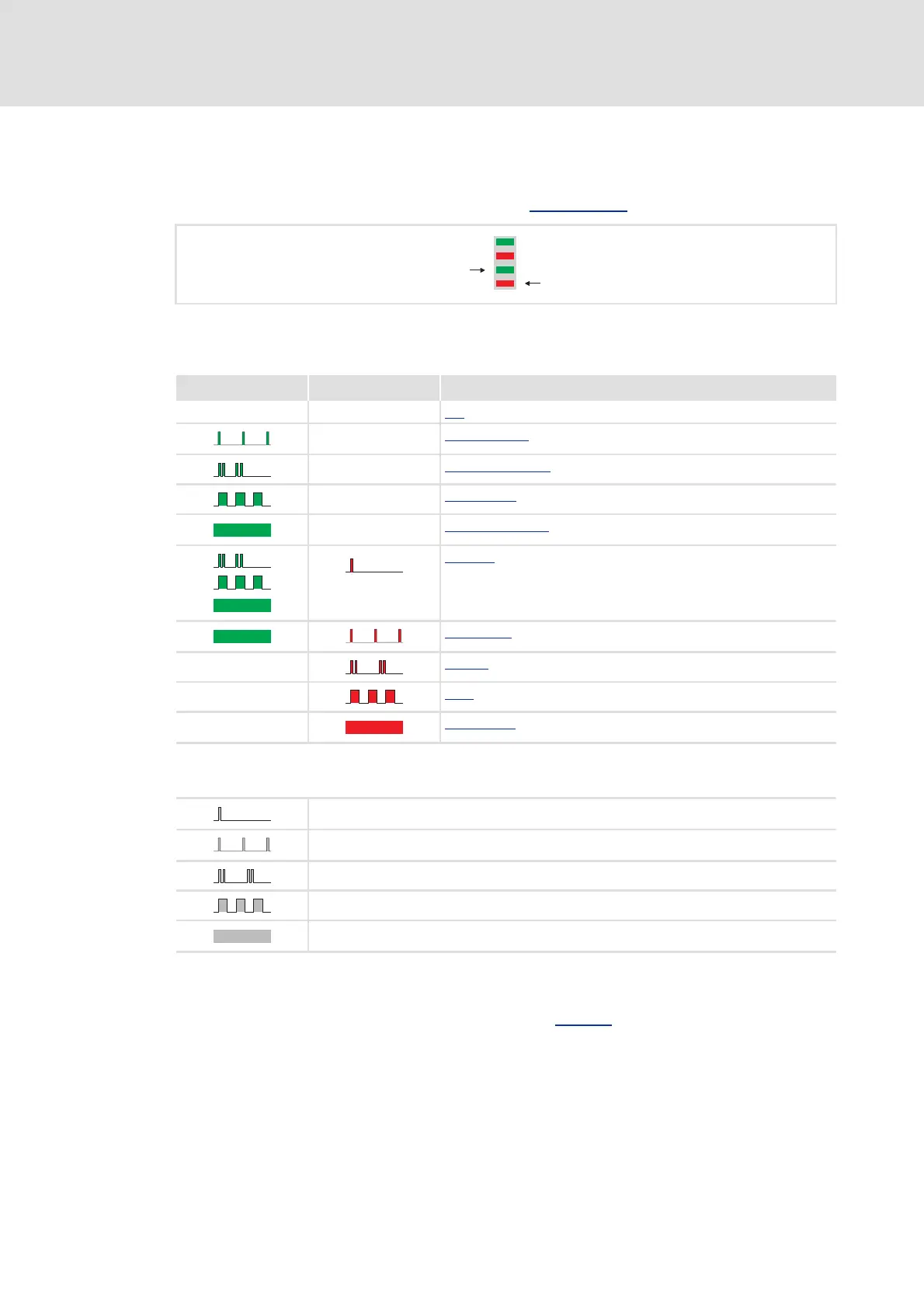

9.2.1 LED status displays of the device state
The control of the two "DRIVE READY" and "DRIVE ERROR" LED in the lower part on the front
of the controller depends on the device state. Device states
( 76)
[9-2] DRIVE READY and DRIVE ERROR LED status displays
The meaning can be seen from the table below:
Tip!
The current device state is also displayed in C00137
.
DRIVE READY
DRIVEERROR
DRIVE READY DRIVE ERROR Status
Off Off Init
Off SafeTorqueOff
Off ReadyToSwitchON
Off SwitchedON
Off OperationEnabled
Warning
The controller is ready to switch on, switched on or the operation is
enabled and a warning is indicated.
TroubleQSP
Off Trouble
Off Fault
Off SystemFault
Legend
The symbols used for indicating the LED states have the following meaning:
LED is flashing once approx. every 3 seconds (slow flash)
LED is flashing once approx. every 1.25 seconds (flash)
LED is flashing twice approx. every 1.25 seconds (double flash)
LED is blinking every second
LED is permanently on
