Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 41
8400 HighLine | Parameter setting & configuration
Commissioning
Quick commissioning

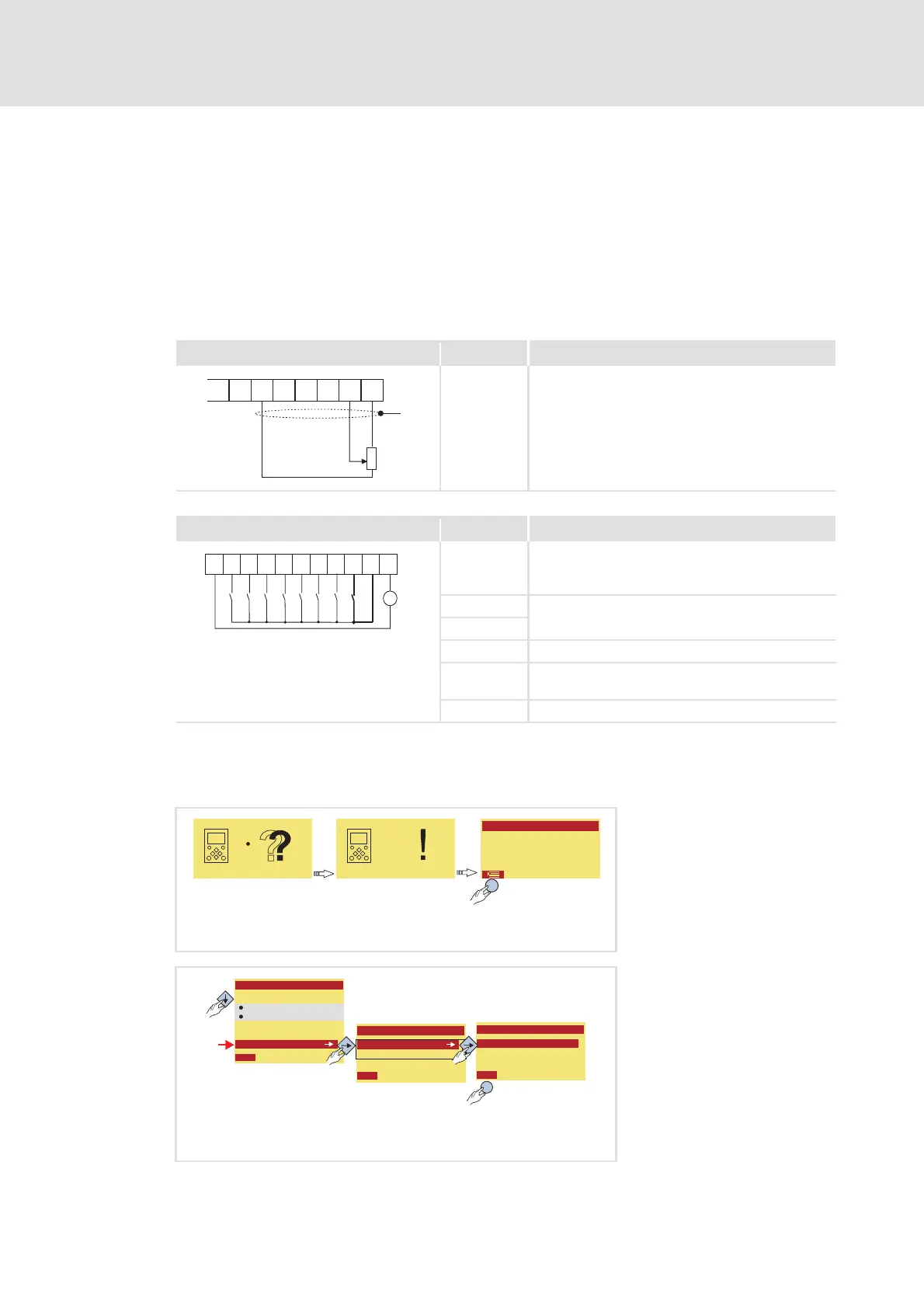

3.3.2 Terminal control
Commissioning steps
1. Wire the power connections
– Refer to the mounting instructions supplied with the drive controller to find help on
how to correctly design the power connections to match the requirements of your
device.
2. Wire the control connections
3. If you are sure that the drive controller is in its as-delivered condition (Lenze setting),
you can skip the following commissioning step. Otherwise, restore the Lenze settings.
We recommend that you use the keypad for this.
Analog inputs at X3 Assignment Terminal control
A1U Setpoint selection
10 V (= 100 %):
1500 rpm (for 4-pole motor)
Wiring of the digital inputs at X5 Assignment Terminal control
DI1 ... DI7: All active = High
Bold type: Minimum wiring needed for
operation
RFR • Controller enabling: RFR = High
•Error resetting:
RFR = HIGHÌLOW (edge-controlled)
DI1 Fixed frequency 1 ... fixed frequency 3, see table
below
DI2
DI3 DCB
DI4 Direction of rotation counter-clockwise/clockwise
(CCW/CW)
DI5 ... DI7 No function
After the keypad has been plugged in
or the drive controller has been
switched on with the keypad
plugged in, a connection is first
established between the keypad and
the drive controller.
• The process is completed if code
C00051 appears in the display.
• Then press the left function key.
• Scroll to the bottom from the
"User menu" with the button to
the "Quick commissioning" menu
• Click on right-hand button
• Select "Terminals" menu
• Click on right-hand button
• Code 00002/1:
–Parameterise "Edit" using the
left function key
–Select value "1" ---> On/Start
and confirm with "OK" function
key on right
O1U
GA
A1IA2I
A1UA2U
AR
1k
...
10k
W
W
0...10 V
"
24E
DI4
DI3
DI2 DI1
RFR
GI 24I
X5
+
_
DC 24 V
DI7
DI5
DI6
MCTRL: Act. speed val.
C00051
0 rpm
SAVE
Par1 8400 HighLineC
User - Menu
Logbook
Go to param
Quick commissioning
SAVE
Par1 Quick commissioning
Terminals
Keypad
EDIT
Load Lenze setting
C00002/1
